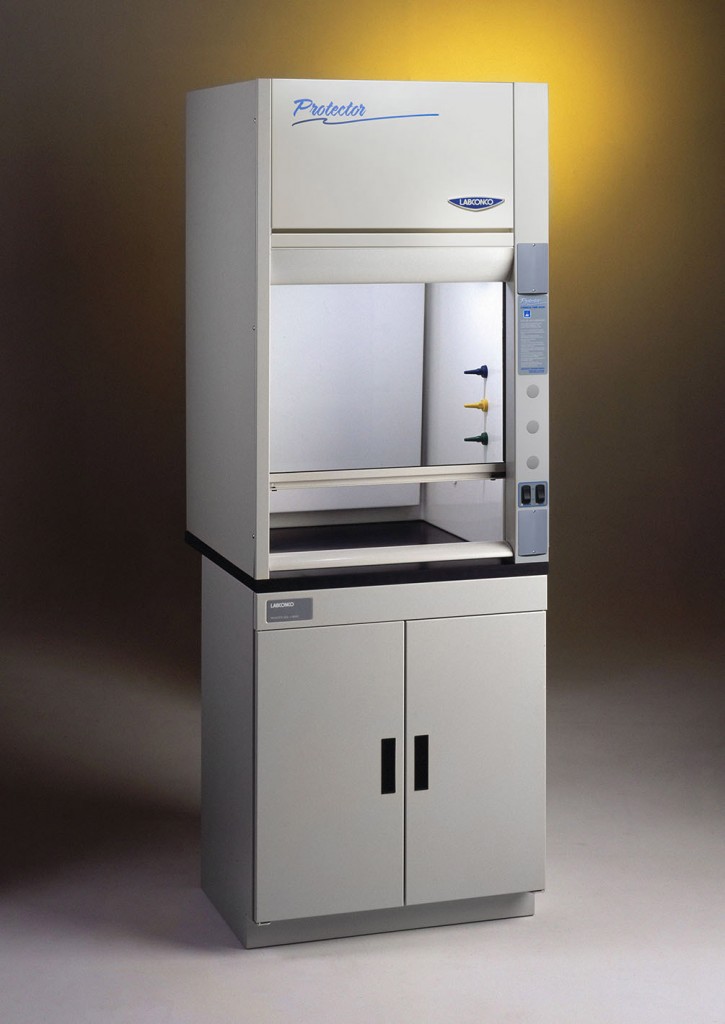

Compact Fiberglass 30 Laboratory Hoods
Compact Fiberglass 30 Laboratory Hoods are designed for research, educational and clinical applications requiring small working space and efficient fume removal. These hoods feature a corrosion-resistant, one-piece molded fiberglass liner.
Key Features
- By-pass airflow design
- Pivoting air foil
- Durable glacier white powder-coated steel exterior
- One-piece molded fiberglass interior and pre-set baffle with flame spread index less than 25 per ASTM E84
- 3/16" thick tempered safety glass vertical-rising sash with powder-coated aluminum handle
- Right side fixture panel factory-prepared for up to three service fixtures, one electrical duplex and one airflow monitor (kits are sold separately)
- 6.7" ID fiberglass exhaust connection
Standards Conformance & Regulations
- CFR 29, Part 1910
- SEFA 1
- NFPA 45
- ASHRAE 110
- ANSI Z9.5*
- UL 61010-1
- CAN/CSA C22.2 No. 61010.1
- UL 1805
- SEFA 8
- CE Conformity Marking (230V models)**
*Does not apply to models with built-in blowers.
**Contact manufacturer for specific models.
WARNING: Cancer - P65Warnings.ca.gov (California only)
Model Configurations
Models 3030000 and 3030001 feature:
- Built-in corrosion-resistant, direct drive exhaust blower capable of overcoming a maximum external static pressure of 0.12" H2O at 310 CFM (100 fpm)
- Pre-wired 100 watt, vapor-proof LED lighting, light and blower switches
Models 3030002 and 3030003:
- Designed for use with remote blower (not included)
- Static pressure loss does not exceed 0.14" H2O at 100 fpm (310 CFM)
- Pre-wired 100 watt, vapor-proof LED lighting, light and blower switches
Models 3030004 and 3030005 feature:
- Built-in corrosion-resistant, explosion-proof, direct drive exhaust blower capable of overcoming a maximum external static pressure of 0.12" H2O at 310 CFM (100 fpm)
- Furnished without light, switches or wiring. Wiring must conform to local codes (Explosion-proof Light Fixture Kit is available)
Specifications & Ordering Information
| Catalog Number |
Built-in Blower |
Equivalent Resistance†† (6" dia.) |
Equivalent Resistance†† (8" dia.) |
Electrical Requirements |
Vapor-Proof Lamp |
Dimensions (w x d x h) |
Shipping Weight |
| 3030000 |
1/10 HP, Std. |
20' |
80' |
115V, 60 Hz |
100 watt |
30.0" x 30.2" x 48.0" (76.2 x 76.7 x 121.9 cm) |
230 lbs. (104 kg) |
| 3030001† |
1/3 HP, Std. |
20' |
80' |
230V, 50 Hz |
100 watt |
30.0" x 30.2" x 52.0" (76.2 x 76.7 x 132.1 cm) |
230 lbs. (104 kg) |
| 3030002 |
None |
— |
— |
115V, 60 Hz |
100 watt |
30.0" x 30.2" x 48.0" (76.2 x 76.7 x 121.9 cm) |
210 lbs. (95 kg) |
| 3030003† |
None |
— |
— |
230V, 50 Hz |
100 watt |
30.0" x 30.2" x 48.0" (76.2 x 76.7 x 121.9 cm) |
210 lbs. (95 kg) |
| 3030004 |
1/4 HP, EP |
20' |
80' |
115V, 60 Hz |
None |
30.0" x 30.2" x 54.0" (76.2 x 76.7 x 137.2 cm) |
240 lbs. (109 kg) |
| 3030005† |
1/3 HP, EP |
20' |
80' |
230V, 50 Hz |
None |
30.0" x 30.2" x 54.0" (76.2 x 76.7 x 137.2 cm) |
240 lbs. (109 kg) |
EP = Explosion-proof
†International electrical configuration
††Maximum length of straight duct to achieve 100 fpm face velocity
Required Accessories (Not Included)
- Ductwork
- Work surface
- Base cabinet or stand
Optional Accessories for On-Site Installation
Standard Service Fixture Kits
Include one remotely-controlled service fixture with 0.25" diameter valve and tubing, color-coded fixture knob and color-coded hose connector. For mounting on the right side fixture panel. Shipping weight 4.0 lbs. (1.8 kg)
| Catalog Number |
Kit |
Tubing |
Valve |
Knob/Connector Color |
Max. Flow Rate |
Max. Working Pressure* |
| 2832600 |
Cold Water (CW) |
Copper |
Brass |
Green |
3.5 GPM (13.2 LPM) |
40 psi |
| 2832601 |
Hot Water (HW) |
Copper |
Brass |
Red |
3.5 GPM (13.2 LPM) |
40 psi |
| 2832602 |
Deionized/Distilled Water (DW) |
Stainless Steel |
Nickel-Plated & Stainless Steel |
White |
3.5 GPM (13.2 LPM) |
40 psi |
| 2832603 |
Vacuum (VAC) |
Copper |
Brass |
Yellow |
8.6 CFM |
14.7 psi |
| 2832604 |
Air (AIR) |
Copper |
Brass |
Orange |
23.7 CFM |
40 psi |
| 2832605 |
Gas (GAS) |
Brass |
Brass |
Blue |
29.0 CFM (441 BTU/sec) |
40 psi |
| 2832606 |
Nitrogen (NIT) |
Copper |
Brass |
Brown |
24.1 CFM |
40 psi |
| 2832607 |
Argon (ARG) |
Copper |
Brass |
Gray |
20.2 CFM |
40 psi |
| 2832608 |
Steam (STM) |
Copper |
Brass |
Black |
0.5 LBM/min |
40 psi |
*Maximum allowable pressure is 200 psi with a working pressure of 40 psi.
GPM = gallons per minute, LPM = liters per minute, CFM = cubic feet per minute, BTU/sec = British thermal unit per second, LBM/min = pounds mass per minute
Duplex Electrical Receptacle Kits
Include duplex electrical receptacle, wiring, junction box and receptacle cover plate. For mounting on the lower right side fixture panel.
| Catalog Number |
Description |
Shipping Weight |
| 2834800 |
115V, 20A AC |
4.0 lbs. (1.8 kg) |
| 2834801 |
115V, 20A AC, GFCI |
4.0 lbs. (1.8 kg) |
Guardian™ 500 Airflow Monitor Field Installation Kits
Audible/visual alarm alerts user to low face velocity. For installation in a factory-prepared cutout on upper portion of right side fixture panel. Shipping weight 6.0 lbs. (2.7 kg)
| Catalog Number |
Description |
| 9743201 |
For 115V, 60 Hz operation |
| 9743205** |
For 230V, 50 Hz operation |
**International electrical configuration
Guardian™ Digital Airflow Monitor Kits
LCD displays average face velocity. Audible/visual alarm alerts user to low or high face velocity. For installation in a factory-prepared cutout on upper portion of right side fixture panel. Shipping weight 6.0 lbs. (2.7 kg)
| Catalog Number |
Description |
| 9743213 |
For 115V, 60 Hz operation |
| 9743214** |
For 230V, 50 Hz operation |
**International electrical configuration
Explosion-Proof Light Fixture Kit
Catalog Number 4892900. For mounting on Fiberglass 30 Hood 3030004 or 3030005. Includes explosion-proof incandescent/LED light fixture, mounting hardware and instructions. 13.0" h x 7.0" diameter (33.0 x 17.8 cm). 150 Watt maximum. Suitable for Class I, Group C & D and Class II, Group E & G room classifications per National Fire Protection Association (NFPA) 70. Bulb and electrical wiring are not included. Shipping weight 11 lbs. (5 kg)
Dimensional Data
Model 3030000 (with Built-in Blower)
- Overall: 30.0" w x 30.2" d x 48.0" h (76.2 x 76.6 x 121.9 cm)
- Sash Opening: 20.0" (50.8 cm)
- Viewing Height: 28.0" (71.1 cm)
- Inside Width: 25.0" (63.5 cm)
- Interior Height: 36.0" (91.4 cm)
- Sash Frame to Baffle: 22.7" (57.6 cm)
- Exhaust Collar: 6.7" (17.0 cm) ID
Model 3030001 (with Built
