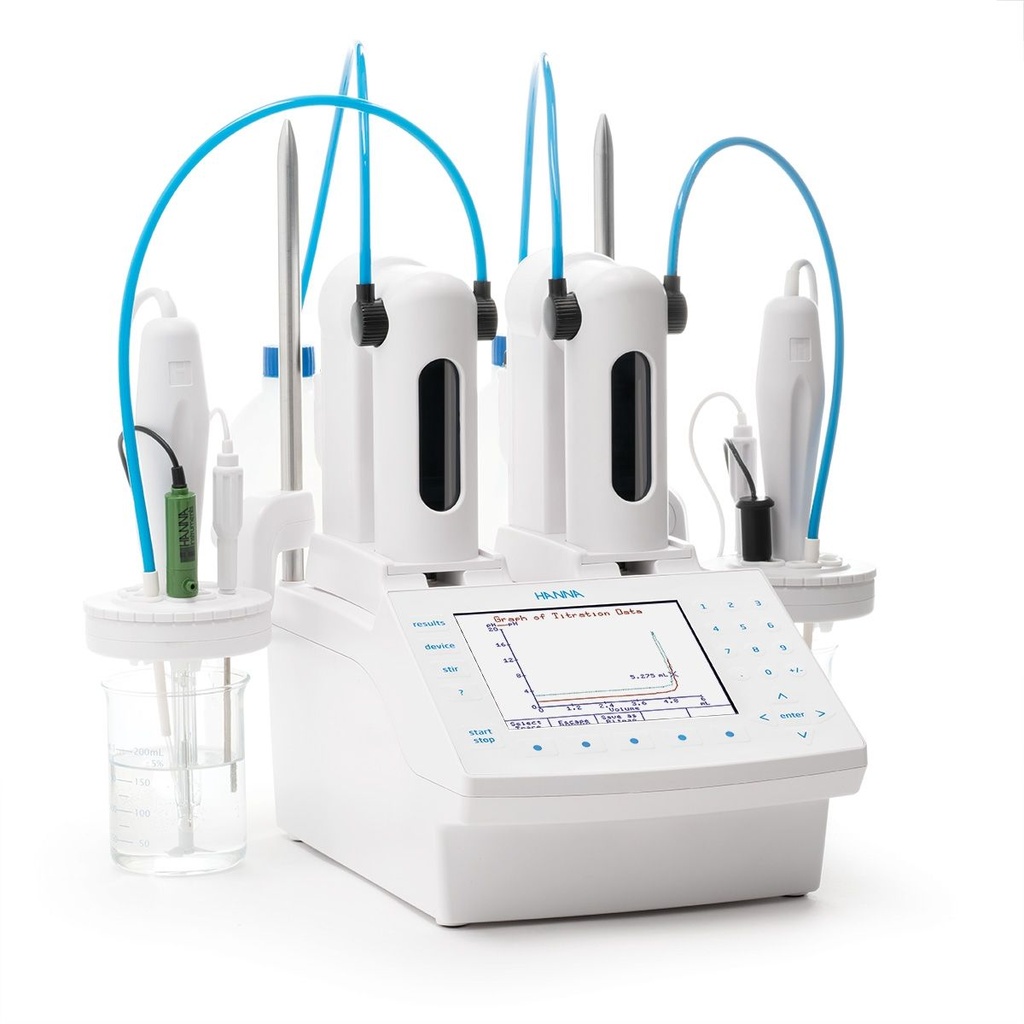

HI932 Automatic Potentiometric Titration System
The HI932 is an automatic potentiometric titration system designed for pH, mV, and ISE measurements. This compact system features a redesigned electrode holder, integrated peristaltic pumps, and support for multiple titration types. The HI932 combines advanced titration capabilities with direct measurement functionality for versatile laboratory applications.
Key Features
Compact and Improved Design
- Takes up half the lab space compared to the HI900 family
- Redesigned electrode holder with spring-loaded actuator for quick height adjustment
- Space-saving geometry allows for sample sizes less than 50 mL
- Support rods mount directly to the titrator — no need for special mounting hardware
- Integrated peristaltic pumps add reagents automatically before every titration
- Sealed burette well on the bottom to catch drips and spills
Titrator Capabilities
- Dynamic titrant dosing relates titrant volume to mV response for timely and accurate results
- Equivalence endpoint detection identifies greatest mV response relative to titrant volume
- Signal stability timing monitors mV response stabilization before next dose
- Multiple equivalence point detection during one titration
- Method sequencing allows linking of two methods for multiple analyses on same sample
- Direct measurement functionality as high accuracy pH, ORP, and ion selective meter
Supported Titration Types
- Acid/base
- Redox (ORP)
- Complexometric
- Precipitation
- Non-aqueous
- Argentometric
- Ion selective titrations
- Back titrations
- Titre determinations
Burettes and Dosing System
- Exchangeable burette system with Clip-Lock™ feature for quick titrant exchange
- Multiple burette sizes: 5 mL, 10 mL, 25 mL, or 50 mL
- Ground glass syringe construction with chemically resistant PTFE plunger
- 40,000 step piston driven precision dosing pump for highly accurate volumes
- Automatic reagent addition via peristaltic pump or second burette
Interface and Display
- 5.7" backlit color LCD screen (320 x 240 pixel)
- Displays chosen titration method, results, units, titration volume, temperature, and mV or pH values
- Real-time titration curves displayed during each titration
- Customizable titration reports with data storage options
- Titration graphs can be viewed on-screen or saved as images and transferred with reports
Methods of Analysis
- Stores up to 100 user-defined or standard titration and direct measurement methods
- Fully customizable titration methods
- Market specific methods packs available for food, beverage, dairy, wine, and more
- Adaptable standard methods from ISO, ASTM, AOAC, AOCS, EPA, and more
- Methods can be modified and optimized based on application and user requirements
Data Management
- Data storage for up to 100 titration and pH/mV/ISE reports
- Transfer data via USB
- Flexible GLP management records all necessary Good Laboratory Practice information with each sample
- Instrumentation data storage and printing capabilities
Connectivity and Functionality
- Multifunctional operation as titrator, pH meter, mV/ORP meter, and ISE meter
- Support for two analog boards allowing connection of up to two electrodes, two burettes, and two stirrers simultaneously
- Compatible with HI922 Autosampler featuring 16 or 18 sample tray options
- Automatic tray identification and beaker detection with Autosampler
- Real-time analysis and sequencing progress visible on display
- USB cable and USB flash drive included with PC software
Specifications
| Parameter |
Specification |
| pH |
| Range |
-2.0 to 20.0 pH; -2.00 to 20.00 pH; -2.000 to 20.000 pH |
| Resolution |
0.1; 0.01; 0.001 pH |
| Accuracy (@25°C/77°F) |
±0.001 pH |
| pH Calibration |
up to five-point calibration, eight standard buffers and five custom buffers |
| mV |
| Range |
-2000.0 to 2000.0 mV |
| Resolution |
0.1 mV |
| Accuracy (@25°C/77°F) |
±0.1 mV |
| mV Calibration |
single point offset |
| ISE |
| Range |
1•10-6 to 9.99•1010 |
| Resolution |
1; 0.1; 0.01 |
| Accuracy (@25°C/77°F) |
±0.5% monovalent; ±1% divalent |
| ISE Calibration |
up to five-point calibration, seven standard solutions and five user-defined standards |
| Temperature |
| Range |
-5.0 to 105.0°C; 23.0 to 221.0°F; 268.2 to 378.2 K |
| Resolution |
0.1°C; 0.1°F; 0.1K |
| Accuracy (@25°C/77°F) |
±0.1°C; ±0.2°F; ±0.1K, excluding probe error |
| Additional Specifications |
| Analog Board(s) Capability |
2 |
| Dosing Pump Capability |
2 |
| Burette Included |
1 (25 mL) |
| Burette Size Capability |
5, 10, 25 and 50 mL |
| Burette Resolution |
1/40000 |
| Display Resolution |
0.001 mL |
| Dosing Accuracy |
±0.1% of full burette volume |
| Display |
5.7" (320 x 240 pixel) backlit color LCD |
| GLP Conformity |
instrumentation data storage and printing capabilities |
| Linked Methods |
yes |
| Back Titrations |
yes |
| HI921 Compatible |
yes |
| Power |
100-240 VAC
"-01" models, US plug (type A)
"-02" models, European plug (type C) |
Ordering Information
HI932C1-01 and HI932C1-02 includes titrator with one analog board.
HI932C2-01 and HI932C2-02 includes titrator with two analog boards.
All models include: overhead propeller stirrer with stand, 25 mL glass burette, dosing pump, temperature sensor, USB cable, USB flash drive and PC software.
Note: Each Analog Board Provides: (1) BNC (pH/mV/ISE) Input, (1) Reference Input, (1) Temperature Input, (1) Stirrer Input
Accessories
| Model Number |
Description |
| HI930101 |
dosing pump with peristaltic pump |
| HI930100 |
dosing pump |
| HI930150 |
50 mL burette assembly (includes syringe, aspiration, and dispensing tubes) |
| HI930125 |
25 mL burette assembly (includes syringe, aspiration, and dispensing tubes) |
| HI930110 |
10 mL burette assembly (includes syringe, aspiration, and dispensing tubes) |
| HI930105 |
5 mL burette assembly (includes syringe, aspiration, and dispensing tubes) |
