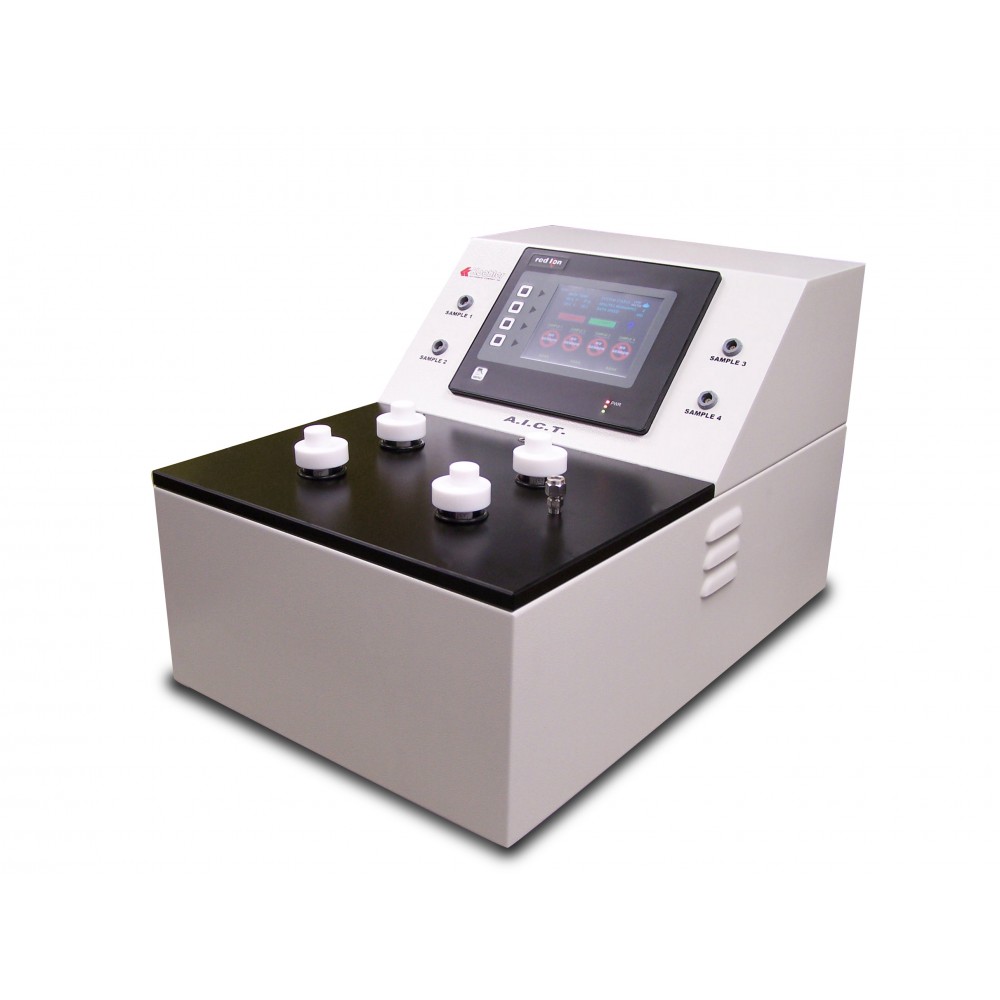

Accelerated Iron Corrosion Tester

https://www.labequip.com/web/image/product.template/34364/image_1920?unique=96dd046

Accelerated Laboratory and Field Procedure for the determination of corrosion of iron, in the presence of water, on samples such as gasoline and gasoline blended with 10% ethanol, E10 (Specification D4814); gasoline blend components (except butane); diesel fuel and biodiesel B5, except Grade No. 4-D (Specification D975); biodiesel B6 to B20 (Specification D7467); diesel-blend component such as light cycle-oil; No.1 fuel oil, No.2 fuel oil (Specification D396); aviation turbine fuel (Specification D1655).

FEATURES:
Preset Temperature and RPM value in direct accordance with ASTM D7548
5 in. Touch Screen Control Display with Soft keys
4-position liquid bath
Integrated Timer
Small Footprint

SPECIFICATIONS:
Conforms to the specifications of: ASTM D7548
Temperature Setting: 37.8°C (100°F)
Bath Tank Volume: 1.3 Gallons
Heating/Cooling: Peltier Regulating System
Stirring Speed: 100 RPM; 900 RPM

$ 0.00 0.0 USD $ 0.00

$ 1.00

Not Available For Sale

This combination does not exist.

Contact Us
Petroleum

Terms and Conditions


Stock Number N1835
Model K30260 / K30269
Manufacturer Koehler Instrument
Standard Test Methods ASTM D7548
Product Brochure
Warranty 1 YEAR MANUFACTURER'S WARRANTY

Outside 15 x 23 x 14 in.H
Volts Specify 115 or 230
Hertz 50/60

COMES COMPLETE WITH:
5ml Syringe with 63.5mm (2.5 in) needle
Temperature Probe (4)
Test Jar, 90 ml capacity, flat-bottom (4)
Test Jar Cap (4)
Corrosion Test Specimen Assembly (4)
Port Cover (4)
Ethernet Crossover Cable (1)
O-Ring (4)
Magnetic Stirrer Bar according to ASTM (5)
2x Lighted Magnifying Lens (1)

OPTIONAL ACCESSORIES AVAILABLE AT ADDITIONAL COST:
250-000-28F ASTM 28F Thermometer, Range: 97.5 to 102.5°F
250-000-28C ASTM 28C Thermometer, Range: 36.6 to 39.4°C
K30130 Polishing Chuck
K30150 Drive Motor, 115V
K30180 Drive Motor, 230V
380-100-002 Silicone Carbide Abrasive Cloth Roll, C-100 grit Open Mesh, 38mm width x 22.5m length. For Preliminary grinding and final polishing of test specimens.
