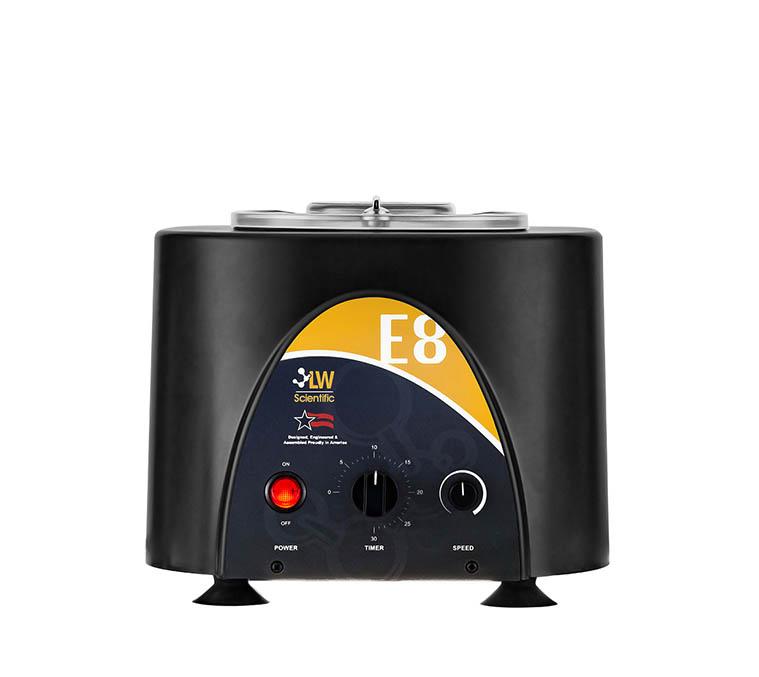

USA E8 Combination Centrifuge
The E8 Combination Centrifuge is specifically designed to run 75mm microhematocrit tubes and 1ml-15ml microtubes and test tubes. This centrifuge features quiet operation for a more peaceful laboratory environment. It also features a shorter height to fit under any cabinet, and auto-calibrating speed function for precision results.
To run microhematocrit tubes, simply insert your 75mm capillary tubes into the carrier, place carriers in opposing tube sleeves for a balanced load, and spin at 3,500 rpm for 6 minutes for clear separation.
Available Models
| Model Number |
Description |
Speed Control |
| E8C-U8AD-CRT3 |
USA E8 Digital-Speed, Angled 8-Place Centrifuge with Crit Carriers |
Digital |
| E8C-U8AV-CR03 |
USA E8 Variable-Speed, Angled 8-Place Centrifuge with Crit Carriers |
Variable |
| E8C-U8AF-CR03 |
USA E8 Fixed-Speed, Angled 8-Place Centrifuge with Crit Carriers |
Fixed |
Model Specifications
E8 Digital Speed Model
- 3,500 rpm digital speed and time (blood, urines, microhematocrits, etc.)
- Touch pad, programmable
- Speed: 500-3,500rpm
- Time: 1-99mins
- Stores last four programmed speeds & times
- Service Indicator Light
- Auto-off 30-minute timer with bell
E8 Variable Speed Model
- 3,500 rpm with variable speed control knobs (blood, urines, microhematocrits, etc.)
- Auto-off 30-minute timer with bell
E8 Fixed Speed Model
- 3,500rpm fixed speed - for blood only
- Auto-off 30-minute timer with bell
Advantages
- Accurate speeds for specific g-forces
- Proper separations without cell damage
- Quiet, vibration-free operation
- Auto-brake stops the rotor in less than 30 seconds
- Spins 8, 75mm capillary tubes
- Designed, Engineered, and Assembled Proudly in America
Features
- Angled rotor, 8-tube capacity
- Holds 1ml to 15ml size tubes and 75mm capillary tubes
- 12 volt DC maintenance-free motor
- Clear view port in lid for using tachometer
- Suction-cupped feet prevent slipping
- 110/220v auto-switching power adapter (CE, UL, cUL approved)
- Lid safety shut-off switch
- Maximum RCF=1,534g
Included Accessories
- Eight-place rotor
- Eight 5ml-15ml blue tube sleeves
- Eight 3ml-4ml black tube sleeve inserts
- Six green tube inserts to spin 1ml-2ml
- Two 15ml metal tube shields
- Two 4-place Crit Carrier inserts (75mm capillary tubes)
- EZ Reader Card
Dimensions and Weight
| Height |
9.5" (241mm) |
| Length |
11" (279mm) |
| Width |
11" (279mm) |
| Weight |
9.5 lbs (4.3kg) |
Microhematocrit PCV Procedure
3 Easy steps to achieve accurate PCV results:
- Insert capillaries in the Crit Carrier
- Insert the carrier in the metal tube sleeves
- Spin at 3,500 rpm for 6 (+/-1) minutes
Angled Rotor Technology
In a traditional microhematocrit centrifuge with a flat rotor, the red cells and the plasma must pass through each other horizontally in the narrow tube. In this case, very high speed and g-force is needed to reduce trapped plasma. When using LW Scientific Crit Carriers in an angled rotor, the red cells initially move to the outer tube wall while the plasma initially moves to the inner tube wall. Then, they pass each other easily as the red cells travel down to the bottom of the tube and the plasma travels to the top. With more efficient separation and ZERO trapped plasma, the PCV value will be accurate.
The E8 Combination Centrifuge is a FDA registered, Class II medical device. Comparable results to the HemataStat II angled PCV centrifuge sold to the human market. The HemataStat II produces PCV results at 2,000 g-force in 1 minute.
