Bomb Calorimeter

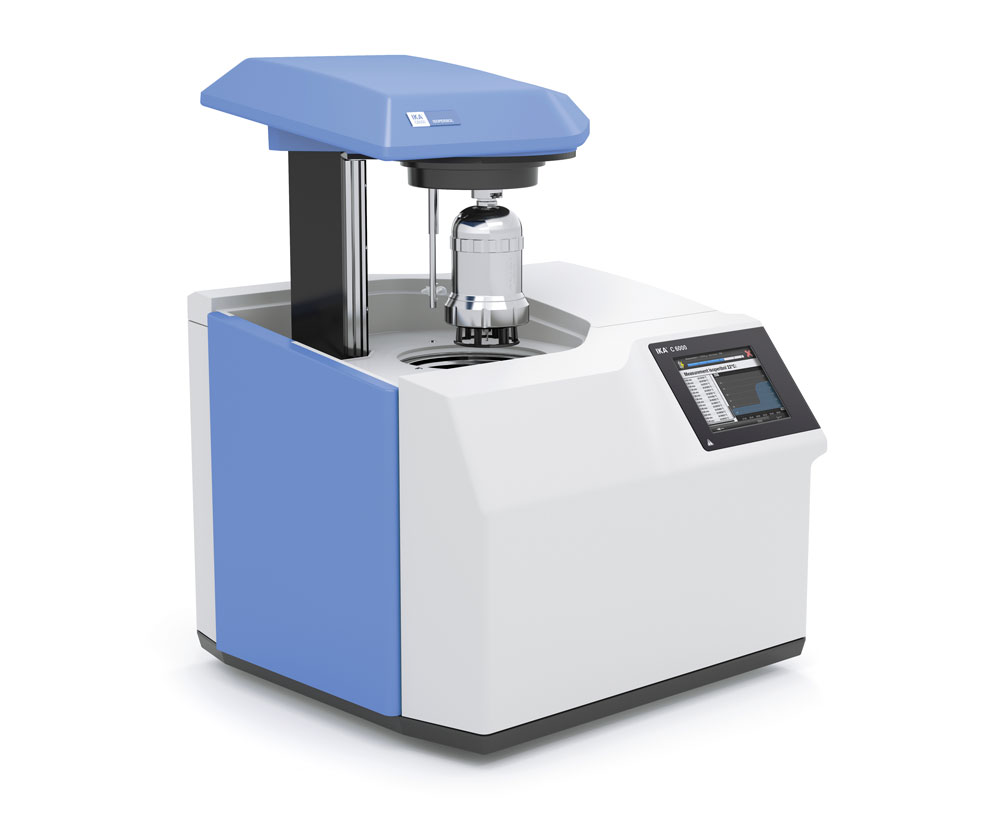

The C 6000 isoperibol oxygen bomb calorimeter combines modern technology, variability and automation in one instrument. It operates according to all bomb calorimeter standards, such as e.g. the DIN, ISO, ASTM, GOST and GB. The operator can choose between three different starting temperatures 22°C, 25°C, 30°C in each measuring mode. Due to the new design of the decomposition vessel the measurement time could be reduced. Due to the variety of different interfaces for PC, printer (Ethernet, serial and USB), balance and USB Stick this unit is easily adaptable to the customer's specific application needs. Further adaption to data management and LIMS is possible with IKA calorimeter software C 6040 Calwin (Accessory).

FEATURES:
~ Automatic ignition and ignition energy determination
~ Automatic water filling and draining
~ Automatic oxygen filling, venting and flushing
~ RFID technology for automatic decomposition vessel identification
~ New design of the decomposition vessel allowing easier and faster sample preparation
~ Easy and convenient capacitive touch screen operation
~ Control chart view and correction calculation of globally used standards
~ Ethernet interface to connect a network printer
~ USB interface allowing easy data management and software updates

THERE ARE 4 DIFFERENT PACKAGES AVAILABLE - the package priced in this quote is for the C 6000 isoperibol Package 2/10
Package 2/10 consists of C 6000 isoperibol, C 6010 decomposition vessel, standard

SPECIFICATIONS:
~ Measuring range max.: 40000J/9560 cal
~ Measuring mode: dynamic 22°C/25°C/30°C
~ Measuring mode: isoperibol 22°C/25°C/30°C
~ Measurements per hour: Isoperibol 4, Dynamic 6
~ Temperature measurement resolution: 0.0001 K
~ Oxygen operating pressure max.: 40 bar
~ Display: TFT with touch screen
~ Number of possible decomposition vessels per device: Up to 4
~ Reproducibility: (1g benzoic acid NBS39i 0.05 to 0.15 % RSD
INTERFACES:
~ PC 9 pin (M) RS 232 serial
~ Printer USB-B, Ethernet
~ Balance 9 pin (M) RS 232 serial
AUTOMATIC FUNCTIONS:
~ Automatic water filling and draining
~ Automatic oxygen, venting, flushing
~ Ignition and ignition energy determination for each experiment
COOLING WITH RC 2 BASIC CHILLER (not included):
~ Cooling medium temperature min. 12°C
~ Cooling medium temperature max. 27°C
~ Cooling medium permissible operating pressure 1.5 bar

** PLEASE REQUEST PRICING ON THESE OTHER CONFIGURATIONS IF YOU HAVE A DIFFERENT REQUIREMENT:
~ C 6000 isoperibol Package 2/10 Calorimeter, with chiller
~ C 6000 Package 1/12 Calorimeter isoperibol Calorimeter, with chiller, halogen resistant
~ C 6000 Package 2/10 Calorimeter isoperibol Calorimeter, without chiller
~ C 6000 Package 2/12 Calorimeter isoperibol Calorimeter, without chiller, halogen resist.
