Pour Point Tester for Petroleum

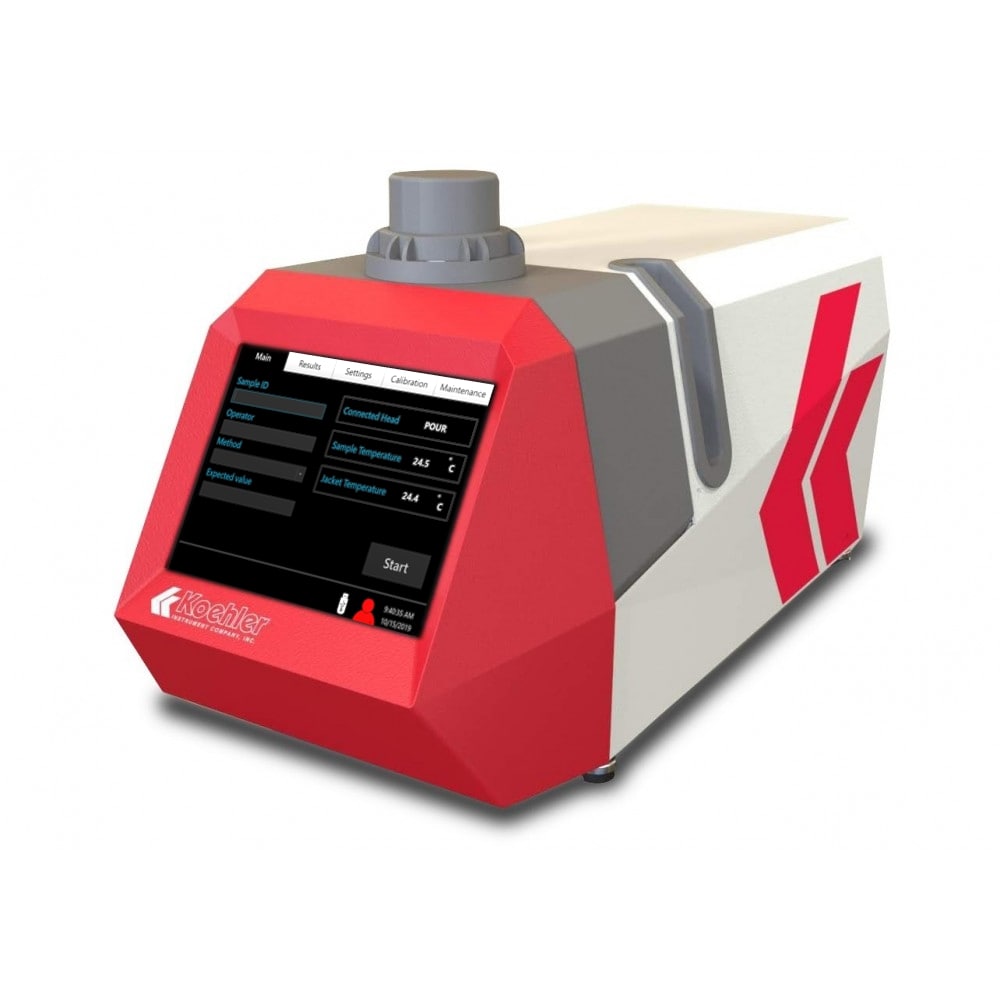

The K77000 Automated Pour Point Analyzer is a state of the art piece of equipment for measuring pour point with the Automatic Tilt Method. The Pour Point of a petroleum product is an index of the lowest temperature of its utility for certain applications. Flow characteristics, such as pour point can be critical for the correct operation of lubricating oil systems, fuel systems, and petroleum blending and pipeline operations.

ASTM D5950 - For the determination of pour point of petroleum products by an automatic instrument that tilts the test jar during cooling and detects movement of the surface of the test specimen with an optical device. This test method is designed to cover the range of temperatures from -66 to +51 C.
After preliminary heating, the test specimen is inserted into the automatic pour point apparatus. After starting the program, the specimen is cooled according to the cooling profile listed in the ASTM Method and examined at either 1 C or 3 C intervals. The lowest temperature at which movement of the specimen is detected, by the automatic equipment, is displayed as the pour point.

SPECIFICATIONS:
Detection: Tilting Method
Cooling: Internal Cooling System
Temperature Range: -105 °C to +50 °C (-157 °F to +122 °F)
Temperature Accuracy: ± 0.1 °C
Tilt Interval: 1 °C or 3 °C as per test method (User defined for custom method 1 °C to 5 °C)
Interfaces: USB (4), Ethernet
Display:10.4 in. Color Touch Screen
Password Protection: Multi-level password capability

FEATURES:

Fully Automatic
Automatic determination of Pour Point via the Automatic Tilt Method
Conformance to ASTM D5950
Correlates to ASTM D2500, D97, and related specifications

High Performance
Wireless Pour Point Head
Integrated Cooling System
Automatic Calibration by means of 10 point RTD Calibration, Sample Calibration, and Jacket Calibration

Industrial Touch Screen User Interface
10.4-inch Integrated Color Touch Screen

Software Capabilities, USB & Network Connections
Standard test methods are pre-programmed or user-defined test programs can be created
Clear graph of temperature vs. time for sample and bath temperatures
Results can be easily searched, viewed on screen, printed, and exported to LIMS
4 USB interfaces
Internet (Ethernet) Line

Automated Calibration Features
3 Point Electronics Calibration
10 Point RTD Offset Calibration
Jacket Calibration
