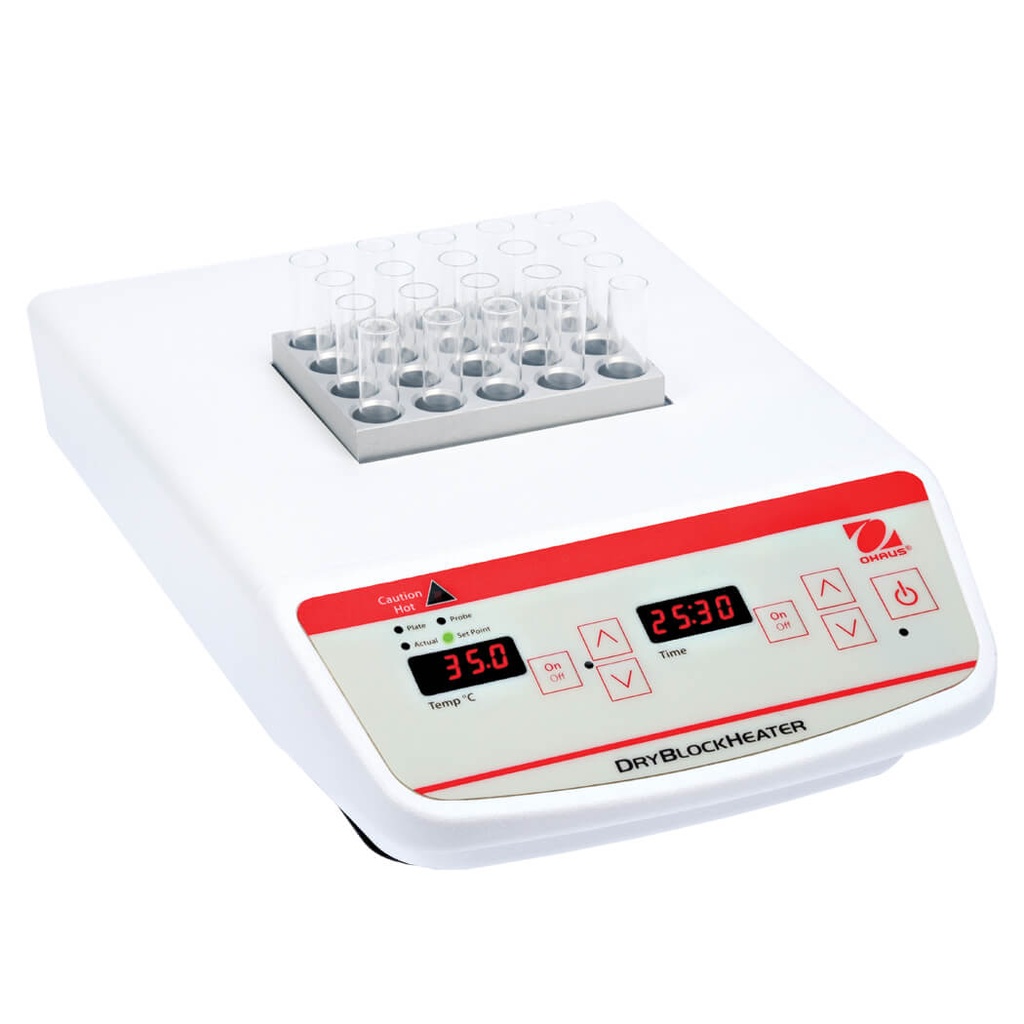

Block Heater

Dry Block Heaters

Designed for applications that require repeatable results and superior temperature stability. These multi-purpose units are ideal for incubation and activation of cultures, enzyme reactions, immunoassays, melting/boiling points, and a wide variety of other laboratory procedures. Each of the five models accepts separate interchangeable modular blocks, accommodating various tube sizes from 0.2 mL micro-tubes to 50 mL centrifuge tubes. Efficient heating due to close tube-and-block contact for maximum heat retention. Heaters require OHAUS modular heating blocks for operation. Modular blocks are sold separately.

Key Features

• Exceptional temperature uniformity and stability
• Optional external temperature probe
• Holds interchangeable modular blocks
• Integral support rod holder with locking knob accepts optional External Temperature Probe Kit
• Each block has a thermometer well for measuring block temperature

Operating Features

Microprocessor Control: PID temperature control, with optional external RTD probe, offers a temperature stability as low as ± 0.1°C with a temperature uniformity as low as ± 0.1°C. Samples are heated to temperature quickly and accurately. Temperature is adjusted in ± 0.1°C increments.

LED Display: Touch pad controls with easy-to-read, independent LED displays for temperature, and time. Provides repeatable and accurate results every time and is easily visible across lab benches. Shows set-point and actual temperature. Timer will display elapsed time or, when programmed to user defined limit, will shut off unit when time reaches zero. Display will show last used settings, even after power has been turned off.

Temperature Calibration Mode: Allows user to calibrate unit to an external temperature device.

Safety Features

• Caution Hot Indicator: Hot warning symbol light is illuminated when the temperature is above 40°C
• Overshoot Protection: If the unit exceeds the set temperature by 10°C the unit will automatically stop heating
• Audible Alarm: In timed mode, alarm will sound when time reaches zero and when unit reaches set-point temperature

CAUTION! To avoid possible electrical hazard, do not fill well or block opening with water or other fluids. Unit is designed as a dry bath/incubator.

Applications

• Denaturing proteins
• DNA applications
• ELISA and other immunoassay studies

Operating Conditions

Units can be run in conditions from 18 to 33°C (64 to 91°F), 20% to 80% relative humidity, non-condensing.

Performance Specifications

Advanced Dry Block Heaters - Models

Units include a detachable, 3-wire cord and plug. Modular blocks are sold separately.

External Temperature Probe Kit

Enables the unit to read actual block or sample temperature and display that temperature on the control panel. The optional External Temperature Probe Kit includes a stainless steel RTD PT100 probe, 18" (45.7 cm) stainless steel support rod, thermometer/temperature probe extension clamp and hook connector. The PT100 RTD probe is designed to fit perfectly in to the thermometer well of each modular block.

Modular Blocks & Accessories

Modular blocks are constructed from a solid anodized aluminum block. The close contact of tubes-to-block walls allow for maximum heat retention. Each block has a thermometer well for measuring block temperature.

CAUTION! To avoid possible electrical hazard, do not fill well or block with water or other fluids. Units are designed as a dry bath/incubator.

Single block dimensions (L × W × H): 3.75 × 3 × 2" (9.5 × 7.6 × 5.1 cm)
Double block dimensions (L × W × H): 6 × 3.75 × 2.25" (15.2 × 9.5 × 5.7 cm)

Microcentrifuge Tube Blocks - Single Block

Titer Plate Block - Double Block

Fits 2/4/6 block Dry Block Heaters. Ideal for 96-well or 384-well titer plates. Recessed well for better stability, flat surface good for flat and round bottom plates.

Conical-Bottom Centrifuge Tube Blocks - Single Block

Standard Test Tube Blocks - Single Block

Combination Blocks - Single Block

These blocks have been designed for variable sized samples.
