Bomb Calorimeter

https://www.labequip.com/web/image/product.template/34242/image_1920?unique=96dd046

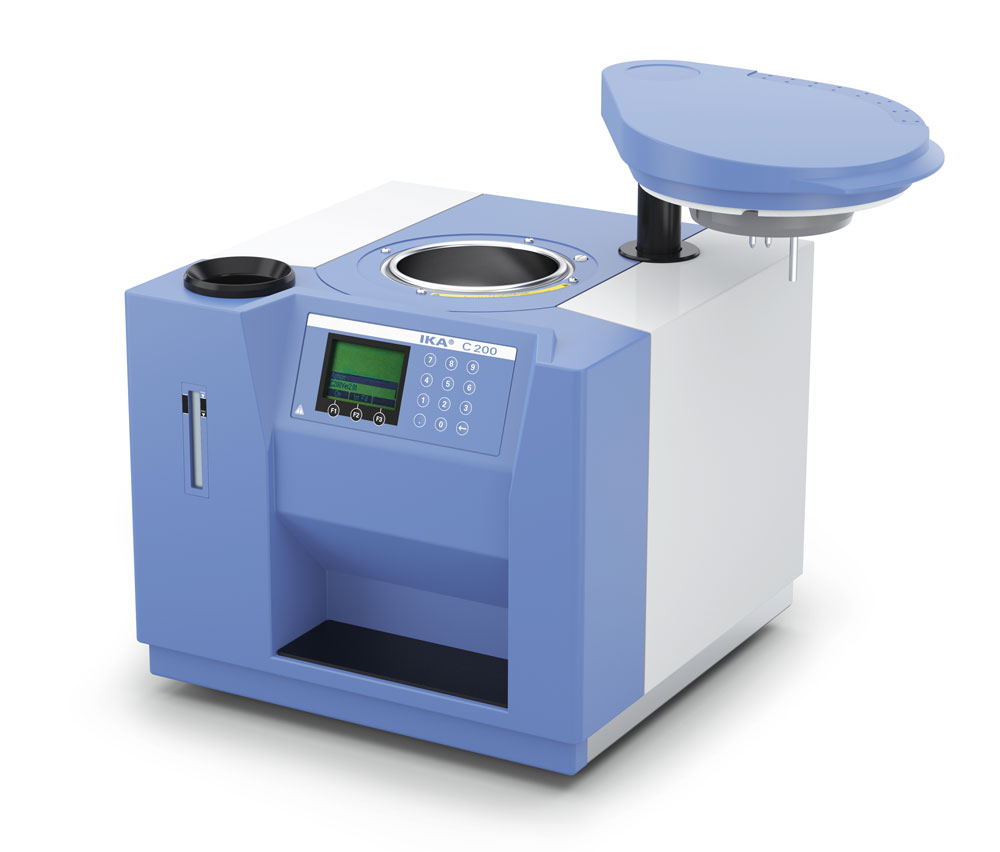

The IKA C 200 compact semi-automated combustion calorimeter is a space saving, low cost instrument to determine calorific values of liquid and solid samples and includes the following components:
Basic device (measuring cell) C 200 including power pack and ignition adaptor
Decomposition vessel C 5010
Oxygen filling station C 248
Consumables for calibration and installation

FEATURES:
~ Four different test procedures isoperibol, dynamic, manual and time-controlled allow ideal adaptation to various tasks
~ Manual oxygen handling and water preparation, automatic ignition and calculation of calorific value (fully automated water filling and draining in a closed loop can be achieved with the accessories RC 2 basic and C 200.RC hose set)
~ Suitable for use with Calwin C 6040 calorimeter software: monitoring and visualisation of measuring procedure (data export and further processing is possible in Excel)

Compact low cost semi automated calorimeter to determine calorific values of liquid and solid samples. Suitable for educational purposes (e.g. technical schools, universities) and for commercial, industrial laboratories with a low number of samples. The system can be adapted to individual laboratory tasks by adding further accessories.

Simple to understand display.

The decomposition vessel can be equiped to use a combustible crucibles C 14 (accessory C 5010.4 attachment is necessary)

Up to eight IKA measuring cells can be controlled by a single PC, using a multiserial plug in card PCI 8.2 (accessory)

SPECIFICATIONS:
Range of measurement: 40000 J
Reproducibility based on analysis of 1 g benzoic acid NBS 39i: 0,1 % RSD
Operating oxygen pressure: 30 bar
Starting temperatures: 25°C
Protection class: III (Protection class according to DIN EN 605: IP 20)
Interfaces:
1 x serial (RS 232)
1 x parallel (Centronics)
Measuring modes:
isoperibol up to 17 min
dynamic up to 8 min
manual (isoperibol) up to 17 min
time-controlled up to 14 min

24,194.00 24194.0 USD 24,194.00

1.00

Not Available For Sale

This combination does not exist.

Analytical Food Testing Petroleum

Terms and Conditions



Stock Number N1725
Model C 200
Manufacturer IKA
Standard Test Methods ASTM D1989 *WITHDRAWN '00 ASTM D240 DIN 51900 ASTM D4809 ASTM D5468 *WITHDRAWN '16 ASTM D5865 ASTM E711 ISO 1928
Product Brochure
Warranty 1 YEAR MANUFACTURER'S WARRANTY
