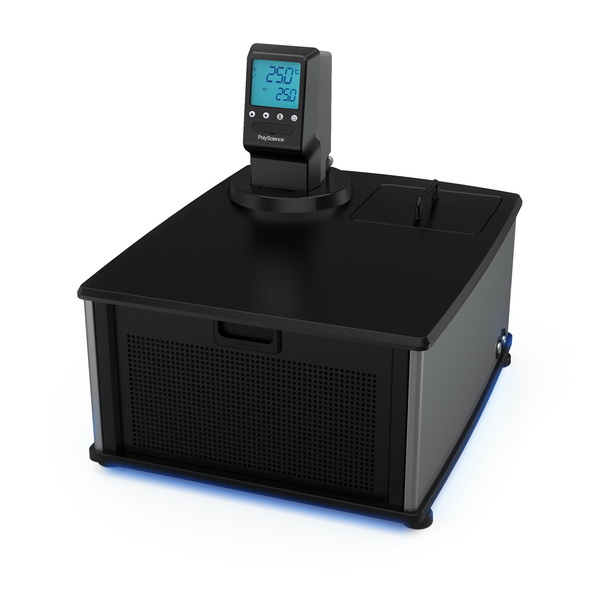

Refrigerated Bath

The economical MX7LR-20 is an economical choice which does not have PC control capability. REQUEST QUOTE ON OTHER SIZES AND CONFIGURATIONS

The SD Series Controller offers PC control (request a quote)
The AP Series Controller offers full color touch-screen interface and is standalone programmable or offers PC control with Rheocalc software (request a quote).

This bath features a low profile (also available with a taller profile - 21.3 in.L x 8.7 in.W x 25.4 in.H) and a 7-liter reservoir capacity.

1 speed pump
External circulation: Closed loop
Temperature range: -20 to +135°C
Temperature Stability: ±0.07°C
Maximum temperature up to 135°C (to 200°C with AP controller)
Flow Rate: 13.5LPM
Over-Temperature Protection / Failsafe Heater Control: Yes
Low Liquid Level Protection: Yes
Reservoir Drain: Yes

Features & Benefits:
~ Large, universal icon and English display
~ On-screen prompts
~ Single-point calibration capability

***can be used with Brookfield water jacketed devices: Wells-Brookfield Cone/Plate Viscometer, R/S-CC and R/S-CPS Rheometers and Small Sample Adapter, Ultra-Low Adapter and DIN Adapter.
