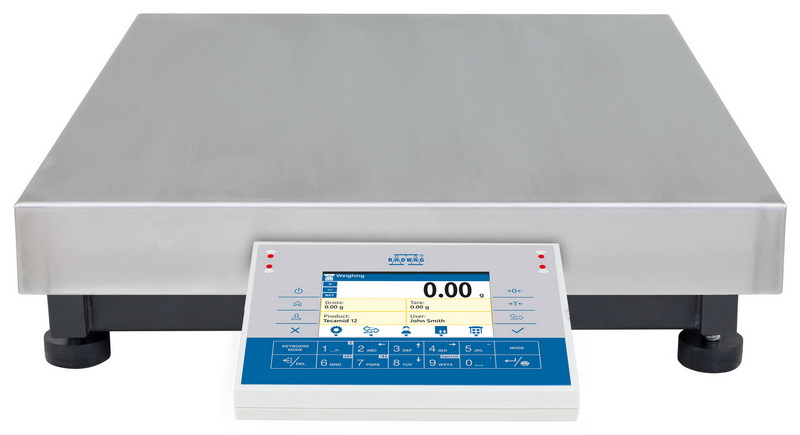

0-decimal Balance

APM series balances are equipped with an innovative measuring system based on RADWAG MonoBLOCK technology. This enables operation with readability of 0.01 g at capacity of 15 kg, and with readability of 0.5 g at capacity of 60 kg.
Use of the new measuring system, which is a subject matter of RADWAG patent, guarantees stability of repeatability over time at a range SD less than 1d. The unique measuring system solution is characterized with great resistance to ambient conditions change.
An in-built 4-point protection system prevents balance overloading, this ensures safety in case too heavy load is applied onto the weighing pan.

Main features:
~ new RADWAG MonoBLOCK sensor;
~ unrivalled repeatability of indications;
~ weighing of heavy loads with maximum accuracy;
~ intuitive operation guaranteed by a colour touchscreen;
~ compliance with CFR21;
~ fast mass measurements;
~ robust mechanical design - new lower weighing platform;
~ improved ergonomics - two types of weighing terminal for selection.

Balance offers possibility of weighing loads outside the weighing platform (so called under-hook weighing). This is an alternative for weighing loads with non-standard dimensions and shapes or those generating magnetic field.

Max capacity [Max]: 60 kg
Minimum load: - g
Readability [d]: 1 g
Tare range: -60 kg
Repeatability at nominal load: 0.8 g
Repeatability at low load: 0.4 g
Linearity: ±3 g
Minimum weight (USP): 820 g
Minimum weight: 82 g
Stabilization time: 3 s
Adjustment: external
Sensitivity drift: 2 ppm/°C in temperature +15 ° +35 °C
Interface: 2×RS 232, 1×USB-A, 1×USB-B, Ethernet, Wireless Connection (option), 4 Inputs / 4 Outputs (option)
Pan Size: 500 x 400 mm
