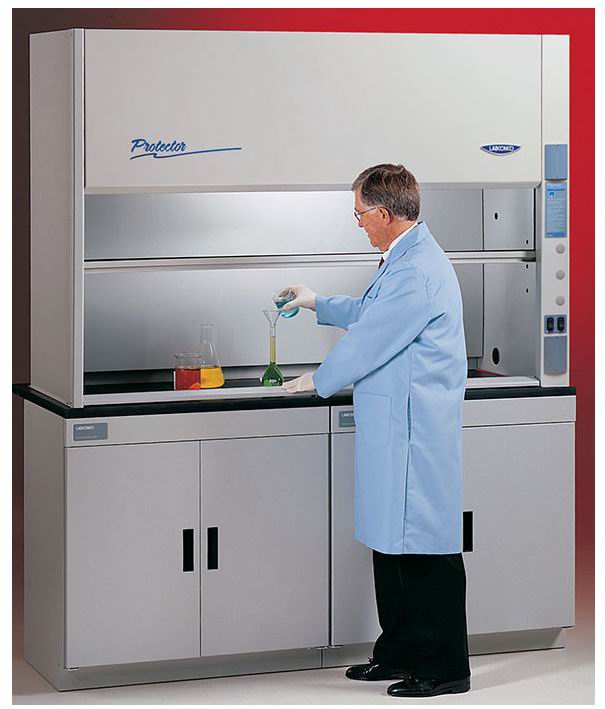

6-ft Fume Hood

Basic Laboratory Hoods for Light Duty Applications

Basic 47 and 70 Laboratory Hoods deliver economical ventilation solutions for modular laboratories, classrooms, and light duty applications requiring safe fume containment. These compact hoods are constructed of durable powder-coated steel and feature reduced overall height and depth to accommodate tight installations, low ceilings, and narrow aisles.

Key Design Features

Lighting and Electrical Systems

Vapor-proof models include pre-wired 100-watt vapor-proof LED lighting with integrated light and blower switches. All incandescent lighting and switches connect to the hood's factory-wired junction box. Explosion-proof configurations feature explosion-proof 100-watt light fixtures requiring on-site installation, with bulb not included. These models ship without switches and wiring to comply with varying local code requirements.

Interior Configuration

• Vertical-rising 3/16" thick tempered safety glass sash with powder-coated steel handle
• Durable powder-coated 16 gauge steel liner resists chemical degradation
• Two-piece adjustable baffle optimizes airflow
• Curved air foil directs airflow to minimize turbulence and ensure containment; lifts off for cleaning
• Top of liner factory-prepared for two customer-supplied apparatus rods
• Right interior wall factory-prepared for optional cupsink and turret
• By-pass airflow design

Service Panel and Accessibility

The right side fixture panel arrives factory-prepared to accommodate up to three color-coded service fixtures, one duplex electrical receptacle, and an airflow monitor. The removable front panel provides convenient access to blower and electrical connections.

Ventilation Options

Versatile blower modules mount on top of the hood liner or in remote locations. Hoods are also available without blower for custom ventilation configurations. Models with blower module include belt-driven blowers with adjustable sheave, powder-coated steel base and housing, and corrosion-resistant coated steel impeller.

Certifications and Standards

Heights of switches, electrical receptacles and service fixtures meet ADA requirements.

Unassembled Models for Easy Transport

Unassembled configurations fit into cartons less than one half the assembled size, providing economical shipping and storage advantages. The compact containers transport readily to remote locations. Assembly is simple and fast. Note that unassembled models are not pre-wired.

Standard Features Summary

• By-pass airflow design
• Curved air foil that lifts off for cleaning
• Glacier white powder-coated, 16 gauge steel exterior and interior
• Two-piece adjustable baffle
• 3/16" thick tempered safety glass vertical-rising sash with powder-coated steel sash handle
• Removable front panel for access to electrical wiring
• Right side fixture panel factory-prepared for up to three service fixtures, one duplex electrical receptacle and one airflow monitor (fixtures, receptacle and monitor not included)
• Right interior wall factory-prepared for one cupsink and turret (cupsink and turret not included)
• Powder-coated steel 10.3" OD exhaust connection

Required Accessories

The following items are not included and must be ordered separately:

• Blower (many models include a blower module)
• Ductwork
• Work surface (see page 28)
• Base cabinet or stand

Optional Accessories for On-Site Installation

• Service Fixture Kits
• Electrical Duplex Kits
• Guardian Airflow Monitor Kits
• Cupsink and Turret Kit
• Sash Stop Kit
• Right Side Finish Panel Kit

Basic 47 Laboratory Hood Specifications

Basic 47 Hoods with blower module are capable of overcoming a maximum external static pressure of .25" H2O at 720 CFM (100 fpm). Overall dimensions with blower module: 47.0" wide x 25.0" deep x 53.0" high.

Basic 47 Hoods for use with remote blower have static pressure loss not exceeding .35" H2O at 100 fpm (720 CFM). Overall dimensions: 47.0" wide x 25.0" deep x 48.0" high.

Basic 47 Interior Dimensions

• Sash opening: 41.25" (104.8 cm)
• Inside width: 43.2" (104.8 cm)
• Sash opening height: 26.0" (66.0 cm)
• Viewing height to work surface: 27.1" (68.9 cm)
• Light fixture height: 8.75" (22.2 cm)

Basic 47 Models with Blower Module

*Maximum length of straight duct to achieve 100 fpm face velocity
**International electrical configuration
†Bulb not included
††Shipping weight of separate blower carton

Basic 47 Models for Use with Remote Blower

**International electrical configuration
†Bulb not included

Basic 70 Laboratory Hood Specifications

Basic 70 Hoods with blower module are capable of overcoming a maximum external static pressure of .23" H2O at 1120 CFM (100 fpm). Overall dimensions with blower module: 70.0" wide x 25.0" deep x 53.0" high.

Basic 70 Hoods for use with remote blower have static pressure loss not exceeding .57" H2O at 100 fpm (1120 CFM). Overall dimensions: 70.0" wide x 25.0" deep x 48.0" high.

Basic 70 Interior Dimensions

• Sash opening: 64.25" (163.2 cm)
• Inside width: 66.2" (168.1 cm)
• Sash opening height: 26.0" (66.0 cm)
• Viewing height to work surface: 27.1" (68.9 cm)
• Light fixture height: 8.75" (22.2 cm)

Basic 70 Models with Blower Module
