Drum Manifold for Freeze Dryer

Drying Accessories for FreeZone Freeze Dry Systems

A complete range of drying chambers and manifolds designed to fit FreeZone Freeze Dry Systems. These accessories provide flexible solutions for bulk drying and flask connection applications.

System Compatibility Key

• 1 = Fits any FreeZone 1 Liter Freeze Dry System
• 2.5 = Fits any FreeZone 2.5 Liter Freeze Dry System
• 4.5 = Fits any FreeZone 4.5 Liter Freeze Dry System
• 4.5A = Fits any FreeZone 4.5 Liter Freeze Dry System with Attachment Port Lid Accessory 7762800 attached (sold separately)
• 4.5P = Fits any FreeZone Plus 4.5 Liter Cascade Freeze Dry System
• 6 = Fits any FreeZone 6 Liter Freeze Dry System
• 12 = Fits any FreeZone 12 Liter Freeze Dry System
• 18 = Fits any FreeZone 18 Liter Freeze Dry System

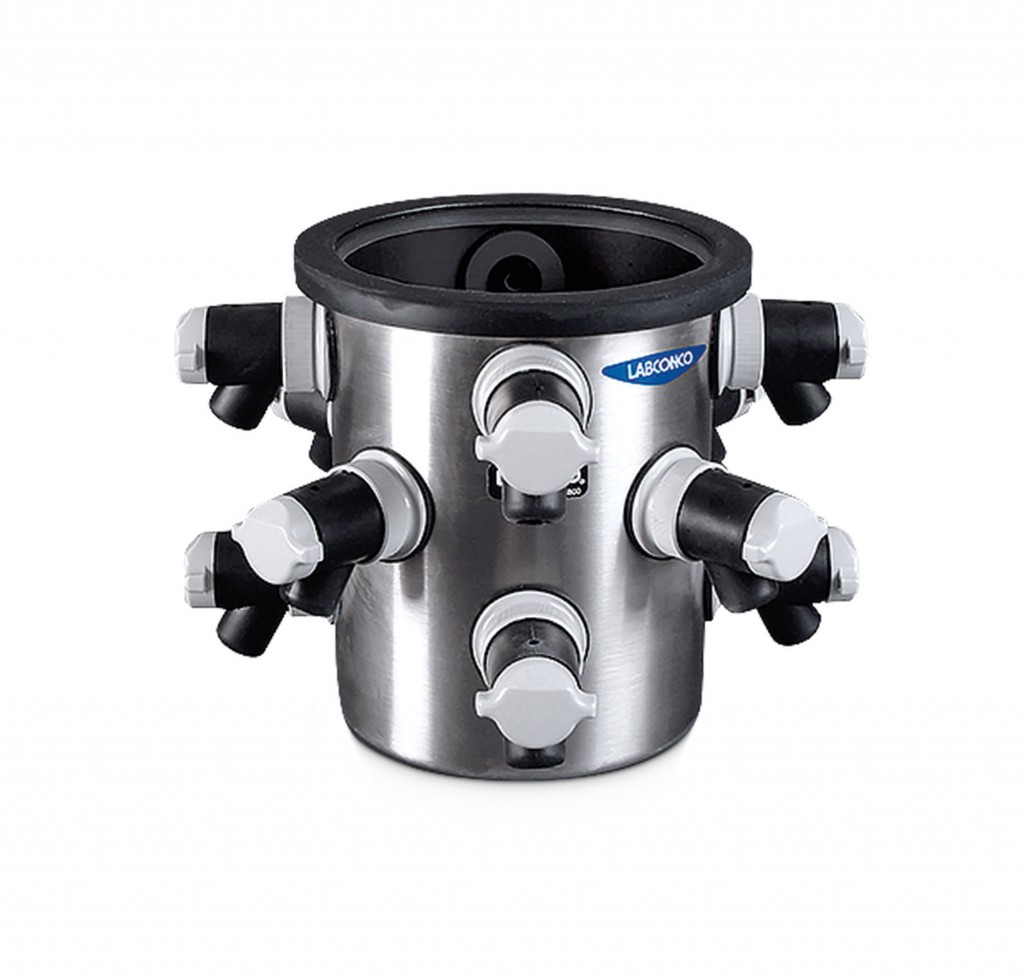

12-Port Drying Chamber

Catalog Number: 7522800

Type 304 stainless steel drying chamber with 1/2" thick acrylic lid with neoprene gasket. Complete with 12 neoprene valves with molded plastic knobs that accommodate both 1/2" and 3/4" adapters for connection of flasks.

• Dimensions: 9.75" h x 8.0" diameter (24.8 cm x 20.3 cm)
• Shipping Weight: 11 lbs. (5 kg)
• Compatible Systems: 1, 2.5, 4.5P, 6, 12, 18

16-Port Drying Chamber

Catalog Number: 7522900

Type 304 stainless steel drying chamber with 3/4" thick acrylic lid with neoprene gasket. Complete with 16 neoprene valves with molded plastic knobs that accommodate both 1/2" and 3/4" adapters for connection of flasks.

• Dimensions: 13.0" h x 13.0" diameter (33 cm x 33 cm)
• Shipping Weight: 21 lbs. (9.5 kg)
• Compatible Systems: 4.5P, 6, 12, 18

Clear Chambers with Valves

Provide visibility into the acrylic chamber during bulk drying as well as accommodate connection of freeze dry glassware to eight valves. Include clear acrylic cylinder; anodized aluminum lid; eight neoprene valves with molded plastic knobs for use with both 1/2" and 3/4" adapters; clear acrylic attachment port lid with 3" diameter opening and neoprene gasket.

Clear Chambers

Provide visibility into the chamber during bulk drying. Include clear acrylic lid with neoprene gasket, vacuum release valves and pass-through for electrical transformer cords, clear acrylic attachment port lid with 3" diameter opening and neoprene gasket.
