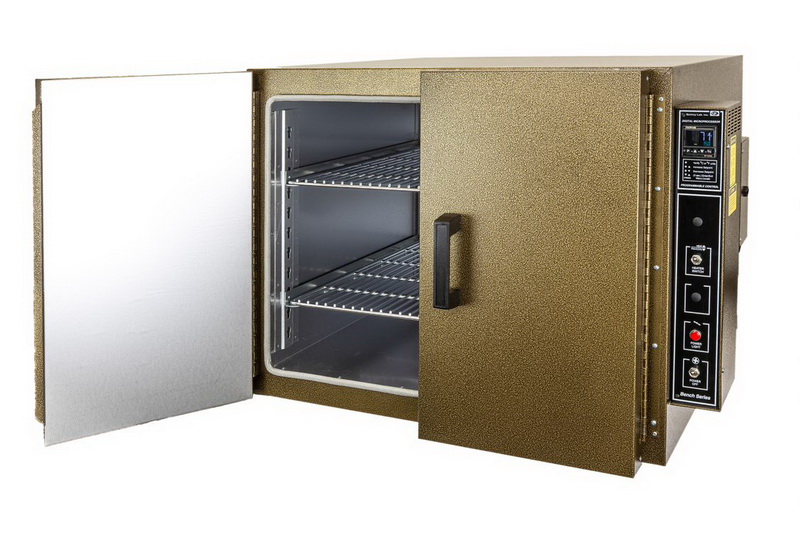

Forced-Air Oven

Made in United States

Ships from United States

This series provides large bench or portable capacity. Take advantage of the ease, convenience and increased uniformity of the digital-control models.
The digital PID microprocessor provides not only ease of temperature setting, but temperature tracking and ramp & soak capability, allowing for the most demanding applications. Digitally controlled ovens use a 'J'-Type thermocouple and will hold set temperatures to within ±0.5°C, providing improved uniformity.
Although there are several different models and styles, all of the bench series ovens offer fan-forced air circulation, aluminized interiors, gasketed doors, adjustable 80-lb capacity shelves, high/low heat switch, rapid run-up and recovery times, and a 6-foot cord with plug.
All ovens are fully tested prior to shipment. These ovens are perfect for: preheating, thermal testing, self-batch processing, part drying, curing, baking, evaporating or dehydrating various media and soil aggregate, as well as many other applications. All units feature large work spaces and excellent portability.

Capacity: 10.6 Cubic Feet
Temperature Range: Ambient +25 F Min. To 232°C (450°F)
Shelves (1.5 in. Centers):
~ Maximum Per Unit: 17
~ Maximum Pounds / Shelf: 80

Control Stability:
@ 100°C: ±2.5/0.5 C
@ 200°C: ±3.0/0.5 C

Uniformity:
@ 100°C: ±3.0/2.0 C
@ 200°C: ±4.0/3.0 C

Air Changes Max / Hour: 8 To 12
Max Chamber Air Velocity: 7ft/Sec

Quincy offers a variety of optional items for your specific needs, including access holes in 3 sizes, a storage cabinet or stand designed to fit the oven footprint, a high-limit analog or digital control backup, timers, a 10 in. circular chart recorder, an insulated door window, a chamber light, and an exhaust chamber adaptor to connect to a 3 in. vent. Please inquire details for details and costs.

***Available with a stainless steel interior for additional cost. Please request details and pricing.***

$ 3,146.00 3146.0 USD $ 3,146.00

$ 1.00

This combination does not exist.

Add to Inquiry List

General Testing

Terms and Conditions

Stock Number	N1497
Model	Digital 31-350ER
Manufacturer	Quincy Lab
Product Brochure	n1497.pdf
Warranty	2 YEAR MANUFACTURER'S WARRANTY

OPTIONAL ACCESSORIES AT ADDITIONAL COST:
additional shelves
access holes
storage cabinet or stand
high-limit analog or digital control backup
timers
10 in. circular chart recorder
an insulated door window
chamber light
exhaust chamber adaptor to connect to a 3 in. vent

Elc	CUL
Inside	25.5 in.W x 24 in.D x 30 in.H
Outside	33 in.W x 35.5 in.D x 34 in.H
Volts	115 (avail in 230V)
Hertz	60

Bench Ovens

Quincy Lab bench series ovens have been the workhorse in the industry for over 40 years. These time-tested bench ovens feature a redesigned chamber and air flow distribution system, improved cabinet insulation and an optional PID microprocessor temperature controller (ER MODELS).

Developed for the industrial lab, these rugged general-purpose ovens are perfect for preheating, thermal testing, self-batch processing, part drying, curing, baking, evaporating, or dehydrating various media, soils or aggregate, and many other applications. All models feature large work spaces and excellent portability. They can be moved to the job, or stacked on one another to conserve space.

Features

Large bench or portable capacity: 7 and 10 cubic feet
All encompassing circular air flow
ER Model programmable PID control
80 lb capacity shelves
Rapid run-up and recovery
Full 18 month factory warranty
Maximum temperature options: 300°F (150°C), 450°F (235°C), or 550°F (288°C)

Construction

A virtual non-contact exterior to interior cabinet design and high-density industrial thermal fiber insulation greatly reduce thermal conductive transfer, resulting in greater energy efficiency and lower exterior wall temperatures. Refinements in the air plenums and mixing chamber deliver an evenly heated horizontal circular flow of air for rapid heat to part transfer. A reliable quick-sensing hydraulic thermostat balances good temperature stability with recovery performance.

Heavy-duty chrome plated wire shelves can support 80 lbs. and can be spaced on 1.5" centers to provide up to 56 square feet of shelf surface (31-350). Cabinet exteriors are finished in exclusive Q-Lab "high-tech" bronze polyester. Large high-impact thermal plastic door handles always remain cool to the touch.

Available Models

Model 21-350ER
Model 21-350
Model 31-350

General Specifications

Specification	Model 21-250	Model 21-350	Model 31-350	Model 51-550
Interior Dimensions (W x H x D)	25.5x19.75x24 inches (64.7x50x61 cm)	25.5x19.75x24 inches (64.7x50x61 cm)	25.5x19.75x22.5 inches (64.7x50x57 cm)	25.5x30x24 inches (64.7x76x61 cm)
Exterior Dimensions (W x H x D)	33x24x35.5 inches (83x61x90 cm)	33x24x35.5 inches (83x61x90 cm)	33x34x35.5 inches (83x86x90 cm)	33x24x35.5 inches (83x60x90 cm)
Temperature Range	Ambient +25°F min. to 300°F (150°C)	Ambient +25°F min. to 450°F (232°C)	Ambient +25°F min. to 450°F (232°C)	Ambient +25°F min. to 550°F (287°C)
Capacity	7 cubic feet (198 liters)	7 cubic feet (198 liters)	6.60 cubic feet (185 liters)	10.6 cubic feet (300 liters)
Electrical	115V/9.2A 1050W NEMA 5-15P	120V/16A 1920W NEMA 5-20P	120V/16A 1920W NEMA 5-20P	230V/12.5A 3000W NEMA 6-20P
Shelves (1.5" centers)	11 maximum	11 maximum	17 maximum	11 maximum
Maximum Pounds per Shelf	80	80	80	80
Weight (Shipping/Stand Alone)	185/165 lbs	225/200 lbs	195/170 lbs	300/186 lbs

Note: 230 Volt optional on models 21 & 31

Performance Characteristics

Performance Parameter	Model 21-250/ER	Model 21-350/ER	Model 31-350/ER	Model 51-550/ER
Control Stability @ 100°C	±2.0 ± 0.2°C	±2.0 ± 0.3°C	±2.5 ± 0.5°C	±3.0 ± 0.5°C
Control Stability @ 200°C	NA	±2.5 ± 0.5°C	±3.0 ± 0.5°C	±3.5 ± 0.5°C
Uniformity @ 100°C	NA	±2.5 ± 2.0°C	±3.5 ± 4.0°C	±3.5 ± 2.5°C
Uniformity @ 200°C	±2.5 ± 2.0°C	±3.0 ± 2.0°C	±4.0 ± 3.0°C	±5.5 ± 4.5°C
Time to Temperature: Ambient to 100°C	15 Min. / 16 Min.	8 Min. / 9 Min.	9 Min. / 10 Min.	3 Min. / 6 Min.
Time to Temperature: Ambient to Max	36 Min. / 38 Min.	30 Min. / 32 Min.	35 Min. / 38 Min.	40 Min. / 45 Min.
Recovery @ 150°C: Door Open 15 Sec.	4 Min. / 5 Min.	2 Min. / 3 Min.	3 Min. / 4 Min.	1 Min. / 2 Min.
Recovery @ 150°C: Door Open 30 Sec.	5 Min. / 6 Min.	3 Min. / 4 Min.	4 Min. / 5 Min.	2 Min. / 3 Min.
Repeatability @ 150°C (Set Point Drift)	±2.0 / 0.5°C	±1.0 / 0.5°C	±1.5 / 0.5°C	±2.0 / 0.75°C
Evaporation Rate @ 110°C ±5 (230°F ±9) per ASTM C88	30-35 g/h	30-35 g/h	30-35 g/h	30-35 g/h
Air Changes Max/Hour @ 150°C with No Load	8 to 12	8 to 12	8 to 12	8 to 12
Max Chamber Air Velocity	7 ft/sec.	7 ft/sec.	7 ft/sec.	7 ft/sec.

Note: Performance characteristics for standard voltage models; alternate voltage models may vary. All tests conducted under controlled laboratory conditions. Repeatability or set point drift measured for 24 hrs. with controlled lab ambient temperatures not varying more than 2 degrees C & supply voltage by not more than 2%.

Clearance Requirements

6" minimum from wall to back of blower housing.
