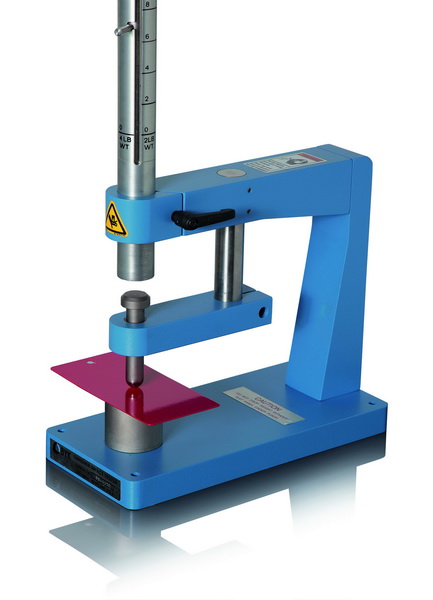

Heavy Duty Impact Tester

Made in United States
Ships from United States
https://www.labequip.com/web/image/product.template/34603/image_1920?unique=2cae3cc

This impact tester has gained wide acceptance in testing the impact resistance of many types of coatings from paints to varnishes to tough plated, plastic or laminated coatings. It is also widely used to establish quality control standards for resistance to impact surface damage and penetration of many construction materials including plastics, resins, fiberglass, sheet metals, and plywood.

.Can be configured in metric or imperial units
.Heavy duty construction for long life
.More than 10 weights to choose from in either gram or pound units
.Large selection of die and indenter sizes
.Easy change-over of weight, dies, and indenters

Note: Sample thickness maximum is 12.7mm (0.5 in)

TWO MODELS ARE AVAILABLE:
Metric Model (#5545)

$ 2,748.00 2748.0 USD $ 2,748.00

$ 1.00

Not Available For Sale

This combination does not exist.

Contact Us
Materials Testing

Terms and Conditions


Stock Number N1466
Model Metric model (5545)
Manufacturer BYK-Gardner
Standard Test Methods ASTM D2794 ASTM D3029 *WITHDRAWN '95 ASTM D4226 ASTM D5420 ISO 6272-2
Product Brochure
Warranty 1 YEAR MANUFACTURER'S WARRANTY

COMES COMPLETE WITH:
Basic plate with clamping device
Guide tube with scale in cm (5538)
Falling weight 1 kg (1249)
Falling weight 2 kg (1250)
Ball punch 0.625 in (1243)
Die 0.640 in (1264)
Anvil
Manual

OPTIONAL ACCESSORIES AVAILABLE AT ADDITIONAL COST:
D-Tip Punch, r1
D-Tip Punch, d1
Falling Weight 1 kg
Falling Weight 2 kg
Guide Tube
Falling Weight 500 g
Label 0 - 100 kg-cm
Label 0 - 200 kg-cm

Elc N/A
Outside 50"W x 5.5"D x 11.5"H

Heavy-Duty Impact Tester

This impact tester has gained wide acceptance in testing the impact resistance of many types of coatings from paints to varnishes to tough plated, plastic or laminated coatings. It is also widely used to establish quality control standards for resistance to impact surface damage and penetration of many construction materials including plastics, resins, fiberglass, sheet metals, and plywood.

Available Models

English Model (Cat. No. 1120)

  • Two and four pound weights included
  • Maximum allowable force of 80 and 160 inch-lbs
  • Round nose punch, 0.625 in diameter
  • Guide tube 40 in
  • Die inside diameter 0.64 in

Metric Model (Cat. No. 5545)

  • One and two kilogram weights included
  • Maximum allowable force of 100 and 200 kg-cm
  • Round nose punch, 1.59 cm diameter
  • Guide tube 100 cm
  • Die inside diameter 1.63 cm

Included Components

  • Anvil
  • Guide tube with collar
  • Scale in inch or cm
  • Weight(s)
  • Die
  • Punch (Tup)
  • Operating instructions

Standards

  • ASTM D 2794, D 3029, D 4226, D 5420
  • ISO 6272-2

Technical Specifications

Cat. No. Description Scale Weights Included Dimensions Net Weight Shipping Weight
1120 Heavy-Duty Impact Tester, English English 0.9 kg & 1.8 kg (2 lbs & 4 lbs) 127 x 14 x 29 cm (50 x 5.5 x 11.5 in) 10.4 kg (23 lbs) 15.9 kg (35 lbs)
5545 Heavy-Duty Impact Tester Metric Metric 1 kg & 2 kg (2.2 lbs & 4.4 lbs) 127 x 14 x 29 cm (50 x 5.5 x 11.5 in) 10.4 kg (23 lbs) 15.9 kg (35 lbs)

Note: Sample thickness maximum is 12.7mm (0.5 in)

Note: The Base Assembly set contains: base, anvil, arm, and arm support

Accessories for 1120 Impact Tester

Cat. No. Description
1240 Falling Weight 2 lbs, 1120/5545
1241 Falling Weight 4 lbs, 1120/5545
1231 Lift Screw, 1120
1243 Ball Punch 0.625″, 1120
1264 Die 0.640 in, 1120/5545-5547
1248 Guide Tube, 1120
5542 Base Assembly, 1120, 5545

Accessories for 5545 Impact Tester

Cat. No. Description
5539 Falling Weight 500 g, 1120/5545
1249 Falling Weight 1 kg, 1120/5545
1250 Falling Weight 2 kg, 1120/5545
5538 Guide Tube, 5545
5543 Label 0 - 100 kg-cm
5544 Label 0 - 200 kg-cm
