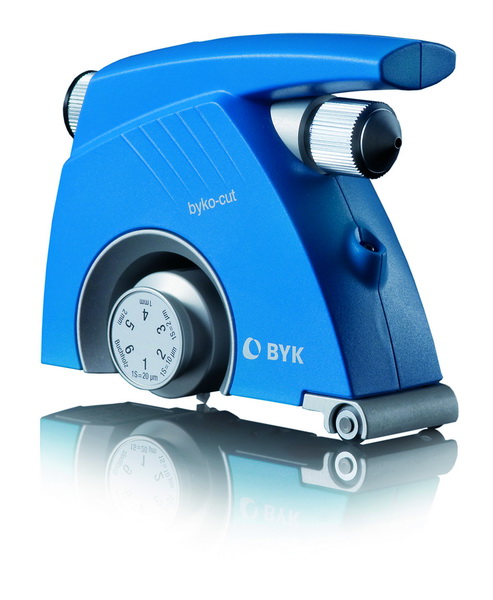

Film Thickness Gauge

Portable instrument providing sufficient accuracy for laboratory use but also usable at construction sites and in workshops. Ideal for customer service technicians and demonstrations. The byko-cut universal is a multi-purpose paint testing instrument that measures paint coating thickness, paint adhesion, and coating hardness.

The BYK-Gardner byko-cut is a universal instrument for:
~ Measuring film thickness in the range of 2 - 2000 Mm (1/8 - 80 mils) on every substrate (steel, non-ferrous metal, plastics, wood, etc.)
~ Capable of multi-layer film thickness analysis
~ Adhesion test by means of cross-cut test
~ Indentation hardness test in accordance with (Buchholz)
~ Microscopic research for pores, pits, cracks, blisters, flaking, intercoat adhesion of the individual film in coat systems, and quality control of the pretreatment of the substrate
Special features:
~ LED illumination
~ Ergonomical design
~ Guiding wheels for smooth cutting
~ Cut finder

SPECIFICATONS:
Lamp ____________ Batteries _______________ Microscope
White LED ___ 1.5 Volts Mignon type ____50-fold magnification
