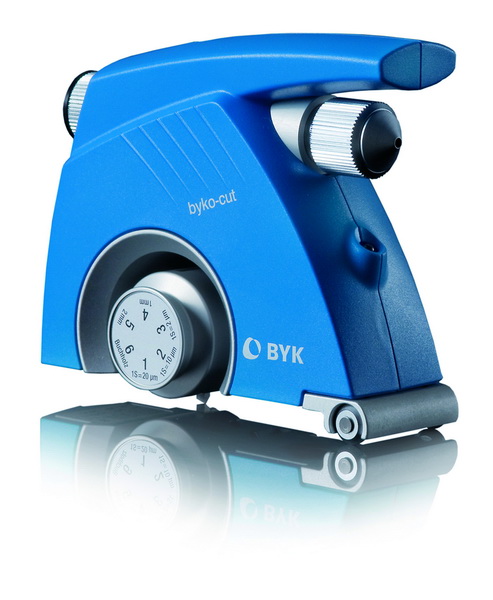

byko-cut universal
Portable instrument providing sufficient accuracy for laboratory use but also usable at construction sites and in workshops. Ideal for customer service technicians and demonstrations. The byko-cut universal is a versatile instrument for measuring film thickness, multi-layer film thickness analysis, adhesion testing, indentation hardness testing, and microscopic research of coating systems.
Applications
- Measuring film thickness in the range of 2 - 2000 µm (1/8 - 80 mils) on every substrate (steel, non-ferrous metal, plastics, wood, etc.)
- Capable of multi-layer film thickness analysis
- Adhesion test by means of cross-cut test in accordance with ASTM D 3359; DIN 53 151
- Indentation hardness test in accordance with ISO 2815 (Buchholz)
- Microscopic research for pores, pits, cracks, blisters, flaking, intercoat adhesion of the individual film in coat systems, and quality control of the pretreatment of the substrate
Special Features
- LED illumination
- Ergonomical design
- Guiding wheels for smooth cutting
- Cut finder
Included Components
- byko-cut universal film gauge
- Revolving rotary head with 3 cutters for film thickness (#1-3)
- Built-in microscope (scale 0 - 2 mm)
- LED
- Battery
- Operation manual
Note: Cutters must be ordered separately for Cat. No. 3432. Tools for cross-cut and hardness must be ordered separately.
Standards
- ASTM D 3002, D 3359
- DIN 50 986, 53 151
- ISO 2409, 2815
- NCCA II-13, X-1
- VTLA 003 Item 9
byko-cut universal Models
| Cat. No. |
Description |
Lamp |
Batteries |
Microscope |
Dimensions |
| 3430 |
byko-cut thickness, Metric |
White LED |
1.5 Volts Mignon type |
50-fold magnification |
110 x 80 x 75 mm (4.3 x 3.2 x 2.9 in) |
| 3431 |
byko-cut thickness, English |
White LED |
1.5 Volts Mignon type |
50-fold magnification |
110 x 80 x 75 mm (4.3 x 3.2 x 2.9 in) |
| 3432 |
byko-cut no cutters, Metric |
White LED |
1.5 Volts Mignon type |
50-fold magnification |
110 x 80 x 75 mm (4.3 x 3.2 x 2.9 in) |
| 3433 |
byko-cut no cutters, English |
White LED |
1.5 Volts Mignon type |
50-fold magnification |
110 x 80 x 75 mm (4.3 x 3.2 x 2.9 in) |
Destructive Film Thickness Measurement
The specially designed blades which are attached to the instrument are used to make a short incision in the film. The depth of the layer is measured with the built-in 50 fold microscope and the film is inspected for flaws. Each of the cutting tips has two bevels which are made to precision with the mentioned slopes. Since the slope of the cut is known, the measurement of the horizontal distance across this full slope (from the substrate to the top edge of the cut) is also a measurement of true vertical depth. The thickness of multiple-layered coatings can be easily determined.
Note: Angle measured from sample plane.
Note: For film thickness below 15 µm, accuracy is +1.5 µm
Thickness Cutters
| Cat. No. |
Description |
Slope of Tip (cutting angle) |
Maximum Coating Thickness |
1 Division on Reticle Scale Represents (Depth) |
Accuracy in Microns (± 1 increment) |
| 3421 |
Thickness Cutter 1, 2000, byko-cut |
45° |
2000 µm (80 mils) |
20 µm (1.0 mils) |
40 |
| 3422 |
Thickness Cutter 2, 1000, byko-cut |
26.5° |
1000 µm (40 mils) |
10 µm (0.5 mils) |
20 |
| 3423 |
Thickness Cutter 3, 200, byko-cut |
5.8° |
200 µm (8 mils) |
2 µm (0.1 mils) |
4 |
| 3419 |
Thickness Cutter 100, byko-cut |
3.0° |
100 µm (4 mils) |
1 µm (0.05 mils) |
|
| 3420 |
Thickness Cutter 3000, byko-cut |
56° |
3000 µm (120 mils) |
30 µm (1.5 mils) |
|
Buchholz Indentation Hardness
Place the byko-cut universal equipped with tool (Cat. No. 3427) and slip-on weight (Cat. No. 3434) on measuring position in accordance with standard. After 30 seconds measure indentation length using the built-in microscope.
| Cat. No. |
Description |
Specifications |
| 3427 |
Buchholz Tool, byko-cut |
In accordance with DIN 53153 and ISO 2815 |
| 3434 |
Buchholz Slip-on Weight, byko-cut |
Increases weight of byko-cut universal to the standard weight of 500 g ± 5g |
Multi-Cut Tool for Cross-Cut Test
| Cat. No. |
Description |
Standard |
Cutter Spacing |
No. of Cutters |
| 3429 |
Cross-Cut Tool 11, 1-edge 1 mm |
ASTM |
1 mm (0.04 in) |
11 |
| 3424 |
Cross-Cut Tool 11, 1-edge 1.5 mm |
ASTM |
1.5 mm (0.06 in) |
11 |
| 3425 |
Cross-Cut Tool 6, 1-edge 1 mm |
DIN, ISO |
1 mm (0.04 in) |
6 |
| 3426 |
Cross-Cut Tool 6, 1-edge 2 mm |
ASTM, DIN ISO |
2 mm (0.08 in) |
6 |
