Rotary Evaporator

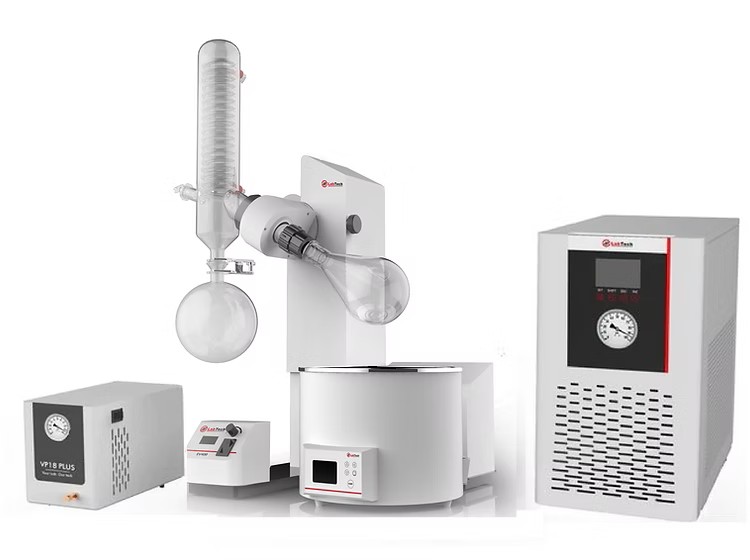

The EV400VAC Rotary Evaporator is the highest-featured model of the EV400 series, integrating advanced vacuum control along with many other benefits that the EV series has to offer. The built in vacuum controller allows the user to achieve correct vacuum in the system from 0-999mbar for all types of evaporation and ensure high recovery of vapor. The built-in gas release valve ensures high efficiency and stable vacuum control and includes a built-in anticorrosive vacuum sensor with high precision (allows for vacuum control precision of ±1mbar) .
The EV400VAC’s removable touchscreen display offers an advanced solvent database to optimize evaporation, changing vacuum and rotation settings based on characteristics of the solvent being used.
The unit offers vertical motorized lift and has the option for online sample adding through a PTFE valve, granting high efficiency and easy operation. The removable touchscreen display allows for rotation speed from 20-300rpm.
It can handle sample volumes in evaporation flasks ranging from 50-3000mL and has a 5L bath volume. The stand-alone heating bath supports both oil and water baths, has a temperature range of Ambient - 180°C, and is made from PTFE/Stainless Steel to guarantee safety and easy maintenance.

Safety features include automatic lift-up protection in case of electric power failure. The Rotary Evaporator will lift up the sample out of the bath to prevent problems in this scenario. The EV400VAC also has an automatic protection function immediately switches off the unit in dry bath conditions. PTFE/FKM sealing offers protections against corrosion. Safety clamps are included for safe attachment of collection flask and evaporation flask.
Other glassware assembly configurations (larger flasks, diagonal and dry ice condensers, etc.) are available upon request.

SPECIFICATIONS:
----MAIN UNIT----
Rotation speed range (rpm): 20-300
Display: LCD
Lift: Motor
Lift stroke (mm): 160
Head tilt angle (°): 0-60
Condenser: Vertical or Diagonal
Cooling surface (cm2): 1200 Standard
1500 Optional
Gradient distillation: Yes
Built-in vacuum controller: Yes
Solvents library: Yes
Vapor temperature: Optional
Auto distillation: Optional

----HEATING BATH----
Temperature range (°C): Ambient-230
Temperature controller mode: P.I.D.
Bath material: SS with PTFE Coating
Temp. control accuracy (°C): ±1 (Water) / ±2 (Oil)
Heating power (W): 1300
Bath capacity: 5L

H50-500 Chiller:
• Temp. control range: -5° to +35°C
• Temp. stability: ±0.3°C (P.I.D. / LCD)
• Refrigeration capacity: 500W
• Pump capacity: 3.5 L/min@10psi
• Dimensions (LxWxH cm): 48x25x47

VP18 PLUS vacuum Pump:
Totally oil free, mechanical (diaphragm) vacuum pumps with features of advanced
design, low noise level, high efficiency ad long lifespan. The LabTech vacuum pumps are specially designed for laboratory operations to meet the highest expectations of precision, reliability and ease of use. They can be used in a multitude of applications, such as vacuum filtration, degassing, impregnation, drying chambers, rotary evaporations, distillation, gel dryers, gas analytical systems and roughing of wide-range
turbo molecular pumps.
Power (W): 30
Pumping speed (L/min):18
Vacuum pressure (mbar/psi): 20/0.29
Vacuum controller: manual

Applications:
Solvent recycling
Solvent distillation
Powder drying
Chemical synthesis
Extraction
Research
Active agent concentration
Vacuum distillation of sensitive substances
Liquid mixture separation
