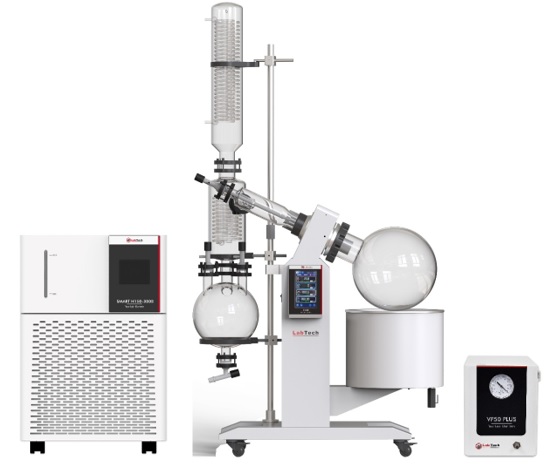

Rotary Evaporator

Pilot-Scale Large Rotary Evaporator, featuring exceptional precision for large-volume distillation. It includes a color digital display to monitor and control rotation speed and temperature, motorized vertical lift, evaporation flasks, and on line sample adding through a PTFE valve. The stand alone heating bath guarantees maximum safety in operations and easy maintenance.

FEATURES:
- The vertical triple-coil condenser has a large condensation area, ensuring high sample
recovery.
- The online feeding function is ideal for large-volume distillation.
- The unique sealing system provides long-lasting corrosion resistance and airtight
performance.
-ʂ The large color touchscreen offers multi-parameter digital display.
- The built-in vacuum controller supports up to 100-step distillation programs.
- Multiple safety protection mechanisms are included.

SPECIFICATIONS:
----MAIN UNIT----
Rotation speed range (rpm): Max 150
Display: LCD
Lift: Motor
Lift stroke (mm): 200
Heating Power (W): 4000
Evaporation Capacity (L): 10 / 20
Condenser Area (m2): 1.5
Evaporation Rate (H2O) (L/H): 5.8
Safety Protection: Dry-Run Protection
Lifting Overload Protection
Over-Temperature Protection
Motor Overcurrent Protection
Residual Current (Leakage) Protection

2100LT Chiller:
- Temp. control range: -20° to +35°C
- Temp. Control Accuracy: ±0.1℃ (PID / Color Touchscreen)
- Refrigeration Capacity: 2100W@25℃
- Pump Capacity: 13L/min@60psi
- Cooling Capacity: 2100W@25℃
:200W@-15℃
- Pump Flow: 12.1L/min
- Eco-Friendly Refrigerant

VP50 vacuum Pump:
Totally oil free, mechanical (diaphragm) vacuum pumps with features of advanced design, low noise level, high efficiency ad long lifespan. The LabTech vacuum pumps are specially designed for laboratory operations to meet the highest expectations of precision, reliability and ease of use. They can be used in a multitude of applications, such as vacuum filtration, degassing, impregnation, drying chambers, rotary evaporations, distillation, gel dryers, gas analytical systems and roughing of wide-range
turbo molecular pumps.
Power (W): 30
Pumping speed (L/min): 50
Vacuum pressure (mbar): 150
Vacuum controller: manual

APPLICATIONS:
Food & Beverage
Pharmaceutical
Natural Products
Fine Chemicals
Petroleum Processing
