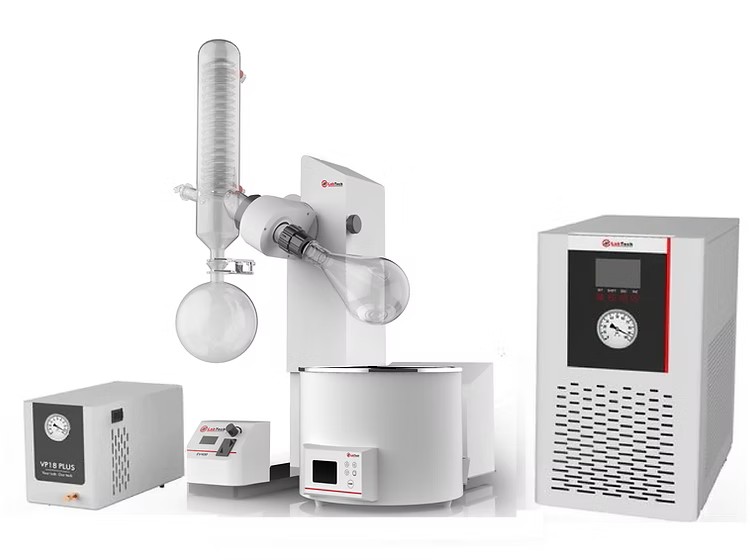

Rotary Evaporator

The LabTech evaporation solutions introduce a new concept in routine distillation/evaporation processes: safety, efficiency and durability to support the lab user's work! With an innovative and ergonomic design, the EV series rotary evaporator includes a color digital display to monitor and control rotation speed and temperature, motorized vertical lift, evaporation flasks, on line sample adding through a PTFE valve and can be accompanied with a LabTech vacuum and cooling accessories to achieve top evaporation efficiency. The stand alone heating bath guarantees maximum safety in operations and easy maintenance.

SPECIFICATIONS:
----MAIN UNIT----
Rotation speed range (rpm): 20-300
Display: LCD
Lift: Motor
Lift stroke (mm): 160
Head tilt angle (°): 0-60
Condenser: Vertical or Diagonal
Cooling surface (cm2): 1200 Standard
1500 Optional
----HEATING BATH----
Temperature range (°C): Ambient-230
Temperature controller mode: P.I.D.
Bath material: SS with PTFE Coating
Temp. control accuracy (°C): ±1 (Water) / ±2 (Oil)
Heating power (W): 1300
Bath capacity: 5L

H50-500 Chiller:
• Temp. control range: -5° to +35°C
• Temp. stability: ±0.3°C (P.I.D. / LCD)
• Refrigeration capacity: 500W
• Pump capacity: 3.5 L/min@10psi
• Dimensions (LxWxH cm): 48x25x47

VP18 PLUS vacuum Pump:
Totally oil free, mechanical (diaphragm) vacuum pumps with features of advanced
design, low noise level, high efficiency ad long lifespan. The LabTech vacuum pumps are specially designed for laboratory operations to meet the highest expectations of precision, reliability and ease of use. They can be used in a multitude of applications, such as vacuum filtration, degassing, impregnation, drying chambers, rotary evaporations, distillation, gel dryers, gas analytical systems and roughing of wide-range
turbo molecular pumps.
Power (W): 30
Pumping speed (L/min):18
Vacuum pressure (mbar/psi): 20/0.29
Vacuum controller: manual

Applications:
Solvent recycling
Solvent distillation
Powder drying
Chemical synthesis
Extraction
Research
Active agent concentration
Vacuum distillation of sensitive substances
Liquid mixture separation
