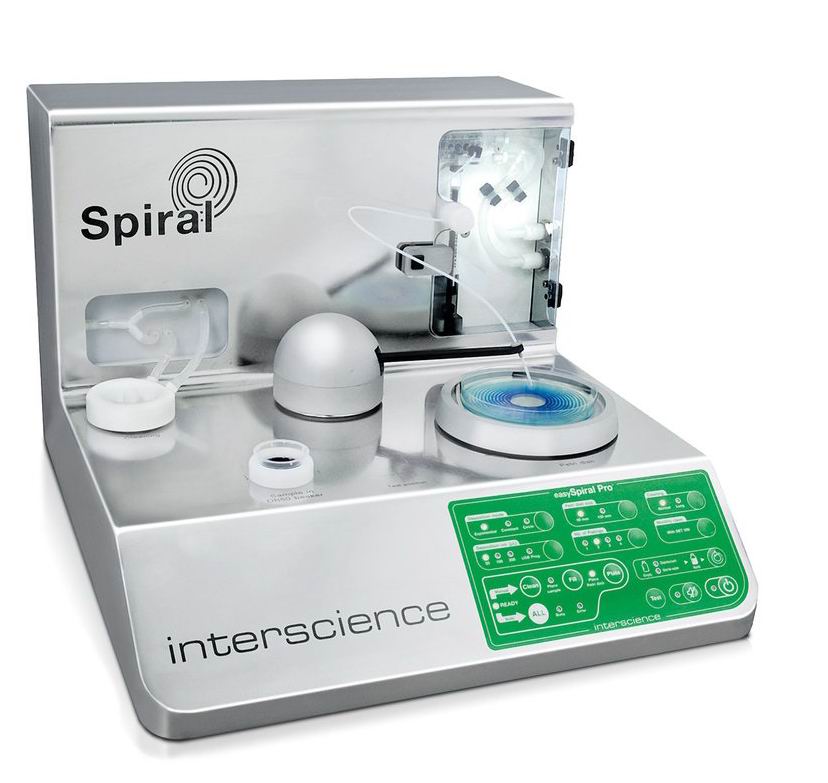

Spiral Plater Inoculator

The easySpiral patented technology allows the automatic plating of your sample on a Petri dish in only 25 seconds with a decreasing concentration replacing up to 4 necessary dilutions with a sensitivity from 300 to 130 000 CFU/mL. easySpiral is equipped with an innovative unique stylus cleaning device, for the guarantee of perfect disinfection of the stylus and no risk of cross-contamination.

THE FASTEST SPIRAL PLATER
~ 25 seconds for a full cycle (disinfection, sample-taking and plating)
~ 2 preset plating modes
~ Revolutionary rotating arm with high-speed movement (Patented)
~ 10 Petri dishes plated in less than 2 minutes (with the same sample)

OVERFLOW TECHNOLOGY
~ Stylus disinfection system: inside and outside by overflow, 8 bars pressure (Patented)
~ No cross contamination
~ Unique patented system by overflow
~ 600 cleanings without changing bottles

CONSUMABLES REDUCED UP TO 75%
~ Reduced budget for consumables
~ No specific consumables needed
~ More space in your laboratory

SPECIFICATIONS:
Sensitivity: from 30 to 10 million CFU/mL
Syringe capacity: 1000 µL
Preset Volume dispensed: 50 or 100 µL
Counting range: 300 to 1.3 x 105 CFU/mL
Full cycle time: 25s
Overflow technology: 8 bars pressure
Cleaning autonomy: 600 cycles (2L bottles)
Successive plating capacity with the same sample: 20 Petri dishes (50 µL)
Automatic monthly cleaning
90 mm Petri dish
Exponential deposition mode
Circle deposition mode
