Polarimeter

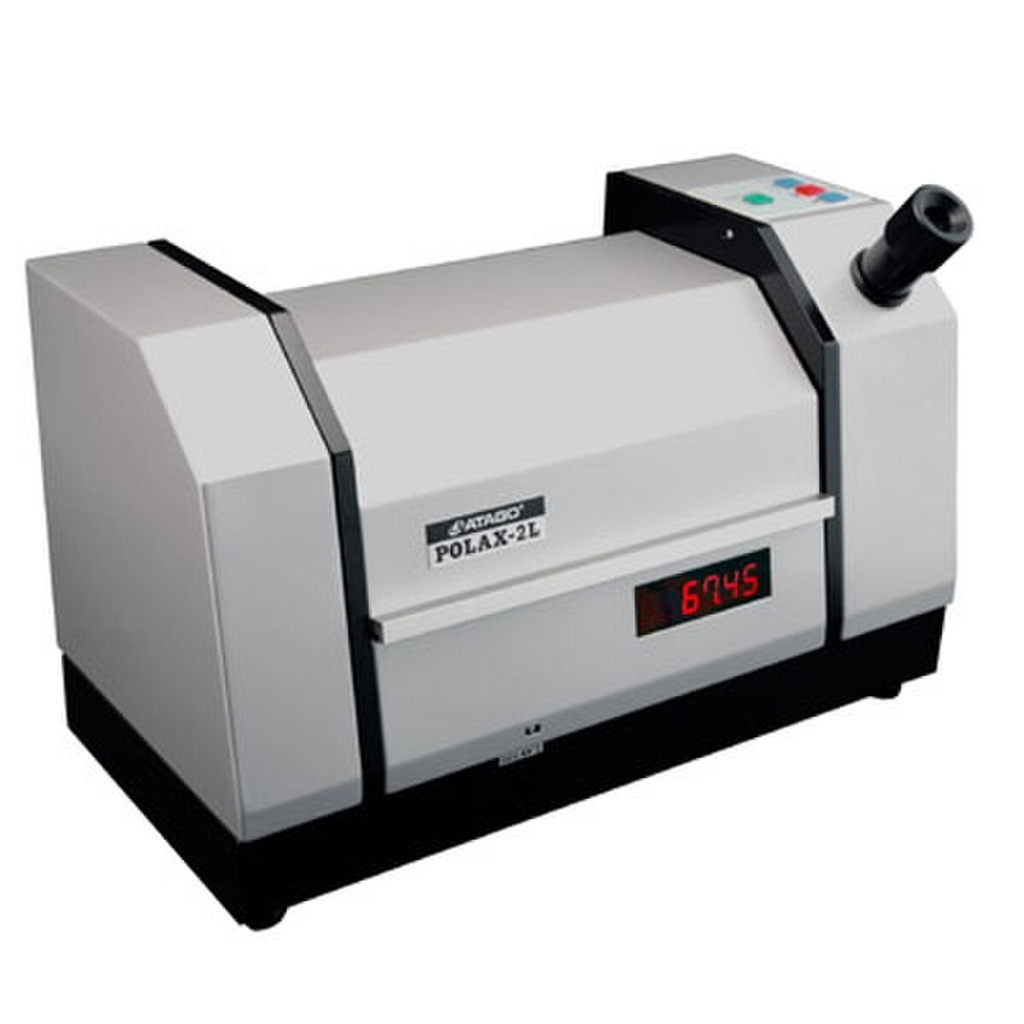

The Atago POLAX-2L is a semi-automatic polarimeter known as an optical rotation meter.
It's the ideal instrument for measuring the optical activity of both inorganic and organic compounds. The Polax-2L is widely used in the sugar, pharmaceutical, chemical, perfume, and educational industries.
Widely used in sugar refineries, university research, flavors, fragrances, essential oils, identification and characterization of chemicals, and measuring sugar concentration and purity in food products.

An added feature of the Polax-2L are the operation switches. R(+) or Right Rotation rotates the analyzer slowly to the right (in the slow mode). L(-) or Left Rotation rotates the analyzer slowly to the left (in the slow mode). Temp or Shift switch provides a faster rotation (in the shift mode) when pressed simultaneously with either the (+) switch or the (-) switch.

SPECIFICATIONS:
Scale : Angle of rotation, International sugar scale
Measurement Range: Angle of rotation: -179.95° to +180°,
International sugar scale: -130°Z to +130°Z
Resolution; Angle of rotation: 0.05°, International sugar scale: 0.1°Z
Accuracy: Angle of rotation: ±0.1°, International sugar scale: 0.3°Z
Temperature Compensation Range: 41 to 104°F (5 to 40°C)
Light Source: LED with interference filter
Measurement Wavelength: 589nm (equivalent to the sodium-D line spectrum)
