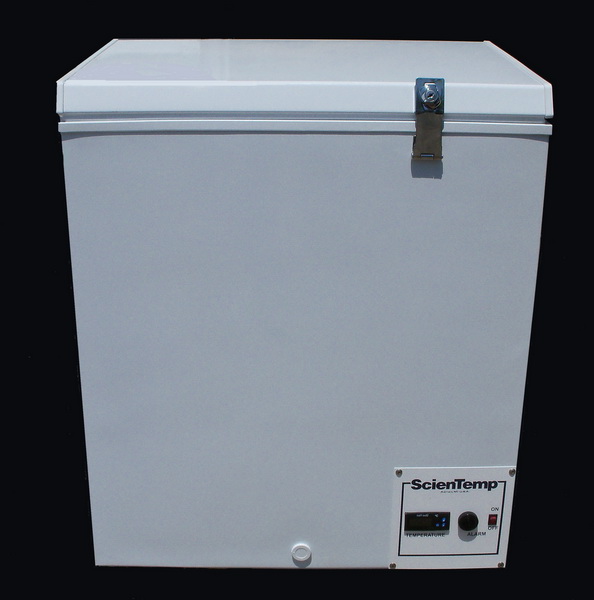

Chest Freezer

Made in United States
Ships from United States
https://www.labequip.com/web/image/product.template/33746/image_1920?unique=5c90ad1

The standard features of this 5 Cu/Ft Scientemp super cold countertop freezer include a Microprocessor-based controller, which sounds an audible alarm. The temperature Range is 0C to -34C. It also features manual defrost and
keylocking door. Unit can be ordered with castors (locking or non-locking) at additional cost. A phone dialer back-up system is available at a small additional cost; if the alarm goes off it phones a number (like a pager or phone). Freezer racks are availabe at additional cost. The optional temperature recorder shown in the attached photograph is available at additional cost. See attached PDF for further details.

$ 1,764.00 1764.0 USD $ 1,764.00

$ 1.00

Not Available For Sale

This combination does not exist.

Contact Us
General Testing

Terms and Conditions


Stock Number N1286
Model 34-05 (-34C)
Manufacturer Scientemp
Product Brochure
Warranty 18 MONTH MANUFACTURER'S WARRANTY ON PARTS AND LABOR

Capacity 142 L / 5 cu ft
Elc NO
Inside 23.5"W x 15.5"D x 26"deep
Outside 28.5"W x 22.5"D x 33"H
Volts Specify 115 or 220
Hertz 50/60

Model 34-05 Chest Freezer

The Model 34-05 is a compact chest-style freezer designed for reliable low-temperature storage in laboratory and research environments. Featuring CFC-free refrigeration, sturdy welded steel construction, and digital temperature control, this 5 cubic foot unit provides safe and economical cold storage.

Specifications

Feature Specification
Model 34-05
Capacity 5 cubic feet
Temperature Range 0°C to –34°C / 32°F to –30°F
Exterior Dimensions 36"H x 25"W x 22"D
Interior Dimensions 27"H x 20"W x 16.5"D
Insulation Polyurethane
Door Keyed Hasp Lock
Casters (4) 2" Locking
Temperature Controller Digital Display
Alarm Audible Only

Exterior height includes casters
Depth measurement includes hinges and handle

Refrigeration System

Component Specification
Compressor 1/8 hp
Refrigerant R-404A
Voltage Options 115/60/1
Refrigerant Control Capillary Tube
Evaporator Cold Wall
Defrost Manual
Condenser Shell
Air Circulation Gravity
Running Amps 8 amps (115V)

Features

Safe, Economical & Easy Access

Freezers are manufactured using environmentally safe urethane foam insulation. Key-locking counterbalanced lid with non-magnetic gasket.

CFC Free

All products are manufactured using CFC free, non-toxic, non-combustible and non-ozone depleting refrigerant. Compressors are permanently lubricated and hermetically sealed.

Sturdy Construction

Outer cabinet is made of welded steel with high-impact textured powder coat finish. Inner compartment is made of welded steel, epoxy enamel finish.

Temperature Display / Alarm

Digital readout displays internal temperature in either Degrees Centigrade or Fahrenheit. An audible alarm sounds to alert personnel of a rise in internal temperature. (No Battery Backup)

Optional Accessories and Upgrades

  • 6" Temperature Chart Recorder
  • Voice Pager / Dialer
  • Internal Fan
  • Internal Heater
  • CAL9500 Temperature Controller for Ramp/Soak Control
  • Calgrafix Software (only available with upgrade to CAL9500 Controller)

Note: Some items listed above will require an end rack to be added to the freezer to accommodate the accessories.
