Digital Portable pH Meter

https://www.labequip.com/web/image/product.template/34024/image_1920?unique=96dd046

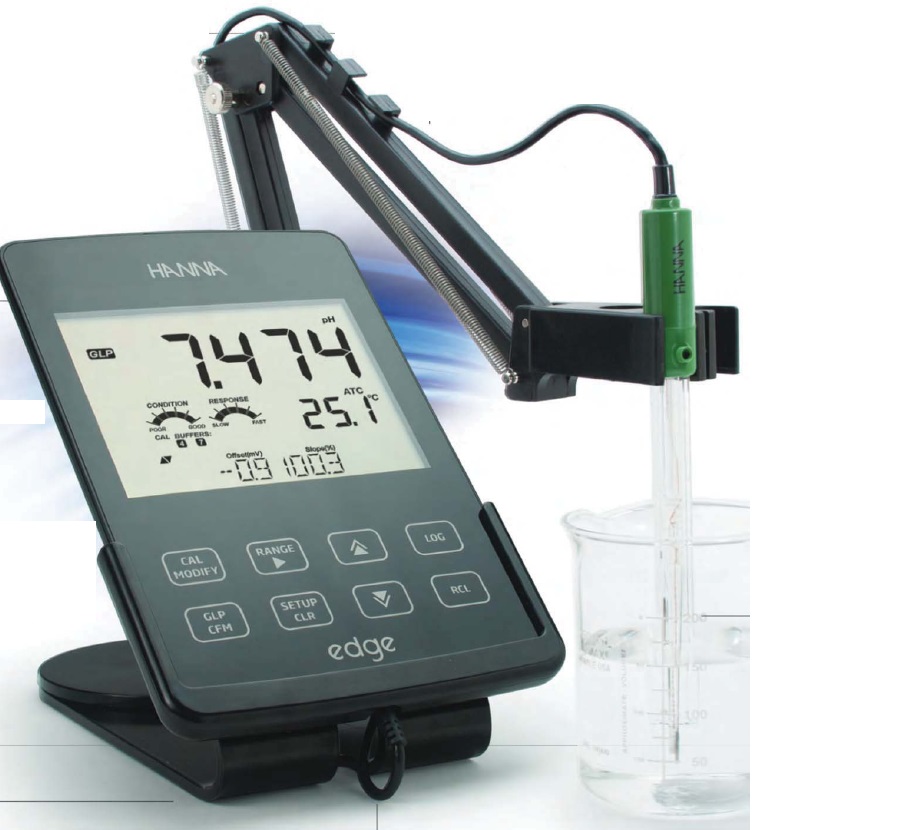

The Hanna edge is thin and lightweight, measuring just ½ in. thick and weighing less than 9 ounces. This makes it easily portable, yet includes a cradle to accommodate it for bench-top work. edge has an incredibly wide viewing angle, 5.5 in. LCD and a sensitive capacitive touch keypad edge measures pH, conductivity or dissolved oxygen through its unique digital electrodes. These digital electrodes are auto-recognized. Providing sensor type, calibration data and a serial number, and they connect to edge with an easy to plug-in 3.5mm connector. edge's versatile design is equally at home in your hand, on a lab bench or mounted on a wall. edge simplifies measurement, configuration, calibration, diagnostics, logging and transferring data to a computer or a USB drive.
edge features Hanna's exclusive CAL-CHECK to warn you if the electrode you are using is not clean or if your buffers are contaminated during calibration. We have also added to CAL-CHECK for sensors with matching pin: now it warns you if the pH bulb is cracked, and if the junction of the electrode is compromised.
The electrodes used with edge are nearly as advanced as the edge itself: featuring a built-in microchip that stores sensor type, ID, and calibration information that is automatically retrieved by edge once the electrode is plugged in.
~ Stored pH calibration information includes: calibrated buffers, date, time, offset and slope characteristics of the electrode.
~ Conductivity calibration information includes: calibrated conductivity standards, date, time, and cell constant of the sensor.
~ Dissolved oxygen calibration information includes: standards used for calibration, date, time, altitude and salinity correction.
~ These digital electrodes also feature an easy to plug in 3.5 mm connector so you never have to worry about the right angle or aligning pin settings.
~ Logging: stores up to 1000 records: 200 records (log-on-demand and stability logging); 600 records interval logging
~ Connectivity: 1 USB port for storage; 1 micro USB port for charging and PC connectivity

pH:
~ Range: standard mode: -2.00 to 16.00 pH, -2.000 to 16.000 pH; ±1000 mV; basic mode: -2.00 to 16.00 pH; ±1000.0 mV
~ Resolution: standard mode: 0.01 pH; 0.001 pH; basic mode: 0.1 mV
~ Accuracy (@25ºC/77ºF): ±0.01 pH; ±0.002 pH; ±0.2 mV
~ Calibration Points: 5 in standard mode; 3 in basic mode
~ Calibration Buffers: standard mode: 1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45 and two custom buffers, basic mode: 4.01, 6.86, 7.01, 9.18, 10.01
~ Temperature Compensation: ATC (-5.0 to 100.0ºC; 23.0 to 212.0°F)*
~ Electrode Diagnostics: standard mode: probe condition, response time and out of calibration range, glass and reference junction diagnostics (HI11311 & HI12301 only)

Temperature:
~ Range: -20.0 to 120.0°C; -4.0 to 248.0°F
~ Resolution: 0.1°C; 0.1°F
~ Accuracy: ±0.2°C; ±0.4°F

$ 494.00 494.0 USD $ 494.00

$ 1.00

Not Available For Sale

This combination does not exist.

Contact Us
General

Terms and Conditions


Stock Number N1258
Model HI 2020 (edge pH kit)
Manufacturer Hanna Instruments
Product Brochure
Warranty 2 YEAR MANUFACTURER'S WARRANTY

Elc N/A
Outside 8 in.W x 5.5 in.D x 0.5 in.H

Comes complete with:
HI11310 glass body, refillable pH electrode with temperature sensor
pH 4 buffer solution sachets
pH 7 buffer solution sachets
pH 10 buffer solution sachets
electrode cleaning solution sachets
USB cable
benchtop docking station with electrode holder
wall mount cradle
5 VDC power adapter
instruction manual
quality certificate.

Optional accessories available at additional cost:
HI 10530 Triple ceramic, double junction, glass body, refillable pH electrode with conical tip and temperature sensor
HI10430 Triple ceramic, double junction, glass body, refillable pH electrode with temperature sensor
HI 11310 Glass body, double junction, refillable pH/temperature electrode
HI11311 Glass body, double junction, refillable pH/temperature electrode with enhanced diagnostics
HI12300 Plastic body, double junction, gel filled, non refillable pH/temperature electrode
HI12301 Plastic body, double junction, gel filled, non refillable pH/temperature electrode with enhanced diagnostics
HI763100 EC/temperature probe
HI764080 DO/temperature probe
HI70004P pH 4.01 Buffer Sachets, 20 mL (25 pcs.)
HI70007P pH 7.01 Buffer Sachets, 20 mL (25 pcs.)
HI70010P pH 10.01 Buffer Sachets, 20 mL (25 pcs.)
HI7001L pH 1.68 Buffer Solution, 500 mL
HI7004L pH 4.01 Buffer Solution, 500 mL
HI7006L pH 6.86 Buffer Solution, 500 mL
HI7007L pH 7.01 Buffer Solution, 500 mL
HI7009L pH 9.18 Buffer Solution, 500 mL
HI7010L pH 10.01 Buffer Solution, 500 mL
HI8004L pH 4.01 Buffer Solution in FDA approved bottle, 500 mL
HI8006L pH 6.86 Buffer Solution in FDA approved bottle, 500 mL
HI8007L pH 7.01 Buffer Solution in FDA approved bottle, 500 mL
HI8009L pH 9.18 Buffer Solution in FDA approved bottle, 500 mL
HI8010L pH 10.01 Buffer Solution in FDA approved bottle, 500 mL
HI70300L Storage Solution, 500 mL
HI80300L Storage Solution in FDA approved bottle, 500mL
HI70000P Electrode Rinse Sachets, 20 mL (25 pcs.)
HI7061L General Cleaning Solution, 500 mL
HI7073L Protein Cleaning Solution, 500 mL
HI7074L Inorganic Cleaning Solution, 500 mL
HI7077L Oil & Fat Cleaning Solution, 500 mL
HI8061L General Cleaning Solution in FDA approved bottle, 500 mL
HI8073L Protein Cleaning Solution in FDA approved bottle, 500 mL
HI8077L Oil & Fat Cleaning Solution in FDA approved bottle, 500 mL
HI7082 3.5M KCl Electrolyte, 4x30 mL, for double junction electrodes
HI8082 3.5M KCl Electrolyte in FDA approved bottle, 4x30 mL, for double junction electrodes
HI70030P 12880 µS/cm, 20 mL sachets (25 pcs.)
HI70031P 1413 µS/cm, 20 mL sachets (25 pcs.)
HI70039P 5000 µS/cm, 20 mL sachets (25 pcs.)
HI7030M 12880 µS/cm, 230 mL bottle
HI7031M 1413 µS/cm, 230 mL bottle
HI7033M 84 µS/cm, 230 mL bottle
HI7034M 80000 µS/cm, 230 mL bottle
HI7035M 111800 µS/cm, 230 mL bottle
HI7039M 5000 µS/cm), 230 mL bottle
HI7030L 12880 µS/cm, 500 mL bottle
HI7031L 1413 µS/cm, 500 mL bottle
HI7033L 84 µS/cm, 500 mL bottle
HI7034L 80000 µS/cm, 500 mL bottle
HI7035L 111800 µS/cm, 500 mL bottle
HI7039L 5000 µS/cm, 500 mL bottle
HI7037L 100% NaCl sea water standard solution, 500mL bottle
HI8030L 12880 µS/cm, 500 mL FDA approved bottle
HI8031L 1413 µS/cm, 500 mL FDA approved bottle
HI8033L 84 µS/cm, 500 mL FDA approved bottle
HI8034L 80000 µS/cm, 500 mL FDA approved bottle
HI8035L 111800 µS/cm, 500 mL FDA approved bottle
HI8039L 5000 µS/cm, 500 mL FDA approved bottle
HI7040L Zero Oxygen Solution HI7041S Refilling Electrolyte Solution, 30 mL
HI764080A/P 5 spare membranes
HI76404B Electrode holder
HI2000WC Wall cradle
HI2000BC Bench cradle
