BVS3000 Brookfield Viscosity Liquid Bath System
Constant temperature liquid bath permits testing of samples without the risk of sample temperature rise. After cooling in the air bath, the sample must be transferred to the balsa cell carrier for testing with the Rotational viscometer. If the sample is not tested quickly, there is the risk of sample temperature rise. The Brookfield Viscosity Liquid Bath System eliminates this risk by permitting the sample to be tested in a constant temperature environment. The Rotational viscometer mounts directly on the bath and the samples are rotated into position under the spindle by means of a built-in turntable. Cooling system maintains temperature with ±0.05°C stability in the range of +10°C to –55°C. Bath temperature is displayed in digital format.
Features
- Permits viscosity measurements without the risk of temperature increase
- 10 sample turntable
- Mechanically refrigerated with digital indicating temperature control
- Operating range to –55°C
Specifications
| Conforms to |
ASTM D2983 |
| Sample Capacity |
10 samples |
| Temperature Range |
+10°C to –55°C |
| Temperature Control Stability |
±0.05°C |
| Electrical Requirements |
115V 60Hz, Single Phase, 16A
220-240V 50 or 60Hz, Single Phase, 12A |
| Dimensions (L×W×H) |
17×24×25 in. (43×61×25 cm) |
| Net Weight |
265 lbs (120 kg) |
| Shipping Weight |
300 lbs (136 kg) |
| Shipping Dimensions |
13.9 Cu. ft. |
Ordering Information
| Catalog No. |
Description |
Electrical |
| K34710 |
BVS3000 Brookfield Viscosity Liquid Bath System |
115V 60Hz |
| K34711 |
BVS3000 Brookfield Viscosity Liquid Bath System |
220-240V 50Hz |
| K34712 |
BVS3000 Brookfield Viscosity Liquid Bath System |
220-240V 60Hz |

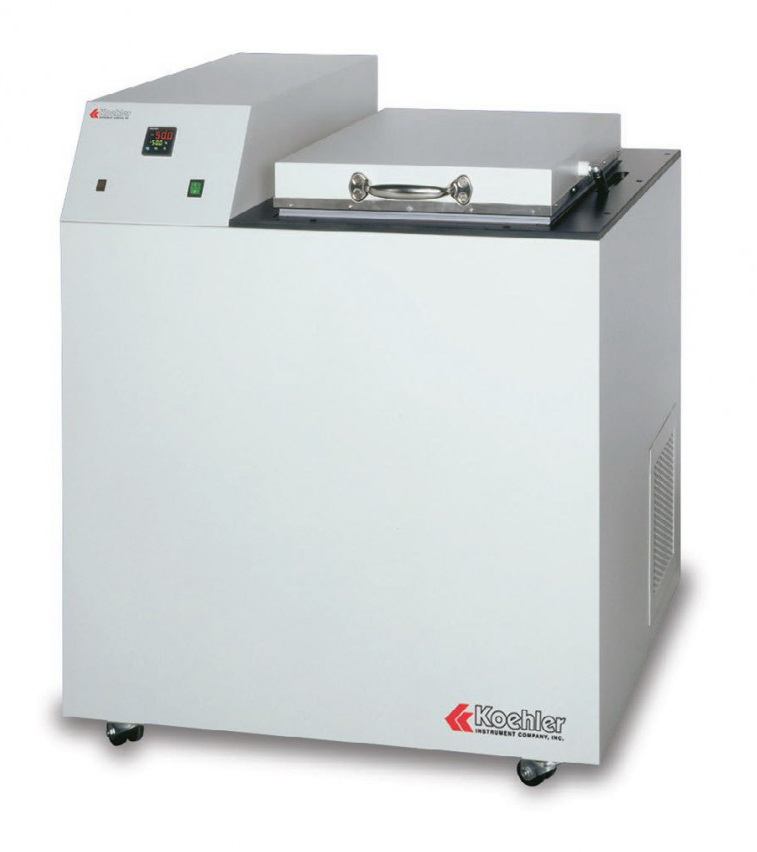

BVS4000 Brookfield Viscosity Air Bath System
Test Method
Determines the low temperature, low shear rate viscosities of gear oils, automatic transmission fluids, hydraulic oils and other fluid lubricants by use of a rotational viscometer.
Mechanically refrigerated cold cabinet prepares samples for dynamic viscosity determinations on petroleum lubricants. A built-in turntable rotates the samples at 4rpm per specifications. Cooling system maintains cabinet temperature within ±0.1°C at temperatures as low as –50°C. Cabinet temperature is displayed in digital format on the front panel. Cabinet accommodates sixteen (16) sample cells with cell carriers. Includes insulated cover.
Features
- Conforms to ASTM D2983 and related specifications
- Mechanically refrigerated with digital indicating temperature control
- Operating range to –50°C
- Sixteen sample capacity
Specifications
| Conforms to |
ASTM D2983; IP 267 Method A; ISO 9262; CEC-L-18A |
| Capacity |
16 sample cells with cell carriers |
| Temperature Range |
+10°C to –50°C |
| Temperature Control Accuracy |
±0.1°C |
| Sample Rotation |
4rpm |
| Electrical Requirements |
115V 60Hz, Single Phase, 16A
220-240V 50 or 60Hz, Single Phase, 12A |
| Dimensions (L×W×H) |
36×28×43 in. (91×71×109 cm) |
| Net Weight |
315 lbs (143 kg) |
| Shipping Weight |
380 lbs (172 kg) |
| Shipping Dimensions |
38.9 Cu. ft. |
Ordering Information
| Catalog No. |
Description |
Electrical |
| K34700 |
BVS4000 Brookfield Viscosity Air Bath System |
115V 60Hz |
| K34701 |
BVS4000 Brookfield Viscosity Air Bath System |
220-240V 50Hz |
| K34702 |
BVS4000 Brookfield Viscosity Air Bath System |
220-240V 60Hz |
