  2. Freezing Point Apparatus for Aviation Fuels

Freezing Point Apparatus for Aviation Fuels

Made in United States
Ships from United States
https://www.labequip.com/web/image/product.template/33709/image_1920?unique=60e5716

Determines the freezing point of aqueous engine coolant solutions by cooling a sample with continuous agitation until a plateau is observed in a time-temperature curve.

K29750 Freezing Point Apparatus
Determines freezing points of aqueous engine coolants.

$ 4,206.00 4206.0 USD $ 4,206.00

$ 1.00

Not Available For Sale

This combination does not exist.

Contact Us
Petroleum Testing

Terms and Conditions


Stock Number N1184
Model K29750 / K29758
Manufacturer Koehler Instrument
Standard Test Methods ASTM D1177
Product Brochure
Warranty 1 YEAR MANUFACTURER'S WARRANTY

COMES COMPLETE WITH:
200mL freezing tube with drilled cork
outer flask
motorized stirrer
clamps and stand

OPTIONAL ACCESSORIES AVAILABLE AT ADDITIONAL COST:
250-000-75F ASTM 75F Thermometer Range: -35 to +35°F 250-000-76F ASTM 76F Thermometer Range: -65 to +5°F

Elc NO
Volts Specify 115 or 220
Hertz 50/60

Freezing Point of Aqueous Engine Coolant Solution

Test Method

Determines the freezing point of aqueous engine coolant solutions by cooling a sample with continuous agitation until a plateau is observed in a time-temperature curve.

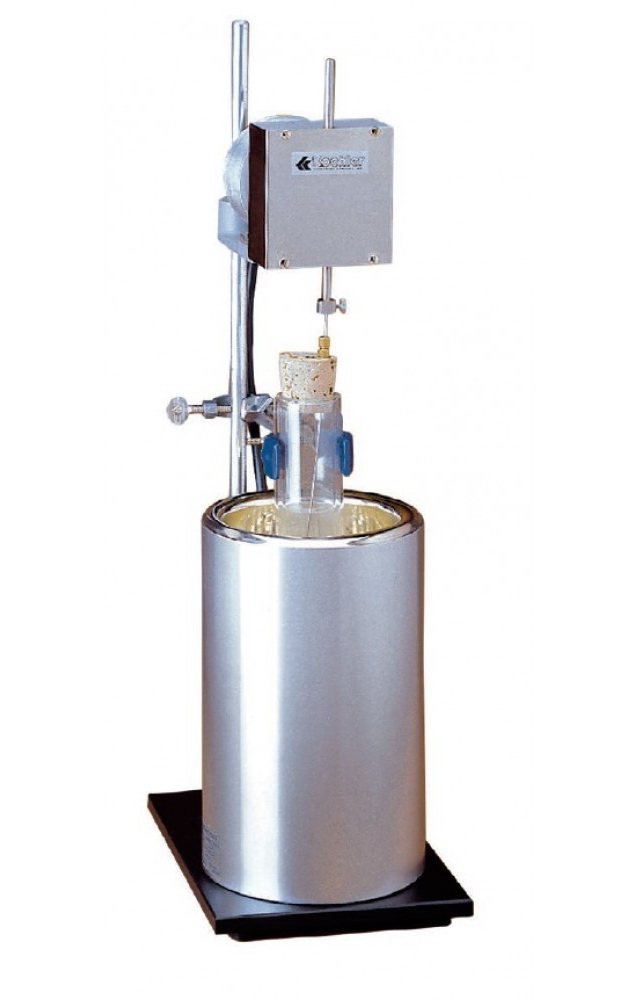

Freezing Point Apparatus

Determines freezing points of aqueous engine coolants. Includes 200mL freezing tube with drilled cork, outer flask, motorized stirrer, clamps and stand.

  • Conforms to ASTM D1177 specifications

Electrical Requirements

  • 115V 60Hz
  • 220-240V 50Hz
  • 220-240V 60Hz

Ordering Information

Catalog No. Description
K29750 Freezing Point Apparatus, 115V 60Hz
K29758 Freezing Point Apparatus, 220-240V 50Hz
K29759 Freezing Point Apparatus, 220-240V 60Hz
250-000-75F ASTM 75F Thermometer Range: –35 to +35˚F
250-000-76F ASTM 76F Thermometer Range: –65 to +5˚F

Color of Maleic and Phthalic Anhydrides

Test Method

Molten samples of maleic or phthalic anhydride are compared with Platinum-Cobalt color standards for determining sample purity and the qualitative stability in the presence of contaminants. High color content normally indicates contamination.

Anhydride Purity Bath

Electrically heated aluminum block features a microprocessor-based temperature controller with overtemperature protection circuitry and a dual LED temperature display. The heating unit provides temperature stability, heating rates, and minimal temperature gradients which exceed ASTM specifications, and is housed in an insulated steel cabinet with a chemically resistant painted finish. Up to six samples can be tested at a time using Nessler tubes. Visual color comparisons are made against solutions of Platinum-Cobalt color standards.

  • Conforms to ASTM D3366 specifications
  • Redundant overtemperature protection circuitry
  • Microprocessor-based temperature controller

Specifications

Parameter Value
Dimensions (L x W x H) 12 x 12 x 21 in. (31 x 31 x 54 cm)
Net Weight 65 lbs (30 kg)
Shipping Weight 76 lbs (35 kg)
Electrical Requirements 115V 60Hz or 220-240V 50/60Hz

Ordering Information

Catalog No. Description
K56300 Anhydride Purity Bath, 115V 60Hz
K56390 Anhydride Purity Bath, 220-240V 50/60Hz
K56306 Nessler Tubes (set of 6)
