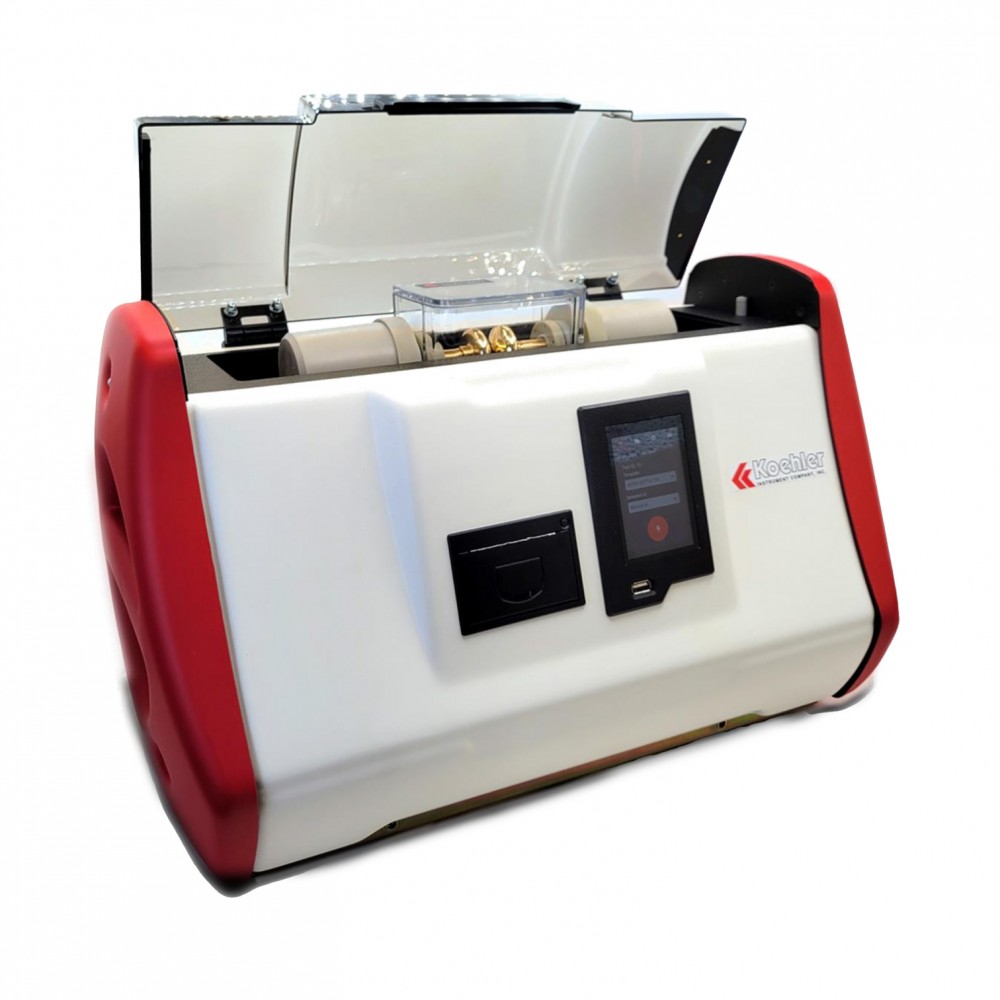

Dielectric Strength Petroleum Tester

The majority of high-voltage transformers, cables, switchgears, transducers, capacitors, and rectifiers use insulating oils for insulating electrically live parts and to carry off thermal energy. The quality of the insulating oil must be checked at regular intervals to ensure a long equipment service life. The most important requirement of an insulating oil is a high dielectric strength. Determination of the dielectric breakdown voltage of insulating oils provides an early detection method for any reduction in the insulating properties.

Conforms to ASTM D877, D1816, IEC 60156 and related test specifications
Output voltage: K16185: 75kV, K16186: 90kV ,K16187: 105kV
Built-in printer offers direct evaluation and reporting of results
Internal battery, external 12V power supply
Automatic Vernier function for electrode gap spacing
Measurement of silicone-based oils
Internal temperature measurement of oil sample
USB flash drive compatibility

SPECIFICATIONS:
Conforms to the specifications of: ASTM D877, D1816 ; IEC 60156
Output Voltage: Up to 75kV rms symmetrical
Voltage measurement accuracy:
• K16185: 75kV
• K16186: 90kV
• K16187: 105kV
Voltage slew rate:
•K16185: 0 - 75kV ± 1kV• K16186: 0 - 90kV ± 1kV
• K16187: 0 - 105kV ± 1kV
Resolution (displayed): 0.1kV
Operating temperature: 0 – 50°C
Storage Temperature: -20°C to + 60°C
Temperature measurement resolution: ±1°C
Power frequency: 48 – 63Hz
High voltage shutoff time after breakdown, μs: < 10 (4 typical)
Measuring cell volume, cm3: 500
