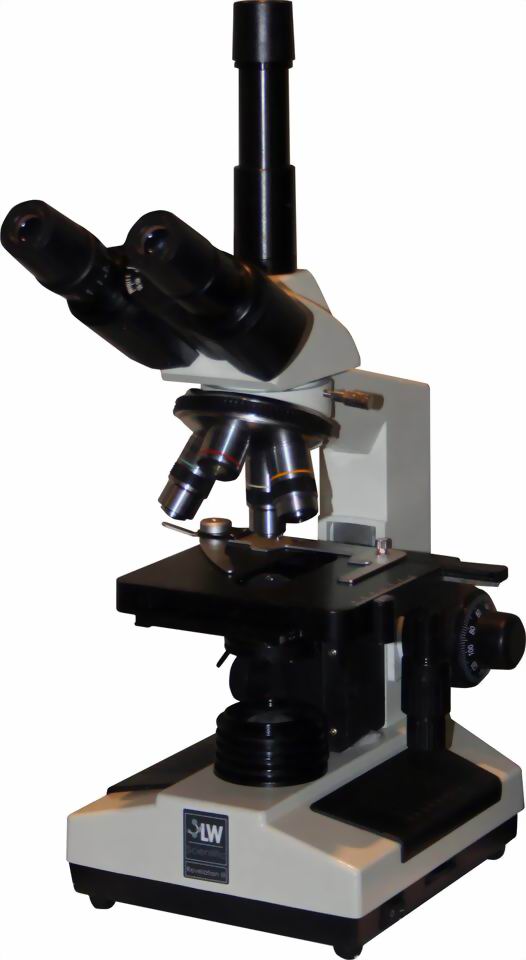

Trinocular Microscope

The Revelation III professional-grade microscope is a best-seller into physician and veterinarian clinics, as well as universities and medical schools. Equipped for performance, its features include titanium-finished DIN plan objectives and a 30-year anti-fungal coating. The Revelation III is the choice for superior performance at a great value!
Trinocular head and LED light. Quadruple forward-facing nosepiece

STAGE:
~ Mechanical stage (140mm x 140mm)
~ Coaxial drive controls
~ Range of traverse is 73mm x 43mm
~ Stage locking lever
~ Slow-close hydraulic slide finger

FOCUS:
~ Coarse adjustment: range of 30mm
~ Fine adjustment: graduation of 2ìm
~ Tension control knob

ILLUMINATION:
~ Moveable Abbe condenser, NA 1.25, rack & pinion
~ Iris diaphragm
~ 110V/220V switchable electronics
~ 12V DC battery input available
~ Light Options:
~ Variable halogen light source (12V/20W bulb)
~ Variable LED light source (7W bulb)

Included accessories:
~ three 0.5 amp fuses,
~ mirror attachment (for field use),
~ blue and green filters,
~ dust cover,
~ immersion oil,
~ spare bulb,
~ manual

Plan objectives (4X, 10X, 40X, 100XR (oil)) are parfocal, parcentric and color-coded
