Ultrasonic Cleaner

Ships from United States

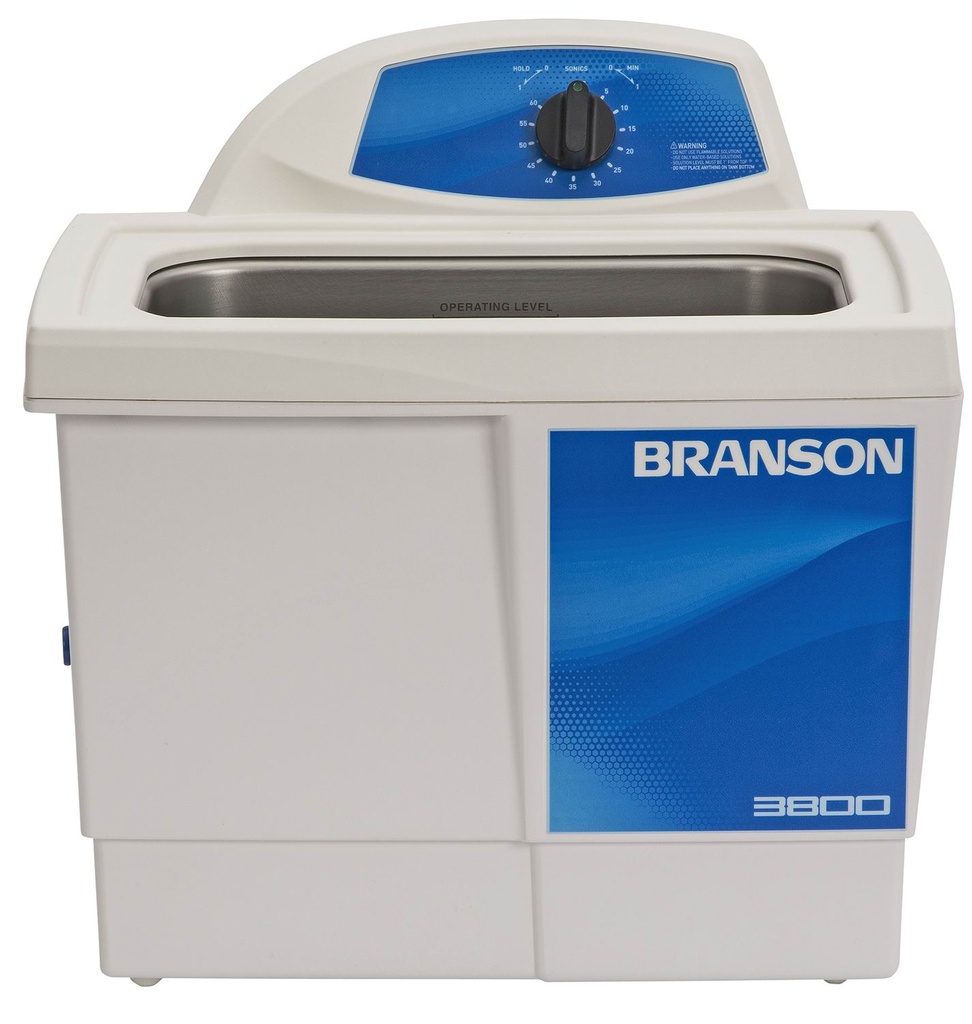

The Bransonic M Ultrasonic Cleaning Bath is the leading mechanical ultrasonic bath. It's designed for performance, control, durability and reliability for a variety of applications. All Bransonic baths can also be used for cell separation, sample preparation and degassing of liquids.
The model 3800 has a capacity of 1.5 gallon (5.7L)

Features
40kHz Industrial Transducers
60-minute Mechanical Timer (can be set to run continuously)
Tower Control Panel
Built-in Side Mounted Drain

Note: Parts should not be allowed to reset on tank bottom, see accessories for options.

$ 1,452.00 1452.0 USD $ 1,452.00

$ 1.00

This combination does not exist.

Add to Inquiry List

General Testing

Terms and Conditions

Stock Number	N1004
Model	M3800
Manufacturer	Branson Ultrasonics (Bransonic)
Product Brochure	n1004.pdf
Warranty	2 YEAR MANUFACTURER'S WARRANTY

COMES COMPLETE WITH:
Cover

OPTIONAL ACCESSORIES AVAILABLE AT ADDITIONAL COST:
perforated tray
solid tray
beaker cover
support rack

Elc	UL
Inside	11.5"L x 6"W x 6"deep
Outside	16 in.W x 12 in.L x 14.5 in.H
Volts	120-230
Hertz	50/60

Bransonic M Series Ultrasonic Baths

The Bransonic M Series ultrasonic cleaners deliver precision and reliability for demanding laboratory applications. Featuring a 60-minute mechanical timer with continuous operation capability, these units provide consistent, dependable performance in a chemical-resistant plastic body design.

Key Features

Sweep frequency technology eliminates standing waves and creates consistent cavitation throughout the tank
40 kHz rugged industrial transducers for effective cleaning
Control tower panel positioned above and behind the cleaning tank for easy access and protection from cleaning solutions
Chemical-resistant plastic body construction
Built-in pour drains on 0.5- and 0.75-gallon models
Tank drains with valves on 1.5-gallon and larger models
Tank cover included with all models

Technical Specifications

Specification	Model 1800	Model 2800	Model 3800	Model 5800	Model 8800
Tank Capacity	1.9 L / 0.5 gal	2.8 L / 0.75 gal	5.7 L / 1.5 gal	9.5 L / 2.5 gal	20.8 L / 5.5 gal
Tank Size (L×W×D)	6 × 5.5 × 4 in 150 × 140 × 100 mm	9.5 × 5.5 × 4 in 230 × 140 × 100 mm	11.5 × 6 × 6 in 290 × 150 × 150 mm	11.5 × 9.5 × 6 in 290 × 240 × 150 mm	19.5 × 11.5 × 6 in 495 × 290 × 150 mm
Overall Size (L×W×D)	9.9 × 12 × 11.9 in 251 × 304 × 302 mm	13.3 × 12 × 11.9 in 337 × 304 × 302 mm	15.6 × 12.5 × 14.8 in 397 × 317 × 377 mm	15.6 × 15.8 × 14.9 in 397 × 401 × 378 mm	23.5 × 18.3 × 15.4 in 596 × 466 × 391 mm
Weight	7 lb / 3.2 kg	9 lb / 4.1 kg	12 lb / 5.4 kg	14 lb / 6.4 kg	26 lb / 11.8 kg
Frequency	40 kHz	40 kHz	40 kHz	40 kHz	40 kHz
Drain	No	No	Yes	Yes	Yes

Ordering Information

Voltage	Model 1800	Model 2800	Model 3800	Model 5800	Model 8800
120 V	M1800 CPX-952-116R	M2800 CPX-952-216R	M3800 CPX-952-316R	M5800 CPX-952-516R	M8800 CPX-952-816R
230/240 V	M1800-E CPX-952-136R	M2800-E CPX-952-236R	M3800-E CPX-952-336R	M5800-E CPX-952-536R	M8800-E CPX-952-836R
