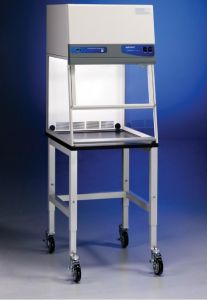

This 4' wide Purifier Vertical Clean Bench directs HEPA-filtered air downward over the work area to provide ISO Class 5 (formerly Class 100) conditions and protect your work from particulate contamination. Applications for clean benches include plant tissue culture, media plate preparation, electronics inspection, medical device assembly and pharmacy drug preparation. Because they do not provide protection to the user, they should not be used in conjunction with biohazardous material, toxins or radionuclides.
Nominal downflow velocity of 45-65 fpm
Aerodynamic air foil
Supply HEPA filter, 99.99% efficient on particles 0.3 micron
ISO Class 5 air (formerly Class 100 per Federal Standard 209E)
Variable speed built-in blower with motorized impeller and solid state control rated for 10 amps
Intrinsically-sound, negative pressure design
Minihelic pressure gauge
UV-resistant, glacier white and gray, powder-coated aluminum and steel construction
UV-opaque and resistant 1/4 in. thick tempered safety glass sash and sides
Light and blower switches
9.4 in. high sash opening
Ergonomic 10° angled and hinged sash that pivots upward, locks to a loading height of 20 in. and has wiping seals to promote ISO Class 5 conditions
Two utility ports with iris openings and plugs
Built-in Guardian Airflow Monitor that continuously monitor downflow airflow and has two LED lights to indicate when airflow is within or outside set point range.
254 nm UV lamp with 3-way switch (fluorescent, UV and off) and protection panel interlocked with the UV lamp that closes the sash opening
Supporting work surface. See Solid Epoxy Dished Work Surfaces
Supporting base. See Adjustable Height Base Stands
Labconco also offers Purifier Horizontal Clean Benches that direct HEPA-filtered air horizontally over the work area and Purifier Filtered PCR Enclosures, which are specialized vertical clean benches designed for polymerase chain reactions - please request pricing.
The following link provides additional information from the manufacturer's brochure. Click to open the PDF in a new window or right-click to download it: Labconco 3970400 Laminar Flow Clean Bench Hood
or copy the following into your browser address window: labequip.com/stock/pictures/n1508.pdf
Made in USA.
This item ships from Kansas City, MO.
