The Copper Strip Tarnish Test assesses the relative degree of corrosivity of petroleum products, including aviation fuels, automotive gasoline, natural gasoline, solvents, kerosene, diesel fuel, distillate fuel oil, lubricating oil and other products. A polished copper strip is immersed in 30mL of sample at elevated temperature. After the test period, the strip is examined for evidence of corrosion and a classification number from 1-4 is assigned based on a comparison with the ASTM Copper Strip Corrosion Standards. For aviation fuels and natural gasoline, the sample tube is placed inside a stainless steel pressure vessel during testing.

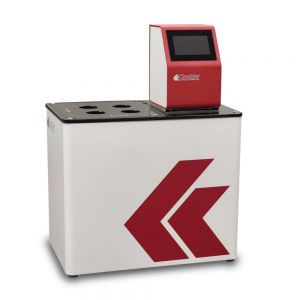

Temperature-controlled water bath immerses Copper Strip Corrosion Test Bombs at the required depth per ASTM specifications. Use for testing aviation gasoline, aviation turbine fuel and natural gasoline. Fully insulated, double-wall stainless steel construction. Choice of four-bomb and eight-bomb models. Optional removable test tube rack converts four-bomb model for testing of products not requiring corrosion bomb.
Conforms to the Specifications of: ASTM D130, D4048; IP 154 FSPT DT-28-65; ISO 2160; DIN 51759; FTM 791-5309, FTM 791-5325; NF M 07-015
Capacity: 4 Copper Strip Corrosion Test Bombs
Range: Ambient to 221°F (105°C)
Control Stability: ±0.09°F (±0.05°C)
Bath Medium: 6.1 gal (23.1 L) water
ADDITIONAL ACCESSORIES (extra cost):
K64330-6B-8T Optional Rack for 6-Bomb 8-Tube Conversion (K64330/K64339 Models)
K25200 Copper Strip Corrosion Test pressure vessel
K25080 Copper Test Strip. 12.5x1.5-3.0mm x 75mm to ASTM specifications
332-004-004 Test Tube. 25 x 150mm
332-004-002 Viewing Test Tube - Protects copper strip during inspection or storage
K25100 ASTM Copper Strip Corrosion Standards - Colored reproductions of tarnished strips encased in a plastic plaque
380-220-001 Silicone Carbide Paper, FEPA Grade, 220 grit - For polishing of copper strips prior to testing - Pack of 50 sheets
380-150-003 Silicone Carbide Grain, FEPA grade, 150 grit - For final polishing of copper strips prior to testing - 1 lb package
K25000 Polishing Vise - Holds copper strip firmly in place without marring the edges. Stainless steel, mounted on a composition base
K25090 Multi-Strip Polishing Vise - Similar to K25000 but capable of holding four strips at a time
250-000-12F ASTM 12F Thermometer - Range: -5 to +215°F
250-000-12C ASTM 12C Thermometer - Range: -20 to +102°C
The following link provides additional information from the instruction manual or manufacturer's brochure. Click to open the PDF in a new window or right-click to download it: Koehler K64310 / K64319 Copper-Strip Test Bath
or copy the following into your browser address window: labequip.com/stock/pictures/n2228.pdf
Made in USA.
This item ships from Bohemia, NY.
