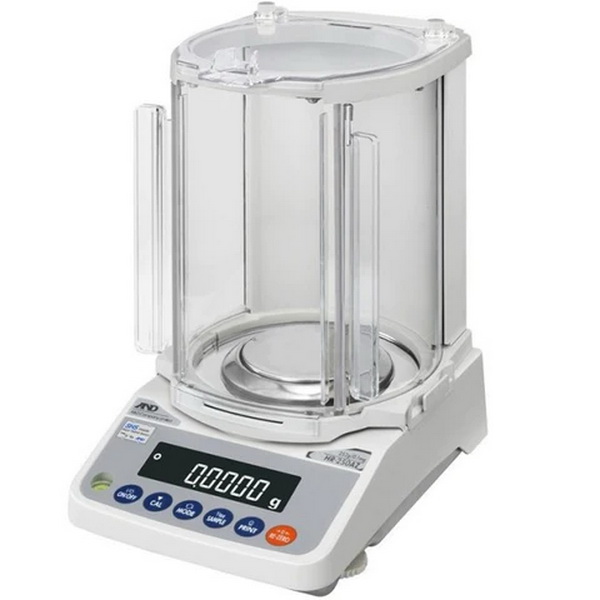

HR-A & HR-AZ Series Compact Analytical Balances
The HR-A Series delivers fast, accurate, and reliable analytical weighing in a compact footprint designed for space-constrained environments. Built on A&D Super Hybrid Sensor (SHS) technology, these balances provide consistent results for laboratory, quality control, QA, and production applications. The HR-AZ models feature highly reliable internal calibration with one-touch automatic operation to ensure consistent balance accuracy.
Model Overview
| Model |
Capacity |
Resolution |
Calibration |
| HR-100A |
102 g |
0.1 mg |
External |
| HR-100AZ |
102 g |
0.1 mg |
Internal/Ext. |
| HR-150A |
152 g |
0.1 mg |
External |
| HR-150AZ |
152 g |
0.1 mg |
Internal/Ext. |
| HR-250A |
252 g |
0.1 mg |
External |
| HR-250AZ |
252 g |
0.1 mg |
Internal/Ext. |
Key Features
- Rotary doors save space when opened, ideal for glove boxes, fume hoods, and crowded lab benches
- Pivoting breeze break top allows easy access to flasks and beakers
- Detachable breeze break enables quick cleaning and top-loading operation, even with heavy gloves
- 2-second stabilization time for increased productivity
- Rugged, shatterproof breeze break with anti-static coating for sensitive environments
- One-touch internal calibration on HR-AZ models
- Ultimate clarity with reverse back-lit display
- Statistical calculation function, counting, % mode, user-defined units
- GLP/GMP/GCP/ISO compliant output
Suitable Applications
- Laboratory
- Quality Control / QA
- Production
- Pharmaceutical / FDA
- Food / HACCP
Technical Specifications
| Parameter |
HR-100A / HR-100AZ |
HR-150A / HR-150AZ |
HR-250A / HR-250AZ |
| Weighing capacity |
102 g |
152 g |
252 g |
| Minimum weighing value |
0.1 mg |
0.1 mg |
0.1 mg |
| Repeatability (Standard Deviation) |
0.1 mg |
0.1 mg |
0 to 200 g: 0.1 mg
200 to 252 g: 0.2 mg |
| Linearity |
±0.2 mg |
±0.2 mg |
±0.3 mg |
| Stabilization time (FAST mode) |
Approx. 2 seconds |
| Sensitivity drift |
±2 ppm/°C (10 to 30 °C/50 to 86 °F) |
| Calibration (HR-A / HR-AZ) |
External / Internal |
| Clock and calendar (HR-A / HR-AZ) |
No / Yes |
| Operating environment |
5 to 40 °C (41 to 104 °F), 85% RH or less (no condensation) |
| Display refresh rate |
5 times/second or 10 times/second, selectable |
| Weighing pan size |
Ø90 mm |
| External dimensions |
198 (W) × 294 (D) × 315 (H) mm / 8 (W) × 12 (D) × 12.4 (H) in |
| Net weight (HR-A / HR-AZ) |
3.5 kg / 7.8 lb / 3.9 kg / 8.9 lb |
| Power supply |
AC adapter |
| Power consumption |
Approx. 11 VA (supplied by the AC adapter) |
| Interface |
RS-232C standard |
| Applicable calibration weight values (g) |
100, 50 |
150, 100, 50 |
250, 200 |
Display Modes
g, mg, oz, oz-t, ct, momme, dwt, grain, tael, tola, pieces (counting mode), % (percent mode), DS (density mode), user definable functions
Other Units of Measure
| Unit |
Capacity (HR-100A/AZ) |
Capacity (HR-150A/AZ) |
Capacity (HR-250A/AZ) |
Minimum Display |
| Ounce (oz) |
3.59 |
5.36 |
8.88 |
0.00001 |
| Troy Ounce (ozt) |
3.27 |
4.88 |
8.10 |
0.00001 |
| Carat (ct) |
510 |
760 |
1260 |
0.001 |
| Pennyweight (dwt) |
65.5 |
97.7 |
162.0 |
0.0001 |
| Momme (mom) |
27.2 |
40.5 |
67.2 |
0.0001 |
| Grain (GN) |
1574 |
2346 |
3889 |
0.002 |
Counting Mode
- Minimum unit mass: 0.1 mg
- Number of samples: 10, 25, 50 or 100 pieces
Percent Mode
- Minimum 100% reference mass: 10.0 mg
- Minimum 100% display: 0.01%, 0.1%, or 1% (depends on the reference mass stored)
Options
- FXi-02 - Quick USB interface with cable
- FXi-08 - Ethernet interface with WinCT-Plus software
- FXi-09 - Built-in rechargeable battery
Note: The FXi-02, FXi-08 and FXi-09 cannot be used at the same time.
Accessories
- AD-1654 - Density determination kit
- AD-1683 - Static eliminator
- AD-1684 - Electrostatic field meter
- AD-1687 - Weighing environment logger
- AD-1688 - Weighing data logger
- AD-1689 - Tweezers for calibration weight
- AD-8121B - Muti-function printer
- AD-1192 - Compact printer
- AD-8526 - Serial/Ethernet converter
- AD-8920A - Remote display
- AD-8922A - Remote controller
- AX:073009456 - Main unit clear protective cover
- AX-USB-2920-9P - Serial/USB converter
