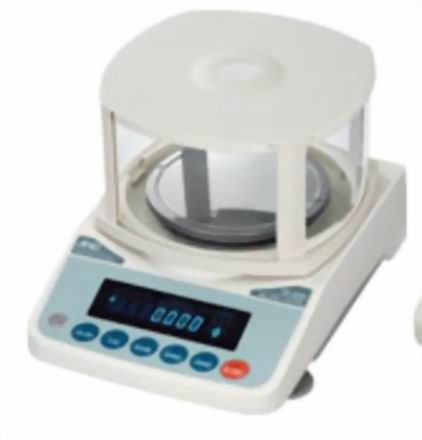

FZ-i Series Precision Balances with Internal Calibration
The FZ-i combines high-performance weighing capabilities with the convenience of internal calibration at an affordable price point. These precision balances feature a unique air-actuated internal motor that enables quick, one-touch calibration. A fail-safe mechanism automatically resets the weight to its original position if interrupted during calibration, ensuring reliable operation. Quick adjustment is accessible with just a keystroke, delivering both performance and user convenience.
FX-i Series Precision Balances with External Calibration
The FX-i Series delivers full-featured precision weighing with resolutions from 0.01g to 1mg at a very affordable price. At the core of each unit is the patented Compact Super Hybrid Sensor, which provides fast one-second weighing response time. A specially designed internal shock absorber protects against adverse effects from vertical or transverse overloading. Legal-for-trade models are available with NTEP and Measurement Canada approval.
FX-iWP and FZ-iWP Water Proof/Dust Proof Models
The FX-iWP represents the world's first IP-65 rated 1mg resolution balance. These models are dust-tight and can be sprayed with water, making them suitable for environments that would render standard balances inoperable. The FZ-iWP adds internal calibration to the IP-65 rated dustproof and waterproof features, creating a balance that can be used virtually anywhere. IP-65 rating means no ingress of dust (level 6) and withstands water jetting from any direction (level 5) as defined by international standard IEC 60529.
Key Functional Features
- Statistical Calculation Function: Displays or outputs Sum, Maximum, Minimum, Range, Standard Deviation, Number of Data, and Coefficient of Variation
- ACAI – Automatic Counting Accuracy Improvement: Recalculates average weight each time a sample is added to eliminate errors caused by variations in unit weight
- Animal Weighing Function: HOLD function freezes weighing data for animal weighing applications with ANIMAL indicator on display
- Comparator Function: Easy comparison of weighing results by setting HI and LO limits to display HI, OK, LO indicators
- Percent Mode Function: Register a sample as 100% and compare weight of another sample as a percentage
- Underhook: Allows measurement of magnetic materials and density measurements in air and water
- Response Indicator Function: Selectable FAST, MID or SLOW response to suit weighing environment conditions
- Auto Power OFF Function: Display switches OFF automatically when balance is inactive for 10 minutes as a power-saving tool
Standard Interface and Compliance
- Standard RS-232C Interface: Bi-directional communication with PC, printer or other peripheral devices
- GLP/GMP/GCP/ISO Compliant: Balance ID number and calibration data can be printed using AD-8121B or a PC in accordance with GLP and LIMS regulations
- Multiple Weighing Units: Programmable or standard units including g, pcs, %, oz, lb, lb-oz, ozt, ct, mom, dwt, GN, tl, tol, mes and MLT
Specifications
| Model |
Capacity x Resolution (g) |
Repeatability (Std. Deviation) |
Linearity |
Weighing Pan |
| FX-120i / FZ-120i / FX-120iWP / FZ-120iWP |
122 x 0.001 |
0.001g |
±0.002g |
130mm |
| FX-200i / FZ-200i / FX-200iWP / FZ-200iWP |
220 x 0.001 |
0.001g |
±0.002g |
130mm |
| FX-300i / FZ-300i / FX-300iWP / FZ-300iWP |
320 x 0.001 |
0.001g |
±0.002g |
130mm |
| FX-1200i / FZ-1200i / FX-1200iWP / FZ-1200iWP |
1220 x 0.01 |
0.01g |
±0.02g |
150mm |
| FX-2000i / FZ-2000i / FX-2000iWP / FZ-2000iWP |
2200 x 0.01 |
0.01g |
±0.02g |
150mm |
| FX-3000i / FZ-3000i / FX-3000iWP / FZ-3000iWP |
3200 x 0.01 |
0.01g |
±0.02g |
150mm |
General Specifications
| Parameter |
Specification |
| Stabilization Time |
Approx. 1 second (typically set at FAST) |
| Sensitivity Drift (10°C to 30°C) |
±2ppm / °C |
| Operating Temperature |
5°C to 40°C (41°F to 104°F), 85% RH or less (No condensation) |
| Display Type |
Vacuum Fluorescent Display (VFD) |
| Display Refresh Rate |
5 times / second, 10 times / second or 20 times / second |
| Power Consumption |
Approx. 11VA (supplied to the AC Adaptor) |
| External Dimensions |
193 (W) x 262.5 (D) x 84.5 (H) mm |
| Net Weight |
Approx. 2.5kg |
Counting Mode
| Parameter |
122g - 320g Models |
1220g - 3200g Models |
| Min. Unit Mass |
0.001g |
0.01g |
| # of Samples |
5, 10, 25, 50 or 100 pieces |
Percent Mode
| Parameter |
122g - 320g Models |
1220g - 3200g Models |
| Min. 100% Ref. Mass |
0.100g |
1.00g |
| Min. 100% Display |
0.01%, 0.1%, 1% (depends on the reference mass stored) |
Optional Accessories
- FXi-02: Quick USB interface with cable (cannot be used simultaneously with FXi-08 and FXi-09; not IP65 compliant with FX-iWP and FZ-iWP)
- FXi-08: Ethernet interface with WinCT-Plus software (cannot be used simultaneously with FXi-02 and FXi-09; not IP65 compliant with FX-iWP and FZ-iWP)
- FXi-09: Built-in rechargeable battery (Ni-MH rechargeable battery pack for use without AC power and mobile applications; 10 hours charging time for 8 hours operation; cannot be used simultaneously with FXi-02 and FXi-08; not IP65 compliant with FX-iWP and FZ-iWP)
- FXi-10: Small breeze break
- FXi-11: Large breeze break
- FXi-WP-10: Small breeze break (gray, for -WP models)
- FXi-WP-11: Large breeze break (gray, for -WP models)
- FXi-12: Animal weighing pan
- AD-1683: Static eliminator
- AD-8920: Remote display (not IP65 compliant with FX-iWP and FZ-iWP)
- AD-8922: Remote controller (not IP65 compliant with FX-iWP and FZ-iWP)
- AD-8121B: Compact printer
- AD-8526: RS/Ethernet converter
- AX:KO2737-500: Waterproof RS-232C cable (5m)
