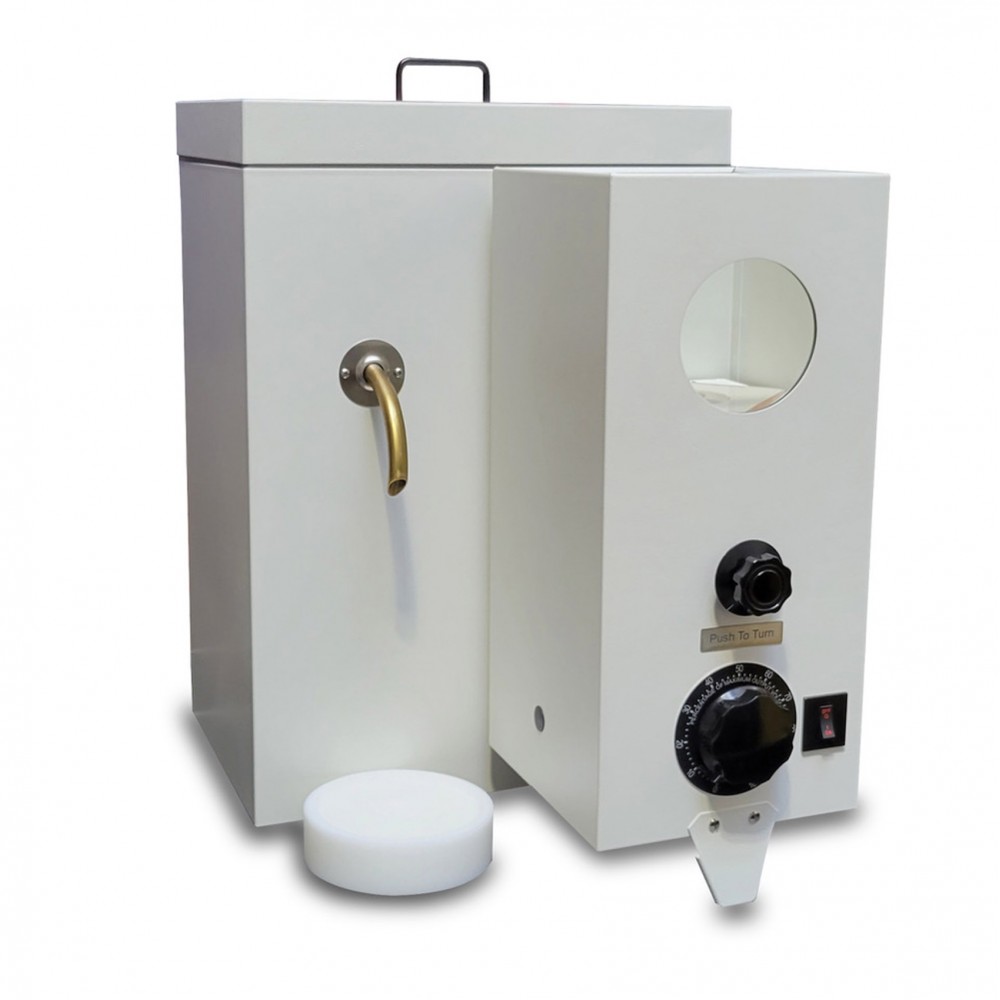

Petroleum Front View Distillation Apparatus

Made in United States

Ships from United States

The Koehler K45200 front-view distillation apparatus has a test method in which the sample is evaporated and condensed under controlled conditions, and observations are made of the temperatures at which various percentages are recovered and/or the percentages recovered at specified temperatures. Front View Distillation apparatus designed for testing of Grade No. 2 fuel oil, Grade No. 2-D diesel fuel oil, gas oils and other distillates requiring condenser bath temperatures of up to 140F (60C). Also suitable for gasolines, aviation turbine fuels, naphthas, kerosenes and other liquid petroleum products. Similar in features and construction to the standard Front View Distillation Apparatus, but equipped with a 300W copper immersion condenser heater with stepless electronic control. Available with right or left-hand heater unit. Note: The Group 4 Apparatus can also run distillations for petroleum products categorized as Groups 0, 1, 2 and 3.

$ 7,149.00 7149.0 USD $ 7,149.00

$ 1.00

This combination does not exist.

Add to Inquiry List

Petroleum Testing

Terms and Conditions

Stock Number	N673
Model	K45200 / K45290
Manufacturer	Koehler Instrument
Standard Test Methods	ASTM D1078 ASTM D216 WITHDRAWN '88 ASTM D233 DIN 51751 ASTM D447 WITHDRAWN '97 FTM 791-1001 FTM 791-1015 ASTM D850 ASTM D86 ASTM E133 IP 123 IP 195 ISO 3405
Product Brochure	n673.pdf
Warranty	1 YEAR MANUFACTURER'S WARRANTY

Comes complete with:
Flask Support Boards A and C
Graduate Cylinder Support Block

Optional accessories available at addtional cost:332-003-006 Flasks A 100mL
332-003-001 Flasks B 125mL
332-003-002 Flasks C 200mL
332-003-005 Flasks D 250mL
332-002-013 Graduates A 25mL
332-002-003 Graduates B 100mL
332-002-014 Graduates C 200mL
K45410 A Flask Support Boards 11/4" (3.18cm)
K45420 B Flask Support Boards 11/2"(3.81cm)
K45430 C Flask Support Boards 2" (5.1cm)
K45440 D Flask Support Boards 23/4"(6.98cm)
K45540 Receiver Cooling Bath Jar
334-002-001 Top Silicone Plug, For Type A,B,& D Flasks pk/10
334-002-002 Side Silicone Plug pk/10
334-002-003 Top Silicone Plug, For Type C Flask pk/10
250-000-02C ASTM 2C Partial Immersion -5 to +300°C
250-000-07F ASTM 7F Low Distillation 30 to 580°F
250-000-07C ASTM 7C Low Distillation -2 to +300°C
250-000-08F ASTM 8F High Distillation 30 to 760°F
250-000-08C ASTM 8C High Distillation -2 to +400°C
250-000-37C ASTM 37C Solvents Distillation -2 to 52C
250-000-38C ASTM 38C Solvents Distillation 24 to 78C
250-000-39C ASTM 39C Solvents Distillation 48 to 102C
250-000-40C ASTM 40C Solvents Distillation 72 to 126C
250-000-41C ASTM 41C Solvents Distillation 98 to 152C
250-000-42C ASTM 42C Solvents Distillation 95 to 255C
250-000-102C ASTM 102C Solvents Distillation 123 to 177C
250-000-103C ASTM 103C Solvents Distillation 148 to 202C
250-000-104C ASTM 104C Solvents Distillation 173 to 227C
250-000-105C ASTM 105C Solvents Distillation 198 to 252C
250-000-106C ASTM 106C Solvents Distillation 223 to 277C
250-000-107C ASTM 107C Solvents Distillation 248 to 302C

Elc	NO
Outside	15.25"W x 18.25"D x 19.5"H
Volts	Specify: 115 or 220

ASTM Distillation Thermometers

Precision thermometers designed for distillation testing of petroleum products. Each thermometer conforms to ASTM specifications for accurate temperature measurement during distillation procedures.

Available Thermometer Models

Catalog No.	Thermometer	Range
250-000-02C	ASTM 2C Partial Immersion	–5 to +300°C
250-000-07F	ASTM 7F Low Distillation	30 to 580°F
250-000-07C	ASTM 7C Low Distillation	–2 to +300°C
250-000-08F	ASTM 8F High Distillation	30 to 760°F
250-000-08C	ASTM 8C High Distillation	–2 to +400°C
250-000-37C	ASTM 37C Solvents Distillation	–2 to +52°C
250-000-38C	ASTM 38C Solvents Distillation	24 to 78°C
250-000-39C	ASTM 39C Solvents Distillation	48 to 102°C
250-000-40C	ASTM 40C Solvents Distillation	72 to 126°C
250-000-41C	ASTM 41C Solvents Distillation	98 to 152°C
250-000-42C	ASTM 42C Solvents Distillation	95 to 255°C
250-000-102C	ASTM 102C Solvents Distillation	123 to 177°C
250-000-103C	ASTM 103C Solvents Distillation	148 to 202°C
250-000-104C	ASTM 104C Solvents Distillation	173 to 227°C
250-000-105C	ASTM 105C Solvents Distillation	198 to 252°C
250-000-106C	ASTM 106C Solvents Distillation	223 to 277°C
250-000-107C	ASTM 107C Solvents Distillation	248 to 302°C

Compliance Standards

Conforms to the specifications of: ASTM D86, D216, D233, D447, D850, D1078, E133; IP 123, 195; ISO 3405; DIN 51751; FTM 791-1001, 791-1015; NF M 07-002

Front View Distillation Apparatus

Professional distillation equipment for petroleum product testing. The sample is evaporated and condensed under controlled conditions, and observations are made of the temperatures at which various percentages are recovered and/or the percentages recovered at specified temperatures.

Product Features

Conforms to ASTM D86, E133 and related ASTM & international standards
Choice of three different models
Fully insulated stainless steel condenser and heater units
1250W heater with stepless variable control
Rack and pinion heater elevation mechanism with push-turn control knob
Flask support platform with viewing window
White receiving flask background facilitates viewing of fractions during test
Available with right-hand or left-hand heater unit for convenient pairing

Standard Front View Distillation Apparatus

Groups 0, 1, 2 and 3: Meets all ASTM and related specifications for distillation of motor and aviation gasolines, aviation turbine fuels, naphthas, kerosenes, distillate fuels, natural gasoline, liquid hydrocarbon mixtures and other petroleum products. Includes graduate support block and flask support boards.

Group 4 Front View Distillation Apparatus

Designed for testing of Grade No. 2 fuel oil, Grade No. 2-D diesel fuel oil, gas oils and other distillates requiring condenser bath temperatures of up to 140°F (60°C). Also suitable for gasolines, aviation turbine fuels, naphthas, kerosenes and other liquid petroleum products. Similar in features and construction to the standard Front View Distillation Apparatus, but equipped with a 300W copper immersion condenser heater with stepless electronic control. Available with right or left-hand heater unit.

Note: The Group 4 Apparatus can also run distillations for petroleum products categorized as Groups 0, 1, 2 and 3.

Included Accessories

Flask Support Boards A and C
Graduate Cylinder Support Block

Technical Specifications

Specification	Details
Electrical Requirements	115V 60Hz or 220-240V 50/60Hz
Dimensions (lxwxh)	15.25x18.25x19.5 in. (39x46x50 cm)
Shipping Weight	65 lbs (29.5kg)
Shipping Dimensions	13.3 Cu. ft.

Ordering Information

Catalog No.	Description
Front View Distillation Apparatus
K45000	Right-Hand Model, 115V 60Hz
K45100	Left-Hand Model, 115V 60Hz
K45090	Right-Hand Model, 220-240V 50/60Hz
K45190	Left-Hand Model, 220-240V 50/60Hz
Group 4 Front View Distillation Apparatus
K45200	Right-Hand Model, 115V 60Hz
K45300	Left-Hand Model, 115V 60Hz
K45290	Right-Hand Model, 220-240V 50/60Hz

Accessories

Flasks

Catalog No.	Type	Capacity, mL
332-003-006	A	100
332-003-001	B	125
332-003-002	C	200
332-003-005	D	250

Graduates

Catalog No.	Type	Capacity, mL
332-002-013	A	25
332-002-003	B	100
332-002-014	C	200

Flask Support Boards

Catalog No.	Type	Size
K45410	A	1-1⁄4" (3.18)
K45420	B	1-1⁄2"(3.81)
K45430	C	2" (5.1)
K45440	D	2-3⁄4"(6.98)

Miscellaneous Accessories

Catalog No.	Description
K45540	Receiver Cooling Bath Jar
334-002-001	Top Silicone Plug, For Type A, B, & D Flasks (pk/10)
334-002-002	Side Silicone Plug (pk/10)
334-002-003	Top Silicone Plug, For Type C Flask (pk/10)
