Laboratory Incubators
Standard Features
- Thermal and Electronic Safety Shutoff
- High-Grade Aluminum Interior
- Analog or Digital Temperature Controls
- Illuminated Power Switch
- Resistive-Tubular Incoloy Heating Elements
- Powerful Blower (AE series)
- Powder-Coated Exterior Paint
- High-Optic Acrylic or Insulated Steel Door
Door Options
See-Through Acrylic (140 Series)
Keep a close eye on your samples with our incubator's see-through acrylic door—perfect for uninterrupted monitoring and optimal transparency.
The Model '140' Incubator acrylic door is not suitable for applications introducing high moisture, products containing ammonia or alcohol derivatives, certain oils, commercial cleansers, urine, or any harsh chemicals/constituents.
Insulated Steel Door (180 Series)
Ensure optimal performance in high-temperature applications with our incubator's insulated steel door (aluminum interior), crafted for maximum temperature control and superior sample safety. This "180" series steel door is recommended for applications that introduce high moisture or chemicals to the incubators.
Temperature Controls
Bi-metal Thermostat
Our reliable, cost-effective thermostats recover temperature quickly after loading and unloading contents, allowing you to continue building, testing, and working without limitations.
Standard Digital Controller
Our standard digital controller features advanced performance capabilities for the most complex and critical applications. With a simple yet powerful interface that is easy to understand, this controller gives you ease of use and high-level accuracy.
Safety & Protection
Digital Controller High-limit Alarm
In addition to the standard in-line fuse protection, our digital incubators have another layer of protection within the controller: a high-limit alarm that shuts off the heating elements in the event of an over-temperature condition.
Electrical In-line Fuse
A vital safety mechanism in our incubators, the in-line fuse automatically cuts off power in case of electrical surges or malfunctions, ensuring peace of mind and safeguarding against potential hazards.
Heat Distribution

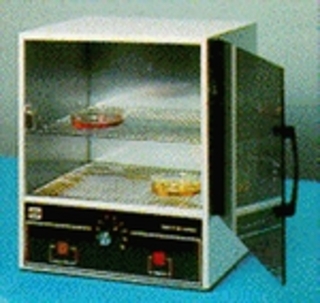

Gravity Convection
Single and dual element coils at the bottom of our incubators generate the right amount of heat that, by the process of gravity convection, provides you with gentle and uniform heating for your parts.
Air-Forced
Additionally, our air-forced convection incubators significantly increase the rate of heat transfer by circulating heated air in the chamber, allowing for better control over temperature gradients and more precise heat-exchange processes.
Shelves
To ensure uniform heat distribution with long-lasting durability, we use nickel-plated, chemical resistant, heavy gauge wire shelves that allow hot air to circulate around the chamber contents.
Our high-quality Aluminum Perforated Shelf enhances the functionality of our AE series incubators. Lightweight yet durable, with uniformly spaced cross-shaped perforations, it ensures optimal air circulation and stable support for your samples.
Analog Incubator Series - Gravity Convection
140 Series - Analog Gravity Convection, Clear Acrylic Door
Temperature Range: Ambient +2°C minimum, to a maximum of 62°C (143°F)
| Models |
Capacity |
| 10-140 |
0.7 Cubic Feet / 20 Liters |
| 12-140 |
2.0 Cubic Feet / 57 Liters |
Includes one precision thermometer with rubber grommet.
Includes one fixed and one adjustable nickel plated wire shelf.
180 Series - Analog Gravity Convection, Solid Steel Door
Temperature Range: Ambient +3°C minimum, to a maximum of 93°C (200°F)
| Models |
Capacity |
| 10-180 |
0.7 Cubic Feet / 20 Liters |
| 12-180 |
2.0 Cubic Feet / 57 Liters |
Includes one precision thermometer with rubber grommet.
Includes one fixed and one adjustable nickel plated wire shelf.
Warranty: 2 Year Parts & Labor
Warranty: 3 Year Heating Elements
Models are available in optional 230 volts.
Specifications
| Model |
10-140 |
12-140 |
10-180 |
12-180 |
| Capacity |
0.7 Cubic Feet |
2.0 Cubic Feet |
0.7 Cubic Feet |
2.0 Cubic Feet |
| Interior Dimensions |
12"W X 10"H X 10"D
(30.5 cm X 25.4 cm X 25.4cm) |
18"W X 16"H X 12"D
(45.7 cm X 40.6 cm X 30.5cm) |
12"W X 10"H X 10"D
(30.5 cm X 25.4 cm X 25.4cm) |
18"W X 16"H X 12"D
(45.7 cm X 40.6 cm X 30.5cm) |
| Exterior Dimensions |
13"W x 15"H x 11"D
(33cm X 38.0cm X 28cm) |
19"W x 21"H x 13"D
(48.3cm X 53.3cm X 33.0cm) |
13"W x 15"H x 11"D
(33cm X 38.0cm X 28cm) |
19"W x 21"H x 13"D
(48.3cm X 53.3cm X 33.0cm) |
| Interior Construction |
High Grade Aluminum |
High Grade Aluminum |
High Grade Aluminum |
High Grade Aluminum |
| Exterior Construction |
Powder Coated Steel; Dove Grey (Ivory) |
Powder Coated Steel; Dove Grey (Ivory) |
Powder Coated Steel; Dove Grey (Ivory) |
Powder Coated Steel; Dove Grey (Ivory) |
| Thermo-Control |
Bimetal Thermostat |
Bimetal Thermostat |
Bimetal Thermostat |
Bimetal Thermostat |
| Door |
High Optic Acrylic (Bronze) |
High Optic Acrylic (Bronze) |
Solid Insulated Steel (Ivory) |
Solid Insulated Steel (Ivory) |
| Electrical |
*115 Volts, Single Phase
110 Watts / 50/60Hz |
*115 Volts, Single Phase
235 Watts / 50/60Hz |
*115 Volts, Single Phase
270 Watts / 50/60Hz |
*115 Volts, Single Phase
385 Watts / 50/60Hz |
| Temperature Range |
Models 140: Ambient +2°C to 62°C (143°F) |
Models 180: Ambient +3°C to 93°C (200°F) |
*Standard models voltage only, 230 Voltage available
Accessories
- TempAssure Chamber Monitor: Calibrate chambers and monitor internal temperatures with ease.
- Additional Shelves: Enhance your incubator's versatility with this additional shelf to maximize space and accommodate more samples or specimens with ease.
Options
- Access Porthole: Insert pipes, wiring, or other components into the chamber through a custom access hole.
