Lab Ovens
Quincy Lab, Inc. has been a mainline manufacturer of laboratory ovens and incubators for more than 40 years, dedicated to product value, customer satisfaction, and ongoing product support.
Product Overview
Available in both gravity convection (GC) and air forced (AF) series, these laboratory ovens are designed to meet the needs of industry, research organizations, and schools. Well-crafted and versatile, they are used for part drying, baking, curing, sterilizing, evaporating, heat treating, annealing, and testing.

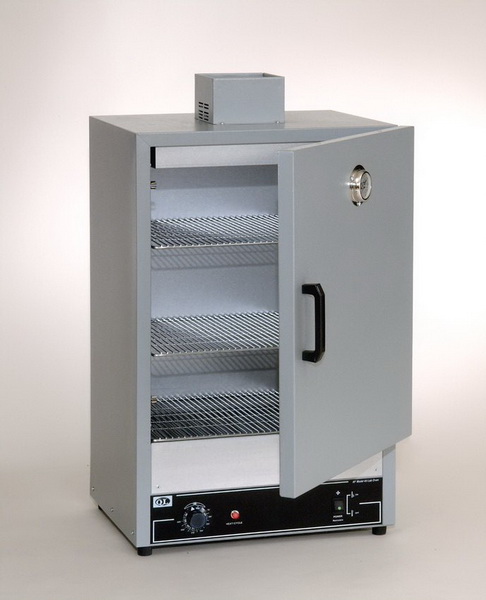

The GC series gravity convection ovens provide reliable performance for standard laboratory applications. The AF series models offer forced air circulation allowing for more uniform distribution of heat throughout the chamber, which also facilitates evaporating. Both GC and AF series ovens have a temperature range to 450°F / 232°C, and are competitively priced and offer exceptional value and reliability.
Key Features
- Air forced and gravity convection models available
- Durable double-wall construction
- Scratch-resistant hammer finish
- Corrosion-resistant aluminized interior
- Proven reliability
- Full 18-month factory warranty
Advanced Design
Cabinets are as attractive as they are durable. Exteriors are painted light gray and have a hard, scratch-resistant hammer finish. Doors open with high-impact thermoplastic handles. Cabinets have heavy steel double-wall construction. Work space is insulated from the outer cabinet with one inch of high-density mineral wool, and interiors are made of corrosion-resistant aluminized steel.
Controls
Quincy Lab uses quality UL and CSA recognized components in all ovens. The control panel is equipped with an illuminated ON/OFF rocker switch and a heat-cycle pilot light. Temperature is controlled by automatic hydraulic or a bimetal thermostat (models 10GC & 10AF). Hydraulic models offer convenient temperature dial markings in both centigrade and Fahrenheit.
Heating Elements
Energy-efficient, low-watt density incoloy sheathed elements are engineered into a compact design for quick run-up and recovery times. Temperature uniformity is greatly improved by a perforated heat shield which absorbs radiant heat and distributes it more evenly.
General Specifications - GC Series (Gravity Convection)
| Specification |
Model 10GC |
Model 20GC |
Model 30GC |
Model 40GC |
| Interior Dimensions (W x H x D) |
12x10x10 inches
(30.5x25.4x25.4 cm) |
13x13x13 inches
(33x33x33 cm) |
18x21.8x14 inches
(45.7x55.4x35.6 cm) |
18x15.6x12 inches
(45.7x39.6x30.5 cm) |
| Exterior Dimensions (W x H x D) |
14x17.5x12.3 inches
(35.6x44.5x31.2 cm) |
15x21.5x15.3 inches
(38x54.6x38.9 cm) |
20x25.5x14.3 inches
(50.8x64.8x36.2 cm) |
20x31.5x16.3 inches
(50.8x80x41.4 cm) |
| Temperature Maximum |
450°F / 232°C |
450°F / 232°C |
450°F / 232°C |
450°F / 232°C |
| Capacity |
0.7 cubic feet
(19.8 liters) |
1.27 cubic feet
(36 liters) |
3.0 cubic feet
(85 liters) |
2.0 cubic feet
(56.6 liters) |
| Electrical |
115V/5.2A, 600W
Plug: 5-15P |
120V/6.3A, 750W
Plug: 5-15P |
115V/10.5A, 1200W
Plug: 5-15P |
120V/12.5A, 1500W
Plug: 5-15P |
| Shelves (1" centers) |
Maximum 10 per unit |
Maximum 13 per unit |
Maximum 16 per unit |
Maximum 22 per unit |
| Maximum Pounds/Shelf |
35 |
35 |
35 |
35 |
| Weight |
Shipping: 42.6 lbs
Stand Alone: 31.4 lbs |
Shipping: 57 lbs
Stand Alone: 76.2 lbs |
Shipping: 57.2 lbs
Stand Alone: 80.8 lbs |
Shipping: 50.4 lbs
Stand Alone: 84.2 lbs |
| Temperature Stability |
±3.0°C / ±6.0°F |
±3.0°C / ±6.0°F |
±3.0°C / ±6.0°F |
±3.0°C / ±6.0°F |
| Time to Temperature (Ambient to 100°C) |
6 Min. |
22 Min. |
6.5 Min. |
25 Min. |
| Time to Temperature (Ambient to Max) |
|
|
|
|
| Recovery @ 150°C (Door Open 15 sec.) |
|
|
|
|
| Recovery @ 150°C (Door Open 30 sec.) |
|
|
|
|
General Specifications - AF Series (Air Forced)
| Specification |
Model 10AF |
Model 20AF |
Model 30AF |
Model 40AF |
| Interior Dimensions (W x H x D) |
12x8.25x10 inches
(30.5x21x25.4 cm) |
13x11x13 inches
(33x28x33 cm) |
18x19.8x14 inches
(45.7x50.3x35.6 cm) |
18x14.2x12 inches
(45.7x36x30.5 cm) |
| Exterior Dimensions (W x H x D) |
14x20.5x12.3 inches
(35.6x52x31.2 cm) |
15x25x15.3 inches
(38x63.5x38.9 cm) |
20x29x14.3 inches
(50.8x73.7x36.2 cm) |
20x35x16.3 inches
(50.8x89x41.4 cm) |
| Temperature Maximum |
450°F / 232°C |
450°F / 232°C |
450°F / 232°C |
450°F / 232°C |
| Capacity |
0.6 cubic feet
(17 liters) |
1.14 cubic feet
(32.3 liters) |
2.86 cubic feet
(81 liters) |
1.83 cubic feet
(51.8 liters) |
| Electrical |
120V/6.6A, 800W
Plug: 5-15P |
120V/8.8A, 1050W
Plug: 5-15P |
120V/12.5A, 1500W
Plug: 5-15P |
120V/12.5A, 1500W
Plug: 5-15P |
| Shelves (1" centers) |
Maximum 8 per unit |
Maximum 11 per unit |
Maximum 14 per unit |
Maximum 20 per unit |
| Maximum Pounds/Shelf |
35 |
35 |
35 |
35 |
| Weight |
Shipping: 43.5 lbs
Stand Alone: 37.2 lbs |
Shipping: 58.7 lbs
Stand Alone: 64.2 lbs |
Shipping: 72.5 lbs
Stand Alone: 65.7 lbs |
Shipping: 91.5 lbs
Stand Alone: 98.5 lbs |
| Temperature Stability |
±3.0°C / ±6.0°F |
±3.0°C / ±6.0°F |
±3.0°C / ±6.0°F |
±3.0°C / ±6.0°F |
| Time to Temperature (Ambient to 100°C) |
6 Min. |
23 Min. |
6 Min. |
28 Min. |
| Time to Temperature (Ambient to Max) |
|
|
|
|
| Recovery @ 150°C (Door Open 15 sec.) |
2.5 Min. |
7.5 Min. |
3.5 Min. |
9 Min. |
| Recovery @ 150°C (Door Open 30 sec.) |
3.5 Min. |
31 Min. |
6 Min. |
37 Min. |
| Recovery @ 150°C / 300°F (Door Open 15 sec.) |
4 Min. |
9 Min. |
5 Min. |
7 Min. |
| Recovery @ 150°C / 300°F (Door Open 30 sec.) |
6 Min. |
39 Min. |
6 Min. |
22 Min. |
| Recovery @ 150°C / 300°F (Door Open 30 sec.) |
7 Min. |
|
3 Min. |
6 Min. |
| Recovery @ 150°C / 300°F (Door Open 30 sec.) |
11 Min. |
|
5 Min. |
8 Min. |
Note: Standard models voltage only, 230 voltage available. Performance characteristics for standard voltage models, alternate voltage models may vary. All tests conducted under controlled laboratory conditions.
Installation
Minimum Clearances: 4" rear, 18" sides, 4" top (specific to model requirements).
```
