Lab Ovens
Quincy Lab offers gravity convection and forced air convection lab ovens designed to meet the laboratory needs of industry, research organizations, and schools. Well-crafted and versatile, these ovens are used for part drying, baking, curing, sterilizing, evaporating, heat treating, annealing, and testing.
Key Features
- Air forced and gravity convection models available
- Durable double-wall construction
- Scratch-resistant hammer finish
- Corrosion-resistant aluminized interior
- Temperature range to 450°F / 232°C
- Full 18-month factory warranty
Advanced Design
Cabinets are as attractive as they are durable. Exteriors are painted light gray and have a hard, scratch-resistant hammer finish. Doors open with high-impact thermoplastic handles. Cabinets have heavy steel double-wall construction. Work space is insulated from the outer cabinet with one inch of high-density mineral wool, and interiors are made of corrosion-resistant aluminized steel.
Controls
Quality UL and CSA recognized components are used in all ovens. The control panel is equipped with an illuminated ON/OFF rocker switch and a heat-cycle pilot light. Temperature is controlled by automatic hydraulic or a bimetal thermostat (models 10GC & 10AF). Hydraulic models offer convenient temperature dial markings in both centigrade and Fahrenheit.
Heating Elements
Energy-efficient, low-watt density incoloy sheathed elements are engineered into a compact design for quick run-up and recovery times. Temperature uniformity is greatly improved by a perforated heat shield which absorbs radiant heat and distributes it more evenly.
GC and AF Series

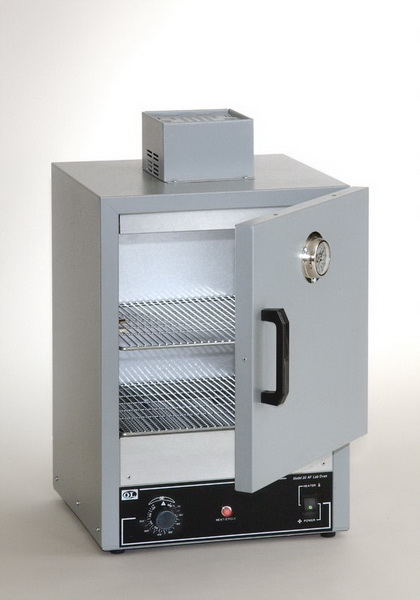

The 'GC' series gravity convection ovens are designed for applications requiring natural convection heating. The 'AF' series models offer a forced air circulation allowing for a more uniform distribution of heat throughout the chamber, which also facilitates evaporating. Both GC and AF series ovens have a temperature range to 450°F / 232°C.
Clearance Requirements
Minimum clearances: 4" rear, 4" sides, 18" top
Specifications - GC Series Gravity Convection
| Specification |
Model 10GC |
Model 20GC |
Model 30GC |
Model 40GC |
| Interior Dimensions (W x H x D) |
12x10x10 inches
(30.5x25.4x25.4 cm) |
13x13x13 inches
(33x33x33 cm) |
18x21.8x14 inches
(45.7x55.4x35.6 cm) |
18x15.6x12 inches
(45.7x39.6x30.5 cm) |
| Exterior Dimensions (W x H x D) |
14x17.5x12.3 inches
(35.6x44.5x31.2 cm) |
15x21.5x15.3 inches
(38x54.6x38.9 cm) |
20x25.5x14.3 inches
(50.8x64.8x36.2 cm) |
20x31.5x16.3 inches
(50.8x80x41.4 cm) |
| Capacity |
0.7 cubic feet
(19.8 liters) |
1.27 cubic feet
(36 liters) |
3.0 cubic feet
(85 liters) |
2.0 cubic feet
(56.6 liters) |
| Temperature Maximum |
450°F / 232°C |
450°F / 232°C |
450°F / 232°C |
450°F / 232°C |
| Electrical |
115V/5.2A, 600W
Plug: 5-15P |
120V/6.3A, 750W
Plug: 5-15P |
115V/10.5A, 1200W
Plug: 5-15P |
120V/12.5A, 1500W
Plug: 5-15P |
| Shelves (1" centers) |
10 maximum per unit |
13 maximum per unit |
16 maximum per unit |
22 maximum per unit |
| Maximum Pounds per Shelf |
35 |
35 |
35 |
35 |
| Weight - Shipping |
42.6 lbs |
57 lbs |
57.2 lbs |
76.2 lbs |
| Weight - Stand Alone |
31.4 lbs |
50.4 lbs |
43.5 lbs |
58.7 lbs |
Performance Characteristics - GC Series
| Performance Metric |
Model 10GC |
Model 20GC |
Model 30GC |
Model 40GC |
| Temperature Stability |
±3.0°C / ±6.0°F |
±3.0°C / ±6.0°F |
±3.0°C / ±6.0°F |
±3.0°C / ±6.0°F |
| Time to Temperature - Ambient to 100°C |
6 Min. |
6.5 Min. |
6 Min. |
6 Min. |
| Time to Temperature - Ambient to Max |
22 Min. |
25 Min. |
23 Min. |
28 Min. |
| Recovery @ 150°C - Door Open 15 Sec. |
3.5 Min. |
5 Min. |
4 Min. |
6 Min. |
| Recovery @ 150°C - Door Open 30 Sec. |
6 Min. |
6 Min. |
6 Min. |
9 Min. |
Specifications - AF Series Forced Air Convection
| Specification |
Model 10AF |
Model 20AF |
Model 30AF |
Model 40AF |
| Interior Dimensions (W x H x D) |
12x8.25x10 inches
(30.5x21x25.4 cm) |
13x11x13 inches
(33x28x33 cm) |
18x19.8x14 inches
(45.7x50.3x35.6 cm) |
18x14.2x12 inches
(45.7x36x30.5 cm) |
| Exterior Dimensions (W x H x D) |
14x20.5x12.3 inches
(35.6x52x31.2 cm) |
15x25x15.3 inches
(38x63.5x38.9 cm) |
20x29x14.3 inches
(50.8x73.7x36.2 cm) |
20x35x16.3 inches
(50.8x89x41.4 cm) |
| Capacity |
0.6 cubic feet
(17 liters) |
1.14 cubic feet
(32.3 liters) |
2.86 cubic feet
(81 liters) |
1.83 cubic feet
(51.8 liters) |
| Temperature Maximum |
450°F / 232°C |
450°F / 232°C |
450°F / 232°C |
450°F / 232°C |
| Electrical |
120V/6.6A, 800W
Plug: 5-15P |
120V/8.8A, 1050W
Plug: 5-15P |
120V/12.5A, 1500W
Plug: 5-15P |
120V/12.5A, 1500W
Plug: 5-15P |
| Shelves (1" centers) |
8 maximum per unit |
11 maximum per unit |
14 maximum per unit |
20 maximum per unit |
| Maximum Pounds per Shelf |
35 |
35 |
35 |
35 |
| Weight - Shipping |
37.2 lbs |
80.8 lbs |
84.2 lbs |
64.2 lbs |
| Weight - Stand Alone |
@ 150°C: 72.5 lbs
@ 300°F: 91.5 lbs |
65.7 lbs |
98.5 lbs |
— |
Performance Characteristics - AF Series
| Performance Metric |
Model 10AF |
Model 20AF |
Model 30AF |
Model 40AF |
| Temperature Stability |
±3.0°C / ±6.0°F |
±3.0°C / ±6.0°F |
±3.0°C / ±6.0°F |
±3.0°C / ±6.0°F |
| Time to Temperature - Ambient to 100°C |
— |
7.5 Min. |
9 Min. |
7 Min. |
| Time to Temperature - Ambient to Max |
— |
31 Min. |
37 Min. |
22 Min. |
| Recovery @ 150°C - Door Open 15 Sec. |
— |
2.5 Min. |
7 Min. |
3 Min. |
| Recovery @ 150°C - Door Open 30 Sec. |
— |
3.5 Min. |
11 Min. |
5 Min. |
| Additional Recovery - Door Open 30 Sec. |
— |
— |
— |
6 Min. / 8 Min. |
Note: Standard models voltage only; 230V available. Performance characteristics for standard voltage models; alternate voltage models may vary. All tests conducted under controlled laboratory conditions.
