Lab Ovens
Quincy Lab, Inc. has been a mainline manufacturer of laboratory ovens and incubators for more than 40 years, dedicated to product value, customer satisfaction, and ongoing product support.
Overview
Available in both gravity convection (GC) and air forced (AF) configurations, these lab ovens are well-crafted and versatile instruments designed to meet the laboratory needs of industry, research organizations, and schools. Both series feature a temperature range to 450°F / 232°C and offer exceptional value and reliability.

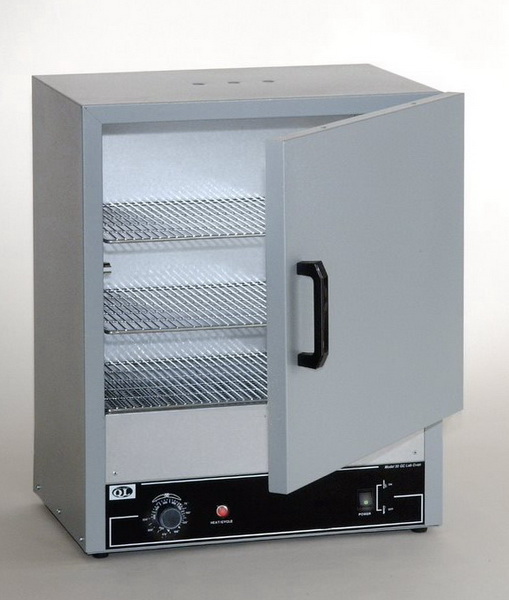

GC Series - Gravity Convection
Gravity convection ovens are designed for part drying, baking, curing, sterilizing, evaporating, heat treating, annealing, and testing.
AF Series - Air Forced
Air forced models offer forced air circulation allowing for more uniform distribution of heat throughout the chamber, which also facilitates evaporating.
Features
- Air forced and gravity convection models available
- Durable double-wall construction
- Scratch-resistant hammer finish
- Corrosion-resistant aluminized interior
- Full 18-month factory warranty
- Temperature range to 450°F / 232°C
Advanced Design
Cabinets are as attractive as they are durable. Exteriors are painted light gray and have a hard, scratch-resistant hammer finish. Doors open with high-impact thermoplastic handles. Cabinets have heavy steel double-wall construction. Work space is insulated from the outer cabinet with one inch of high-density mineral wool, and interiors are made of corrosion-resistant aluminized steel.
Controls
Quincy Lab uses quality UL and CSA recognized components in all ovens. The control panel is equipped with an illuminated ON/OFF rocker switch and a heat-cycle pilot light. Temperature is controlled by automatic hydraulic or a bimetal thermostat (models 10GC & 10AF). Hydraulic models offer convenient temperature dial markings in both centigrade and Fahrenheit.
Heating Elements
Energy-efficient, low-watt density incoloy sheathed elements are engineered into a compact design for quick run-up and recovery times. Temperature uniformity is greatly improved by a perforated heat shield which absorbs radiant heat and distributes it more evenly.
Available Models
- Model 10GC - Gravity Convection
- Model 20GC - Gravity Convection
- Model 30GC - Gravity Convection
- Model 40GC - Gravity Convection
- Model 10AF - Air Forced
- Model 20AF - Air Forced
- Model 30AF - Air Forced
- Model 40AF - Air Forced
General Specifications - GC Series (Gravity Convection)
| Specification |
Model 10GC |
Model 20GC |
Model 30GC |
Model 40GC |
Interior Dimensions
Inches (W x H x D) |
12 x 10 x 10 |
13 x 13 x 13 |
18 x 21.8 x 14 |
18 x 15.6 x 12 |
Interior Dimensions
CM (W x H x D) |
30.5 x 25.4 x 25.4 |
33 x 33 x 33 |
45.7 x 55.4 x 35.6 |
45.7 x 39.6 x 30.5 |
Exterior Dimensions
Inches (W x H x D) |
14 x 17.5 x 12.3 |
15 x 21.5 x 15.3 |
20 x 25.5 x 14.3 |
20 x 31.5 x 16.3 |
Exterior Dimensions
CM (W x H x D) |
35.6 x 44.5 x 31.2 |
38 x 54.6 x 38.9 |
50.8 x 64.8 x 36.2 |
50.8 x 80 x 41.4 |
Temperature Maximum
Fahrenheit / Centigrade |
450°F / 232°C |
450°F / 232°C |
450°F / 232°C |
450°F / 232°C |
Capacity
Cubic Feet (Liters) |
0.7 (19.8) |
1.27 (36) |
3.0 (85) |
2.0 (56.6) |
Electrical
Volts / Amps |
115 / 5.2 |
120 / 6.3 |
115 / 10.5 |
120 / 12.5 |
| Watts |
600 |
750 |
1200 |
1500 |
| Plug / NEMA |
5-15P |
5-15P |
5-15P |
5-15P |
Shelves (1" Centers)
Maximum per Unit |
10 |
13 |
16 |
22 |
| Maximum Pounds / Shelf |
35 |
35 |
35 |
35 |
| Weight - Shipping |
42.6 |
57 |
57.2 |
76.2 |
| Weight - Stand Alone |
31.4 |
50.4 |
43.5 |
65.7 |
| Temperature Stability |
+/- 3.0°C / +/- 6.0°F |
+/- 3.0°C / +/- 6.0°F |
+/- 3.0°C / +/- 6.0°F |
+/- 3.0°C / +/- 6.0°F |
Time to Temperature
Ambient to 100°C |
6 Min. |
6.5 Min. |
7.5 Min. |
9 Min. |
Time to Temperature
Ambient to Max |
22 Min. |
25 Min. |
31 Min. |
37 Min. |
Recovery @ 150°C
Door Open 15 Sec. |
3.5 Min. |
5 Min. |
6 Min. |
7 Min. |
Recovery @ 150°C
Door Open 30 Sec. |
6 Min. |
6 Min. |
9 Min. |
11 Min. |
General Specifications - AF Series (Air Forced)
| Specification |
Model 10AF |
Model 20AF |
Model 30AF |
Model 40AF |
Interior Dimensions
Inches (W x H x D) |
12 x 8.25 x 10 |
13 x 11 x 13 |
18 x 19.8 x 14 |
18 x 14.2 x 12 |
Interior Dimensions
CM (W x H x D) |
30.5 x 21 x 25.4 |
33 x 28 x 33 |
45.7 x 50.3 x 35.6 |
45.7 x 36 x 30.5 |
Exterior Dimensions
Inches (W x H x D) |
14 x 20.5 x 12.3 |
15 x 25 x 15.3 |
20 x 29 x 14.3 |
20 x 35 x 16.3 |
Exterior Dimensions
CM (W x H x D) |
35.6 x 52 x 31.2 |
38 x 63.5 x 38.9 |
50.8 x 73.7 x 36.2 |
50.8 x 89 x 41.4 |
Temperature Maximum
Fahrenheit / Centigrade |
450°F / 232°C |
450°F / 232°C |
450°F / 232°C |
450°F / 232°C |
Capacity
Cubic Feet (Liters) |
0.6 (17) |
1.14 (32.3) |
2.86 (81) |
1.83 (51.8) |
Electrical
Volts / Amps |
120 / 6.6 |
120 / 8.8 |
120 / 12.5 |
120 / 12.5 |
| Watts |
800 |
1050 |
1500 |
1500 |
| Plug / NEMA |
5-15P |
5-15P |
5-15P |
5-15P |
Shelves (1" Centers)
Maximum per Unit |
8 |
11 |
14 |
20 |
| Maximum Pounds / Shelf |
35 |
35 |
35 |
35 |
| Weight - Shipping |
37.2 |
84.2 |
72.5 |
91.5 |
| Weight - Stand Alone |
64.2 |
80.8 |
58.7 |
98.5 |
| Temperature Stability |
+/- 3.0°C / +/- 6.0°F |
+/- 3.0°C / +/- 6.0°F |
+/- 3.0°C / +/- 6.0°F |
+/- 3.0°C / +/- 6.0°F |
Time to Temperature
Ambient to 100°C |
6 Min. |
6 Min. |
7 Min. |
9 Min. |
Time to Temperature
Ambient to Max |
23 Min. |
28 Min. |
22 Min. |
39 Min. |
Recovery @ 150°C / 300°F
Door Open 15 Sec. |
4 Min. |
6 Min. |
3 Min. |
6 Min. |
Recovery @ 150°C / 300°F
Door Open 30 Sec. |
6 Min. |
9 Min. |
5 Min |
