Lab Ovens
Quincy Lab, Inc. has been a mainline manufacturer of laboratory ovens and incubators for more than 40 years, dedicated to product value, customer satisfaction, and ongoing product support.
Overview

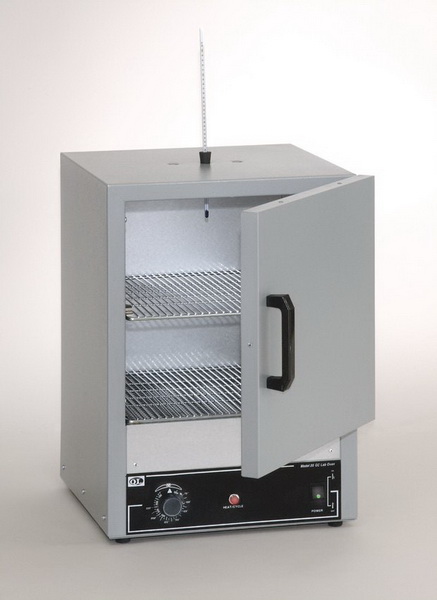

Available in both gravity convection (GC) and air forced (AF) models, these lab ovens are well-crafted and versatile instruments designed to meet the laboratory needs of industry, research organizations, and schools. The GC series gravity convection ovens provide reliable heating performance, while the AF series models offer forced air circulation for more uniform heat distribution throughout the chamber. Both series feature a temperature range to 450°F / 232°C and are competitively priced, offering exceptional value and reliability.
Applications
- Part drying
- Baking
- Curing
- Sterilizing
- Evaporating
- Heat treating
- Annealing
- Testing
Key Features
- Air forced and gravity convection models available
- Durable double-wall construction
- Scratch-resistant hammer finish
- Corrosion-resistant aluminized interior
- Full 18-month factory warranty
- UL and CSA recognized components
- Energy-efficient, low-watt density incoloy sheathed heating elements
- Temperature range to 450°F / 232°C
Advanced Design
Cabinets are as attractive as they are durable. Exteriors are painted light gray and have a hard, scratch-resistant hammer finish. Doors open with high-impact thermoplastic handles. Cabinets have heavy steel double-wall construction. Work space is insulated from the outer cabinet with one inch of high-density mineral wool, and interiors are made of corrosion-resistant aluminized steel.
Controls
The control panel is equipped with an illuminated ON/OFF rocker switch and a heat-cycle pilot light. Temperature is controlled by automatic hydraulic or a bimetal thermostat (models 10GC & 10AF). Hydraulic models offer convenient temperature dial markings in both centigrade and Fahrenheit.
Heating Elements
Energy-efficient, low-watt density incoloy sheathed elements are engineered into a compact design for quick run-up and recovery times. Temperature uniformity is greatly improved by a perforated heat shield which absorbs radiant heat and distributes it more evenly.
General Specifications - Gravity Convection (GC) Models
| Specification |
Model 10GC |
Model 20GC |
Model 30GC |
Model 40GC |
| Interior Dimensions (W x H x D) |
12x10x10 inches
(30.5x25.4x25.4 cm) |
13x13x13 inches
(33x33x33 cm) |
18x21.8x14 inches
(45.7x55.4x35.6 cm) |
18x15.6x12 inches
(45.7x39.6x30.5 cm) |
| Exterior Dimensions (W x H x D) |
14x17.5x12.3 inches
(35.6x44.5x31.2 cm) |
15x21.5x15.3 inches
(38x54.6x38.9 cm) |
20x25.5x14.3 inches
(50.8x64.8x36.2 cm) |
20x31.5x16.3 inches
(50.8x80x41.4 cm) |
| Temperature Maximum |
450°F / 232°C |
450°F / 232°C |
450°F / 232°C |
450°F / 232°C |
| Capacity |
0.7 cubic feet
(19.8 liters) |
1.27 cubic feet
(36 liters) |
3.0 cubic feet
(85 liters) |
2.0 cubic feet
(56.6 liters) |
| Electrical (Volts/Amps) |
115/5.2 |
120/6.3 |
115/10.5 |
120/12.5 |
| Watts |
600 |
750 |
1200 |
1500 |
| Plug/NEMA |
5-15P |
5-15P |
5-15P |
5-15P |
| Shelves (1" centers) - Maximum per Unit |
10 |
13 |
16 |
22 |
| Maximum Pounds per Shelf |
35 |
35 |
35 |
35 |
| Weight - Shipping |
42.6 lbs |
57 lbs |
76.2 lbs |
57.2 lbs |
| Temperature Stability |
±3.0°C / ±6.0°F |
±3.0°C / ±6.0°F |
±3.0°C / ±6.0°F |
±3.0°C / ±6.0°F |
| Time to Temperature - Ambient to 100°C |
6 Min. |
22 Min. |
6 Min. |
22 Min. |
| Time to Temperature - Ambient to Max |
— |
— |
— |
— |
| Recovery @ 150°C - Door Open 15 Sec. |
— |
— |
— |
— |
| Recovery @ 150°C - Door Open 30 Sec. |
— |
— |
— |
— |
General Specifications - Air Forced (AF) Models
| Specification |
Model 10AF |
Model 20AF |
Model 30AF |
Model 40AF |
| Interior Dimensions (W x H x D) |
12x8.25x10 inches
(30.5x21x25.4 cm) |
13x11x13 inches
(33x28x33 cm) |
18x19.8x14 inches
(45.7x50.3x35.6 cm) |
18x14.2x12 inches
(45.7x36x30.5 cm) |
| Exterior Dimensions (W x H x D) |
14x20.5x12.3 inches
(35.6x52x31.2 cm) |
15x25x15.3 inches
(38x63.5x38.9 cm) |
20x29x14.3 inches
(50.8x73.7x36.2 cm) |
20x35x16.3 inches
(50.8x89x41.4 cm) |
| Temperature Maximum |
450°F / 232°C |
450°F / 232°C |
450°F / 232°C |
450°F / 232°C |
| Capacity |
0.6 cubic feet
(17 liters) |
1.14 cubic feet
(32.3 liters) |
2.86 cubic feet
(81 liters) |
1.83 cubic feet
(51.8 liters) |
| Electrical (Volts/Amps) |
120/6.6 |
120/8.8 |
120/12.5 |
120/12.5 |
| Watts |
800 |
1050 |
1500 |
1500 |
| Plug/NEMA |
5-15P |
5-15P |
5-15P |
5-15P |
| Shelves (1" centers) - Maximum per Unit |
8 |
11 |
14 |
20 |
| Maximum Pounds per Shelf |
35 |
35 |
35 |
35 |
| Weight - Shipping |
50.4 lbs |
84.2 lbs |
37.2 lbs |
64.2 lbs |
| Temperature Stability |
±3.0°C / ±6.0°F |
±3.0°C / ±6.0°F |
±3.0°C / ±6.0°F |
±3.0°C / ±6.0°F |
| Time to Temperature - Ambient to 100°C |
6.5 Min. |
25 Min. |
6 Min. |
23 Min. |
| Time to Temperature - Ambient to Max |
6 Min. |
28 Min. |
7.5 Min. |
31 Min. |
| Recovery @ 150°C - Door Open 15 Sec. |
9 Min. |
37 Min. |
7 Min. |
22 Min. |
| Recovery @ 150°C - Door Open 30 Sec. |
9 Min. |
39 Min. |
— |
— |
| Recovery @ 150°C / 300°F - Door Open 15 Sec. |
3.5 Min. |
6 Min. |
5 Min. |
6 Min. |
| Recovery @ 150°C / 300°F - Door Open 30 Sec. |
4 Min. |
6 Min. |
6 Min. |
9 Min. |
| Weight - Stand Alone |
43.5 lbs |
72.5 lbs |
91.5 lbs |
58.7 lbs |
Note: Standard models voltage only; 230 voltage available. Performance characteristics for standard voltage models; alternate voltage models may vary. All tests conducted under controlled laboratory conditions.
Installation Requirements
Minimum clearances for proper operation: 4 inches at rear, 18 inches at top, 4 inches at sides.
