Lab Ovens
Quincy Lab offers high-quality laboratory ovens designed to meet the needs of industry, research organizations, and schools. Available in both gravity convection (GC) and air forced (AF) series, these ovens are well-crafted and versatile for a wide range of laboratory applications.
Applications
- Part drying
- Baking
- Curing
- Sterilizing
- Evaporating
- Heat treating
- Annealing
- Testing
Key Features
- Air forced and gravity convection models available
- Durable double-wall construction
- Scratch-resistant hammer finish
- Corrosion-resistant aluminized interior
- Temperature range to 450°F / 232°C
- Full 18-month factory warranty
Advanced Design
Cabinets feature attractive and durable construction with light gray exteriors and a hard, scratch-resistant hammer finish. Doors open with high-impact thermoplastic handles. Heavy steel double-wall construction provides superior insulation, with one inch of high-density mineral wool separating the work space from the outer cabinet. Interiors are made of corrosion-resistant aluminized steel.
Controls
Quality UL and CSA recognized components are used in all ovens. The control panel is equipped with an illuminated ON/OFF rocker switch and a heat-cycle pilot light. Temperature is controlled by automatic hydraulic or bimetal thermostat (models 10GC and 10AF). Hydraulic models offer convenient temperature dial markings in both centigrade and Fahrenheit.
Heating Elements
Energy-efficient, low-watt density incoloy sheathed elements are engineered into a compact design for quick run-up and recovery times. Temperature uniformity is greatly improved by a perforated heat shield which absorbs radiant heat and distributes it more evenly.
GC and AF Models

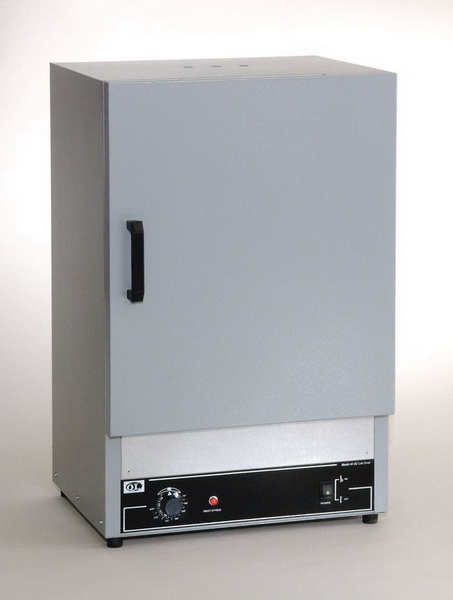

The GC series gravity convection ovens are designed to meet the laboratory needs of industry, research organizations, and schools. The AF series models offer forced air circulation allowing for a more uniform distribution of heat throughout the chamber, which also facilitates evaporating. Both GC and AF series ovens have a temperature range to 450°F / 232°C.
General Specifications - Gravity Convection (GC) Models
| Specification |
Model 10GC |
Model 20GC |
Model 30GC |
Model 40GC |
| Interior Dimensions (W x H x D) |
12x10x10 inches
(30.5x25.4x25.4 cm) |
13x13x13 inches
(33x33x33 cm) |
18x21.8x14 inches
(45.7x55.4x35.6 cm) |
18x15.6x12 inches
(45.7x39.6x30.5 cm) |
| Exterior Dimensions (W x H x D) |
14x17.5x12.3 inches
(35.6x44.5x31.2 cm) |
15x21.5x15.3 inches
(38x54.6x38.9 cm) |
20x25.5x14.3 inches
(50.8x64.8x36.2 cm) |
20x31.5x16.3 inches
(50.8x80x41.4 cm) |
| Temperature Maximum |
450°F / 232°C |
450°F / 232°C |
450°F / 232°C |
450°F / 232°C |
| Capacity |
0.7 cu ft (19.8 liters) |
1.27 cu ft (36 liters) |
3.0 cu ft (85 liters) |
2.0 cu ft (56.6 liters) |
| Electrical (Volts/Amps) |
115/5.2 |
120/6.3 |
115/10.5 |
120/12.5 |
| Watts |
600 |
750 |
1200 |
1500 |
| Plug/NEMA |
5-15P |
5-15P |
5-15P |
5-15P |
| Shelves (1" Centers) |
10 maximum per unit |
13 maximum per unit |
16 maximum per unit |
22 maximum per unit |
| Maximum Pounds per Shelf |
35 |
35 |
35 |
35 |
| Weight - Shipping |
42.6 lbs |
57 lbs |
76.2 lbs |
57.2 lbs |
| Weight - Stand Alone |
31.4 lbs |
42.6 lbs |
50.4 lbs |
43.5 lbs |
| Temperature Stability |
+/- 3.0°C / +/- 6.0°F |
+/- 3.0°C / +/- 6.0°F |
+/- 3.0°C / +/- 6.0°F |
+/- 3.0°C / +/- 6.0°F |
| Time to Temp (Ambient to 100°C) |
22 Min. |
25 Min. |
23 Min. |
28 Min. |
| Time to Temp (Ambient to Max) |
6 Min. |
6.5 Min. |
6 Min. |
6 Min. |
| Recovery @ 150°C / 300°F (Door Open 15 Sec.) |
3.5 Min. |
5 Min. |
4 Min. |
6 Min. |
| Recovery @ 150°C / 300°F (Door Open 30 Sec.) |
6 Min. |
6 Min. |
6 Min. |
9 Min. |
General Specifications - Air Forced (AF) Models
| Specification |
Model 10AF |
Model 20AF |
Model 30AF |
Model 40AF |
| Interior Dimensions (W x H x D) |
12x8.25x10 inches
(30.5x21x25.4 cm) |
13x11x13 inches
(33x28x33 cm) |
18x19.8x14 inches
(45.7x50.3x35.6 cm) |
18x14.2x12 inches
(45.7x36x30.5 cm) |
| Exterior Dimensions (W x H x D) |
14x20.5x12.3 inches
(35.6x52x31.2 cm) |
15x25x15.3 inches
(38x63.5x38.9 cm) |
20x29x14.3 inches
(50.8x73.7x36.2 cm) |
20x35x16.3 inches
(50.8x89x41.4 cm) |
| Temperature Maximum |
450°F / 232°C |
450°F / 232°C |
450°F / 232°C |
450°F / 232°C |
| Capacity |
0.6 cu ft (17 liters) |
1.14 cu ft (32.3 liters) |
2.86 cu ft (81 liters) |
1.83 cu ft (51.8 liters) |
| Electrical (Volts/Amps) |
120/6.6 |
120/8.8 |
120/12.5 |
120/12.5 |
| Watts |
800 |
1050 |
1500 |
1500 |
| Plug/NEMA |
5-15P |
5-15P |
5-15P |
5-15P |
| Shelves (1" Centers) |
8 maximum per unit |
11 maximum per unit |
14 maximum per unit |
20 maximum per unit |
| Maximum Pounds per Shelf |
35 |
35 |
35 |
35 |
| Weight - Shipping |
37.2 lbs |
58.7 lbs |
80.8 lbs |
65.7 lbs |
| Weight - Stand Alone |
64.2 lbs |
72.5 lbs |
84.2 lbs |
91.5 lbs |
| Temperature Stability |
+/- 3.0°C / +/- 6.0°F |
+/- 3.0°C / +/- 6.0°F |
+/- 3.0°C / +/- 6.0°F |
+/- 3.0°C / +/- 6.0°F |
| Time to Temp (Ambient to 100°C) |
31 Min. |
37 Min. |
22 Min. |
39 Min. |
| Time to Temp (Ambient to Max) |
7.5 Min. |
9 Min. |
7 Min. |
9 Min. |
| Recovery @ 150°C / 300°F (Door Open 15 Sec.) |
2.5 Min. |
7 Min. |
3 Min. |
6 Min. |
| Recovery @ 150°C / 300°F (Door Open 30 Sec.) |
3.5 Min. |
11 Min. |
5 Min. |
8 Min. |
Note: Standard models voltage only, 230 voltage available. Performance characteristics are for standard voltage models; alternate voltage models may vary. All tests conducted under controlled laboratory conditions. Minimum clearances: 4" top, 18" rear, 4" sides.
