Melting Point Apparatus for Wax

For the determination of the melting point (cooling curve) pf petroleum wax, paraffin, or scale wax by the cooling-curve technique, in accordance with ASTM D87.

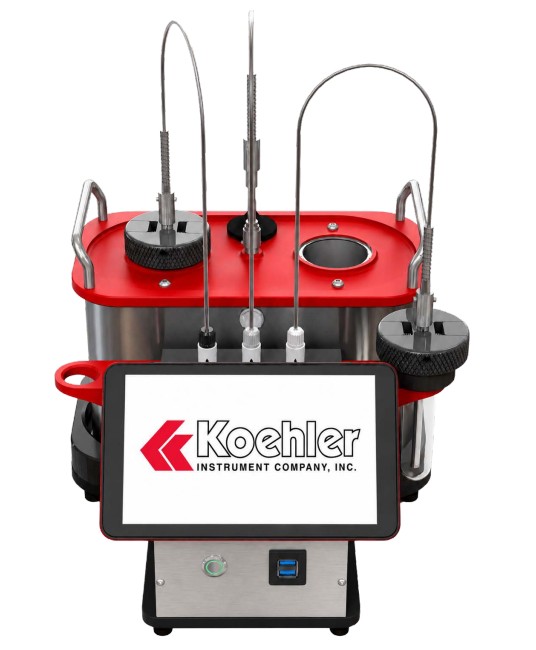

The Automatic Wax Melting Point Apparatus is a benchtop, fully-automatic wax melting point apparatus for determination of melting point of petroleum/paraffin/scale wax using the cooling/heating technique. Designed for high throughput and repeatability with calibrated RTD sensing, touchscreen operation, and USB connectivity.

- Conforms to ASTM D87 and related specifications
- Fully automatic system for the determination of petroleum wax melting point, once sample is liquefied and inserted
- Calibrated traceable RTD probes eliminates the use of mercury thermometers
- Dual test cells in a single removable water bath for parallel testing and increased throughput
- Intuitive GUI interface with visual and audible test status
- Store and export test results via USB 3.0 Ports.

SPECIFICATIONS:
Conforms to the specifications of: ASTM D87; IP 55;TAPPI T 630; FED-STD-791
Test positions: Two independent cells
Temperature sensor: Calibrated RTD
RTD Temperature Sensor Range: 20 °C to 100 °C
RTD Temperature Sensor Accuracy: +/- 0.05 °C
Water Bath Capacity: 3.7 Liters
Timing Resolution: 0.01s (timing accuracy to ± 0.001s)
Instrument Power: 5.1 VDC at 3A peak, CE mark
Data Output: USB 3..
