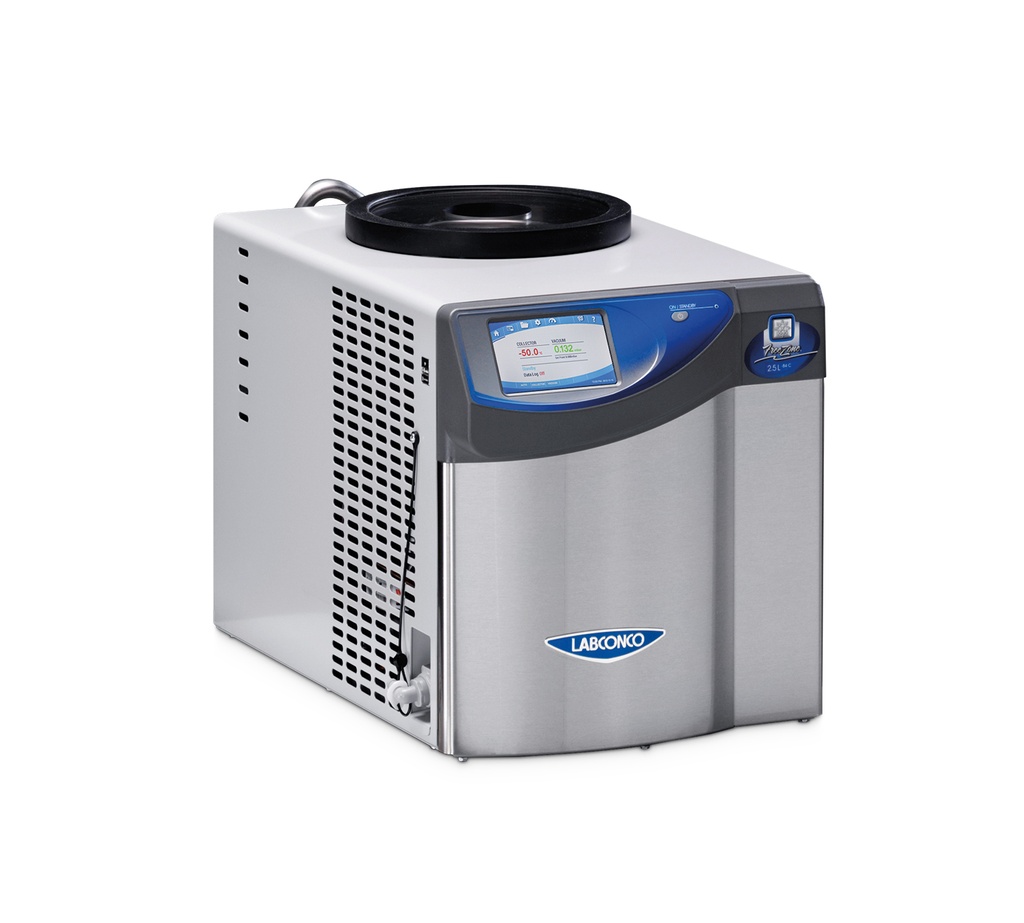

Benchtop Freeze Dryer

FreeZone 2.5 Liter Benchtop Freeze Dryers are designed for lyophilizing light to moderate sample loads. The compact design is ideal for labs with limited floor space.

The upright stainless steel collector coil holds 2.5 liters of ice before defrosting and three collector coil temperature configurations are available: -50° C for aqueous samples, -84° C for a wide range of laboratory solvents, and -105° C for dilute ethanol and methanol mixtures.

Collector Temperature: -50°C, -58°F
Ice Holding Capacity: 2.5L
Vacuum Pump Displacement Required: 98 L/min or larger displacement

Lyo-Works OS provides a real time display of collector temperature, vacuum level and optional End-Zone end point detection system, shown on a 5 in. full color, capacitive touch screen. Models with PTFE-coated collectors that can withstand corrosive compounds are available.

Stay Connected
View Real-Time Sample Data
Get Consistent, High Quality Results
Make Challenging Samples Easy

A vacuum pump with a displacement of at least 98 L/min, 0.007 mBar ultimate pressure and fitting suitable for 3/4 in. ID vacuum hose is required.

FEATURES:
~ Upright stainless steel collector coil capable of holding 2.5 L of ice before defrosting. Collector lid, 3/4 in. thick, has neoprene gasket and 3 in. dia. port to connect drying accessories (sold separately)
~ Full color, 5 in. capacitive touch screen with Lyo-Works OS:
Real time display of collector temperature, vacuum level, and optional End-Zone™ end point detection system.
Start–up mode for collector cool-down and vacuum pull-down (automatic or manual).
Operating mode (standby or run).
Vacuum set point, alerts, diagnostic tests, user manual, defrost control, and optional drying accessory parameters.
Data logging stores and displays data in table or chart format, and may be exported via USB or Ethernet.
Settings include language (English, Spanish, German, French, Italian, Chinese, Japanese, Portuguese), time, time zone, temperature (° C or ° F), and vacuum (mBar, Torr, or Pa).
Alerts are programmable to send via Ethernet connection to user-entered email addresses.
Display settings include brightness, touch sounds (on/off), and screen time out in minutes (on/off).
Maintenance alert settings include vacuum pump oil change, refrigeration cleaning, total operating hours and line voltage offset.
Level-specific security lock-out prevents changes to programs and other system parameters
~ Hot gas defrost with auto shut off at +60° C (+140° F).
~ On/standby switch.
~ Moisture sensor that prevents refrigeration or vacuum start-up when moisture is detected in the drain line.
~ Vacuum control valve that maintains vacuum level set point.
~ Vacuum break valve that bleeds air into the system when power to the freeze dryer or vacuum pump is shut off. If a power outage less than approximately 5 minutes occurs, the freeze dryer will restart and the refrigeration and vacuum system will resume operation once power is restored. If the power failure is more than approximately 5 minutes and the collector warms above safe limits, the freeze dryer will not automatically restart.
~ Side-mounted USB port and rear-mounted Ethernet connection.
~ Side-mounted, quick-disconnect drain hose fitting and lanyard with hose connector. 18", 1/4" ID silicone tubing and clamp included.
~ Rear-mounted electrical receptacle for vacuum pump connection.
~ 3-wire electrical cord with plug.
~ 3/4" OD vacuum connection, 50" of 3/4" ID vacuum hose and two clamps.

OPTIONS INCLUDE:
~ Single 1/3 hp HCFC/CFC-free refrigeration system to cool collector to -50°C (-58°F), two 1/3 hp HCFC/CFC-free refrigeration systems to cool collector to -84°C (-119°F) or two 1/2 hp HCFC/CFC-free refrigeration systems to cool collector to -105°C (-157°F) at 60 Hz or -102°C (-152°F) at 50 Hz. Collectors reaching -50°C include acrylic lid. Collectors reaching -84°C or -105°C include stainless steel lid
~ PTFE-coated collector coil and chamber for corrosive compounds
~ Region-specific electrical plug configurations

REQUEST PRICING ON OTHER MODELS, SUCH AS BENCH-TOP MODELS, -84°C MODELS, DIFFERENT VOLTAGES, OR OPTIONS SUCH AS A PURGE VALVE OR STOPPERING TRAY DRYER

REQUIRED ACCESSORIES (Not Included):
- Vacuum pump with a displacement of at least 98 L/min, 0.02 mBar ultimate pressure and fitting suitable for 3/4" ID vacuum hose.
- Freeze Dry Glassware, Small Tray Dryer, or other drying accessory
