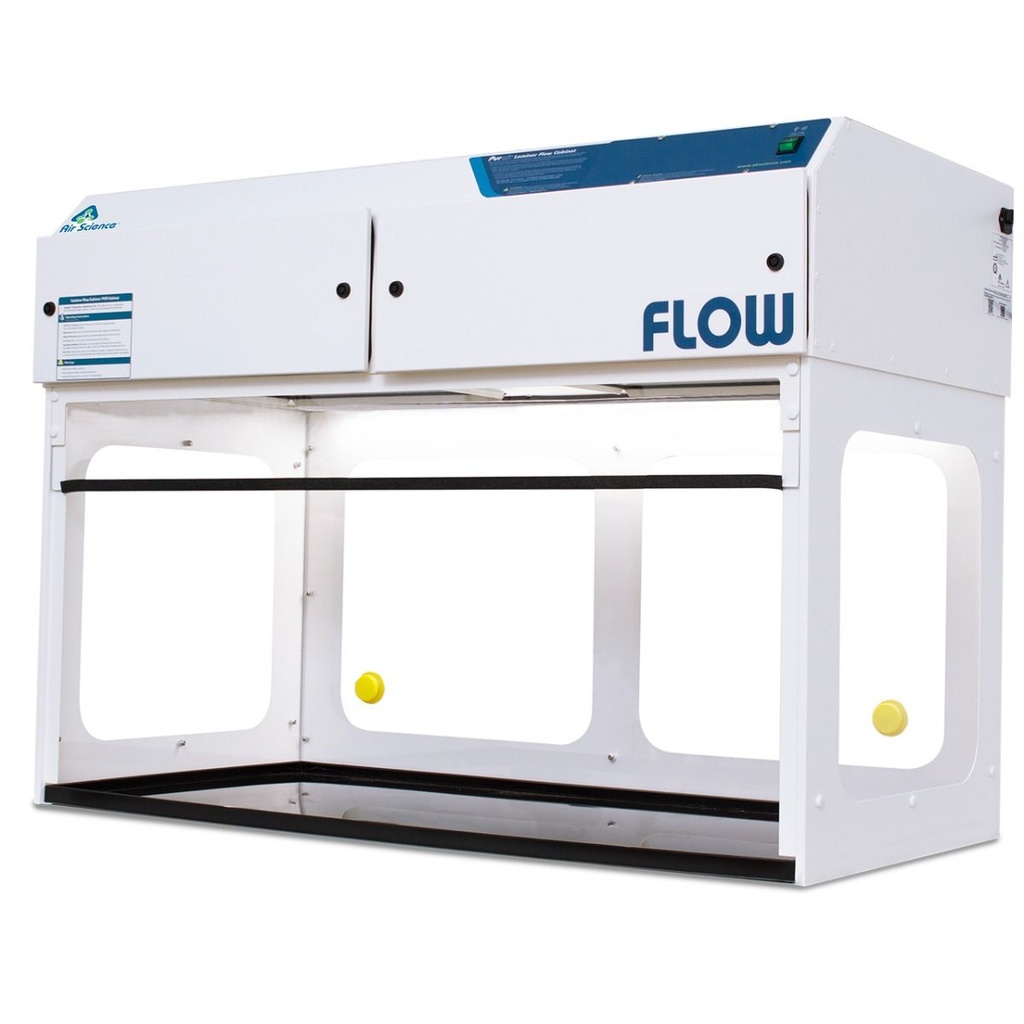

Purair FLOW Laminar Flow Cabinets
The Purair FLOW Series laminar flow cabinets deliver ISO Class 5 air quality through vertical laminar airflow and HEPA filtration. These cabinets protect the work surface from biological or particulate contamination while providing unrestricted access to the work zone. Ideal for pharmacy compounding of non-toxic agents, cell culture, instrument assembly, and other processes where product protection is essential but operator protection from hazardous materials is not required.
Available Sizes
Three cabinet widths available: 24", 36", and 48". Each model features stackable sections for easy portability and quick setup. Cabinets may be bench mounted or positioned on an optional mobile cart or base stand.
Energy Efficiency
Single EC blower motor delivers exceptional energy efficiency with power consumption ranging from 37 to 115 watts depending on model size. The FLOW-24 consumes just 37 watts, the FLOW-36 uses 78 watts, and the FLOW-48 operates at 115 watts.
Applications
- Mycology and Food Microbiology
- Plant and Mammalian Cell Culture
- Clinical Pharmacies and Hospitals
- Cleanrooms
- Semiconductor Assembly
- Pharmaceutical Production
- Aerospace Contamination Control
- Medical Device Assembly
- General Research Protocols
Construction and Materials
The cabinet frame features white epoxy-coated steel with white legs on cabinet sides. Transparent acrylic windows on the back and sides provide 360-degree visibility, allowing ambient illumination into the chamber and unobstructed viewing of work zone contents. The durable, chemically resistant construction includes a microbial powder finish coating. Clear back and side panels enhance visibility while maintaining clean air conditions.
Airflow and Filtration Performance
Room air enters from the cabinet top through a disposable pre-filter where larger particles are trapped. Air then passes through the HEPA filter and flows uniformly downward across the work zone at an average velocity of 0.30 m/s (60 fpm) at initial setpoint, measured 6" (150 mm) from the filter face. This gentle vertical laminar flow provides sufficient air changes to eliminate cross contamination and maintain optimum cleanliness before exiting across the open cabinet front.
Multiplex Filtration System
| Filter Stage |
Type |
Specifications |
| Pre-Filter |
Disposable polyester fibers |
85% arrestance |
| Main Filter |
HEPA |
99.97% efficiency at 0.3 μm |
The pre-filter may be replaced while the unit is in operation, accessible from the exterior top of the cabinet. The main HEPA filter is easy to replace with no tools required. A screw compression clamp ensures an even seal at the filter peripheral face to prevent bypass leakage.
Operational Features
- Centrifugal EC blower for low noise and minimal vibration
- Energy-saving LED lighting positioned away from laminar flow area
- Main On/Off switch for fan and lighting
- Solid-state fan speed control with RFI filter maintains blower uniformity
- Two standard knock-out pass through ports on rear wall for safe routing of instrument cords, cables, and leads
- Filter door lock prevents unauthorized removal or accidental exposure to saturated filters
- Wide knob filter clamps located forward of assembly for simplified filter removal and replacement
Technical Specifications
| Model |
Voltage |
Nominal Width |
Internal Height |
Internal Depth |
External (W x D x H) |
Net Weight |
| FLOW-24-A |
120V, 60Hz |
24" / 610 mm |
23.29" / 591.5 mm |
22.5" / 571 mm |
24" x 24" x 35" / 610 x 610 x 889 mm |
72 lbs / 33 kg |
| FLOW-24-G |
230V, 50Hz |
24" / 610 mm |
23.29" / 591.5 mm |
22.5" / 571 mm |
24" x 24" x 35" / 610 x 610 x 889 mm |
72 lbs / 33 kg |
| FLOW-36-A |
120V, 60Hz |
36" / 914 mm |
23.29" / 591.5 mm |
22.5" / 571 mm |
36" x 24" x 35" / 914 x 610 x 889 mm |
99 lbs / 45 kg |
| FLOW-36-G |
230V, 50Hz |
36" / 914 mm |
23.29" / 591.5 mm |
22.5" / 571 mm |
36" x 24" x 35" / 914 x 610 x 889 mm |
99 lbs / 45 kg |
| FLOW-48-A |
120V, 60Hz |
48" / 1219 mm |
23.29" / 591.5 mm |
22.5" / 571 mm |
48" x 24" x 35" / 1219 x 610 x 889 mm |
138 lbs / 63 kg |
| FLOW-48-G |
230V, 50Hz |
48" / 1219 mm |
23.29" / 591.5 mm |
22.5" / 571 mm |
48" x 24" x 35" / 1219 x 610 x 889 mm |
138 lbs / 63 kg |
Optional Accessories
| Accessory |
FLOW-24 |
FLOW-36 |
FLOW-48 |
| ULPA Filter (99.999% at 0.12 μm) |
ASTS-030U |
ASVLFP536-030U |
ASTS-030U (2) |
| Spill Tray (Polypropylene) |
TRAY-P5-24S |
TRAY-P5-36S |
TRAY-P5-48S |
| Spill Tray (Stainless Steel) |
TRAY-P5-24S-SS |
TRAY-P5-36S-SS |
TRAY-P5-48S-SS |
| Base Stand, Mobile, with Casters |
CART-25 |
CART-36 |
CART-50 |
| Base Cabinet, Fixed (Metal) |
CART-MCC-25 |
CART-MCC-36 |
CART-MCC-50 |
| Base Cabinet, Fixed (Polypropylene) |
CART-SSC-25 |
CART-SSC-36 |
CART-SSC-50 |
| Fire Safety Cabinet Base |
CART-FSC-25 |
CART-FSC-36 |
CART-FSC-50 |
Removable spill trays available in polypropylene or stainless steel for easy cleaning. Mobile base stands provide a lower storage shelf, accommodate wheelchair access, and include locking casters to fix the hood in place. Fixed base cabinets provide storage space below the work surface. Fire safety cabinet bases offer flame resistant safe storage for combustible and flammable liquids.
Standards and Compliance
- Quality Management Systems: ISO 9001:2015
- Environment: ISO 14001:2015
- Electrical Safety: UL-C-61010-1, CAN/CSA C22.2 61010-1-12, EN 61010-1:2010
- CE Mark
- ENERGY STAR Partner
