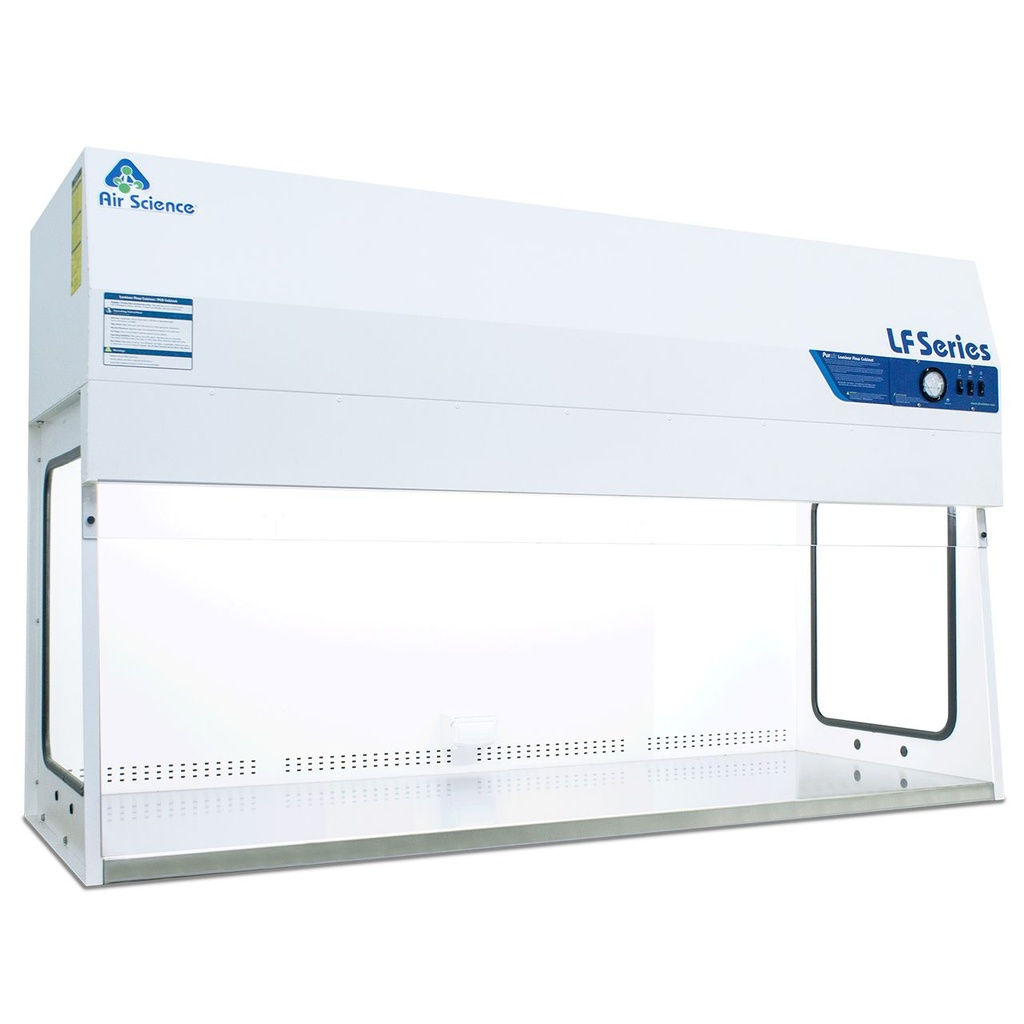

Laminar Flow Clean Bench Hood

Purair HLF Series Horizontal Laminar Flow Cabinets

The Purair HLF Series delivers horizontal laminar airflow to protect equipment and work zone contents from particulate contamination. Designed for non-hazardous applications requiring sterile work environments, these cabinets feature Multiplex ULPA Filtration technology that creates clean work conditions across a wide range of laboratory and industrial applications. Available in six widths with standard or stainless steel interior configurations.

Available in Six Widths

• 24" / 610 mm nominal width
• 36" / 914 mm nominal width
• 48" / 1219 mm nominal width
• 60" / 1524 mm nominal width
• 72" / 1829 mm nominal width
• 96" / 2438 mm nominal width

Horizontal Airflow Characteristics

In horizontal flow cabinets, the airflow does not directly impinge on the work surface but rather is smoothly drawn across it, creating less turbulence. Room air enters from the top of the cabinet through a disposable pre-filter that traps larger particles and increases filter life. Air is forced evenly across the ULPA filter in a stream of clean, uniform air within the work zone, diluting and flushing airborne contaminants from the interior. The purified air travels across the work zone in a horizontal, unidirectional stream and exits the work zone across the entire open cabinet front. Airflow exits directly towards the user. Large or tall equipment in a horizontal flow cabinet can interrupt airflow more than in a vertical flow cabinet, which may create more turbulence and possible "dead" spots where airflow is lower.

Filtration Technology

All models use ULPA filters with 99.999% efficiency at particle sizes between 0.1 to 0.3 μm. Air cleanliness meets and exceeds ISO Class 4. The main filter gasket evenly seals the filter face to prevent bypass air leakage through pour-in-place silicone gasket that outperforms traditional style stick-on "dove-tail" gasketing. Disposable polyester fiber pre-filters provide 85% arrestance.

Standard Cabinet Features

• Provides sterile work zone for aseptic techniques
• 0.4 m/s (80 fpm) flow velocity measured 6"/150 mm from filter
• Stainless steel work surface with no spill retention
• Spring loaded filter clamping with adjustable tension for gasket aging
• External rotor blower with low noise and vibration levels
• Compact LED cabinet lamp located away from laminar flow area
• Recessed fan speed control
• Side windows allow ambient light and provide unobstructed visibility (not available on stainless steel models)
• Ergonomically angled front improves reach and comfort
• GFCI outlet (5A maximum) to power equipment in cabinet
• Minihelic ULPA pressure gauge to measure filter performance
• Available in 120V, 60Hz and 230V, 50Hz voltages

Construction Options

Standard models feature powder coated interior with stainless steel work surface and tempered glass side windows. Stainless steel interior models (-SS) available for enhanced chemical resistance and durability. White epoxy coated steel frame exterior. All cabinet components are cleanroom compatible.

Control Panel

Standard control panel includes On/Off switch for fan, lighting, GFCI outlets, and Minihelic ULPA pressure gauge to measure filter condition. Optional UV control panel adds UV lamp key switch for ultraviolet sterilization between operating periods.

Applications

Suitable for applications that generate no biohazardous materials and do not require operator protection:

• Mycology and Food Microbiology
• Plant and Mammalian Cell Culture
• Clinical Pharmacy and Hospitals
• Cleanrooms
• Semiconductor Assembly
• Pharmaceutical
• Aerospace
• Medical Device Assembly
• Research Laboratories

Sterile Compounding Compliance

When used according to best practices, the Purair LF Series cabinet encourages compliance with criteria set forth by USP 797 for sterile preparation in pharmaceutical compounding of nonhazardous agents. These include injectables, IV admixtures, pastes and ointments and irrigating solutions which are protected by filtered air blown over the work surface in a laminar flow.

HLF Standard Height Models – Dimensions and Weights

Internal height measured from the bottom of the head unit to the top of the worksurface. Shipping dimensions without base stand: 40" × 44" × 54" / 1016 × 1118 × 1372 mm (24", 36" models); 45" × 44" × 54" / 1143 × 1118 × 1372 mm (36" model); 60" × 44" × 54" / 1524 × 1118 × 1372 mm (48" model); 70" × 44" × 54" / 1778 × 1118 × 1372 mm (60" model); 91" × 44" × 54" / 2311 × 1118 × 1372 mm (72" model); 110" × 44" × 54" / 2794 × 1118 × 1372 mm (96" model).

HLF-XT Extra Tall Models – Dimensions and Weights

Shipping dimensions for XT models: 40" × 44" × 60" / 1016 × 1118 × 1524 mm (24" model); 45" × 44" × 60" / 1143 × 1118 × 1524 mm (36" model); 60" × 44" × 60" / 1524 × 1118 × 1524 mm (48" model); 70" × 44" × 60" / 1778 × 1118 × 1524 mm (60" model); 91" × 44" × 60" / 2311 × 1118 × 1524 mm (72" model); 110" × 44" × 60" / 2794 × 1118 × 1524 mm (96" model).

Optional Accessories

• Static Dissipative Work Surface: Composite work surface resists and dissipates static charges to protect sensitive work product
• Mobile Base Stands: Floor-standing base with 860 mm (34") height available with locking casters, leveling feet, or motorized height adjustment
• Service Fitting: Sidewall mounting for petcocks, faucets and valves (maximum of 4 per cabinet)
• IV Bar and "S" Hooks: Interior bar spanning cabinet width to hang IV bags and other equipment
• Ionization Bar: Generates continuous flow of positive and negative ions to neutralize surface static charges
• UV Lamp: Creates light emission conditions for surface decontamination; includes timer, door microswitch, fully closing front sash and UV filtering clear polycarbonate panels (factory installed, specify when ordering)
• Removable Front Cover: Encloses work zone when unit is not in operation

Installation and Operation

Cabinets are designed for desktop use or installation on the optional mobile base stand. Each cabinet is factory tested for safety and performance in accordance with international standards. Units are shipped fully assembled—no installation is required; just plug them in and use them. The high capacity air handling system delivers flow velocity of 0.4 m/s (80 fpm). Energy efficient external rotor blower design reduces operating costs.

Quality and Compliance

Purair Laminar Flow cabinets comply with current technical and safety regulations. Quality Management Systems: ISO 9001:2015. Environmental: ISO 14001:2015. Electrical Safety: UL-C-61010-1, CAN/CSA C22.2 61010-1-12, EN 61010-1
