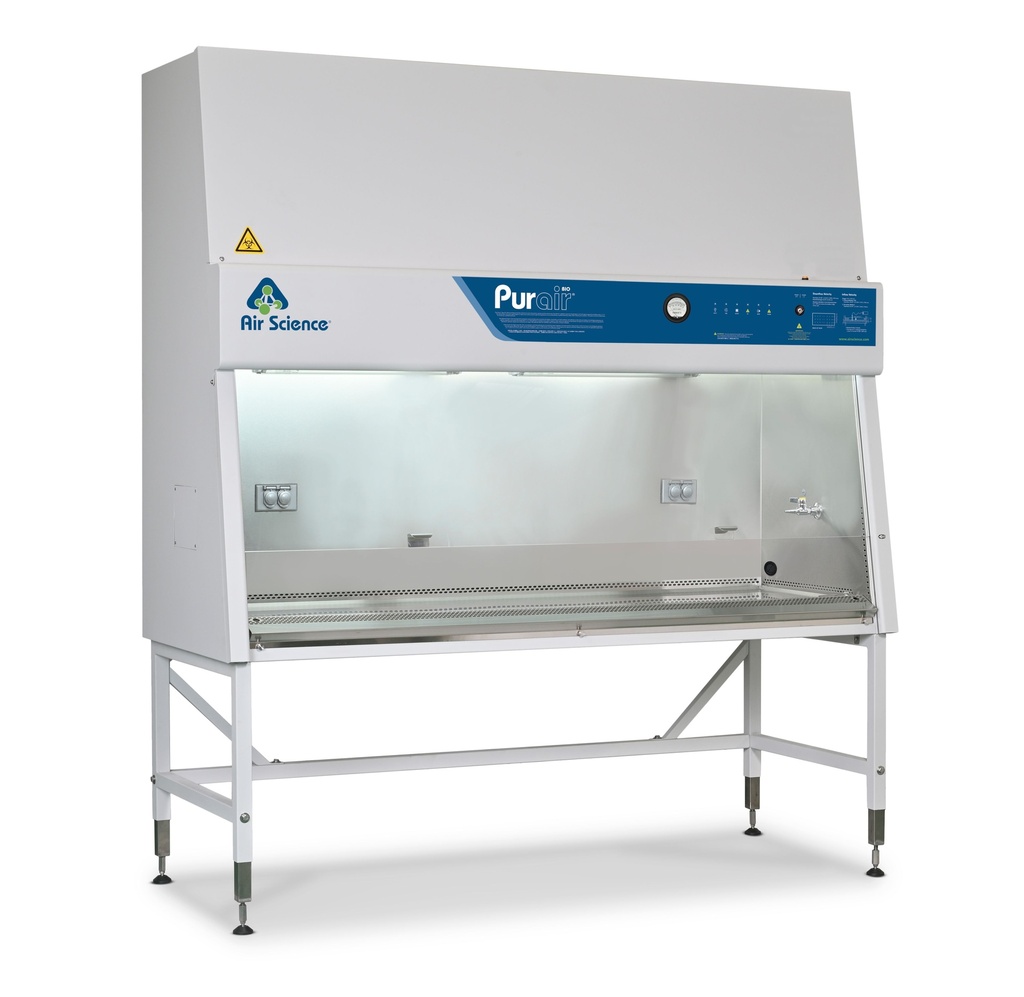

Purair BIO Class II, Type A2 Biological Safety Cabinet
The Purair BIO biological safety cabinet delivers world-class energy efficiency with power consumption ranging from 220 to 490 watts. A single EC blower motor design ensures lower cost of ownership while maintaining exceptional safety and performance standards. Available in multiple sizes with NSF/ANSI 49 certification for 4-foot and 6-foot models and EN12469 compliance across the product line.
Energy Efficiency and Cost Savings
The Purair BIO features one of the world's most energy-efficient designs for biological safety cabinets. The single EC brushless DC motor converts over 80% of output power to kinetic energy, saving up to 86% compared to traditional PSC motors. The motor automatically adjusts speed to maintain compliant airflow at all critical points while compensating for filter loading and facility voltage fluctuations. This design eliminates the need for dual motor synchronization, reducing maintenance costs and simplifying airflow adjustments.
| Model Size |
Power Consumption |
| 3 ft. |
220 watt |
| 4 ft. |
300 watt |
| 5 ft. |
400 watt |
| 6 ft. |
490 watt |
Protection Capabilities
The Purair BIO provides comprehensive protection for operator, product, and environment. It is designed for working with biosafety agents at levels 1, 2, and 3 in accordance with US and International Standards. HEPA filtration of both downflow and exhaust paths establishes a primary containment work area suitable for life science research, cell culture processing, and sterile product preparation.
- Operator protection from biological particulates
- Product protection through clean downflow air
- Environmental protection via HEPA-filtered exhaust
- Mitigation of cross-contamination on work surfaces
Advanced Design Elements
The cabinet maintains negative pressure during operation to prevent contaminants from escaping the work area. An innovative surrounded air intake grille keeps all contaminated air contained within the cabinet and isolated through double-wall design. The 6 mm anti-ultraviolet tempered glass window provides maximum operator protection, while the 10° angled design reduces head and elbow discomfort, eye strain, and fatigue.
Core Design Features
- Quiet, internal EC brushless DC motor ensures sufficient airflow while minimizing energy consumption
- Simple, reliable membrane-style switches with easy-to-read analog Minihelic gauge
- Patented Quick Access HEPA Filtration System allows front-side filter changes by a single person without tools
- Protective screen at bottom of rear air return plenum prevents paper products from entering blower system
- Two standard 70 mm NSF-approved pass-thru ports on right and left sidewalls maintain containment integrity
- Double-wall plenum design surrounds contaminated areas with negative pressure
- Heavy-gauge, one-piece liner with coved corners for enhanced durability
- Frameless sash and narrow-front grille create ergonomic work environment
- #304 stainless steel elbow/arm rest provides ergonomic forearm support
Filtration and Airflow Performance
The integrated HEPA filtration system provides clean air to the work surface in a gentle vertical laminar flow pattern. The cabinet maintains an airflow ratio of 70% recirculation to 30% exhaust to ensure operator protection. Airflow patterns are precisely tuned and tested to create an optimum air curtain on the front aperture.
HEPA Filter Specifications
- Supply and exhaust HEPA filters: 99.99% efficiency at 0.3 microns (Class H14)
- Integral groove filled with gel at air inlet side ensures perfect seal to housing
- Aluminum frame guards against swelling typical of wooden framed filters
- No aluminum separators for unobstructed airflow
- Balanced airflow promotes uniform filter loading to prolong filter life
Airflow Velocities
| Parameter |
NSF 49 |
EN12469 |
| Face Velocity (Cabinet Intake) |
~100 fpm / ~0.5 m/s |
~80 fpm / ~0.4 m/s |
Standard Control System
All Purair BIO EN models are equipped with membrane-style switches for simplified operation and user interface while maintaining essential functions.
- Analog Minihelic gauge verifies airflow
- On/Off key-switch controls main power
- Soft key switches control interior lighting, UV lamp, interior outlet activation, and fan
- Sash alarm indicator activates audible and visual warning of unsafe sash position (10 inches or 25 cm from bottom of cabinet)
- Mute button silences alarm for specified time
- Safety interlock feature activates fan and fluorescent light when sash opens; automatically switches off UV light
Installation and Flexibility
The slim profile design with a width of 31.10 inches passes easily through a standard 38-inch wide doorway to accommodate a variety of new or replacement installations. The cabinet is self-contained and does not require venting to the outside. Because filtered air is returned to the room, there is no increased load requirement for facility HVAC make-up air, eliminating the cost of additional ductwork construction and HVAC maintenance.
Service Connections
- Duplex electrical outlets with splash-proof, UL listed covers (US models)
- CE certified electrical outlets (EN models)
- CSA certified service valves for gas, air, and vacuum available
- Maximum working pressure: 75 PSI
Technical Specifications
| Model |
AS-AHA-103-CA-B |
AS-AHA-133-CA-B |
AS-AHA-163-CA-B |
AS-AHA-193-CA-A |
| Size |
3 ft. |
4 ft. |
5 ft. |
6 ft. |
| Voltage |
115V, AC, 60Hz |
115V, AC, 60Hz |
115V, AC, 60Hz |
115V, AC, 60Hz |
| NSF 49 |
No |
Yes |
No |
Yes |
| EN12469 |
Yes |
Yes |
Yes |
Yes |
| IEC61010-1 |
Yes |
Yes |
Yes |
Yes |
| Internal Dimensions (W × D × H) |
36.2" × 24.6" × 28" / 920 × 626 × 709 mm |
48" × 24.6" × 28" / 1220 × 626 × 709 mm |
59.8" × 24.6" × 28" / 1520 × 626 × 709 mm |
71.6" × 24.6" × 28" / 1820 × 626 × 709 mm |
| External Dimensions (W × D × H) |
40.7" × 31.1" × 60.5" / 1034 × 789 × 1537 mm |
52.5" × 31.1" × 60.5" / 1334 × 789 × 1537 mm |
64.3" × 31.1" × 60.5" / 1634 × 789 × 1537 mm |
76.1" × 31.1" × 60.5" / 1934 × 789 × 1537 mm |
| Shipping Dimensions (W × D × H) |
43.3" × 33.5" × 77.8" / 1100 × 850 × 1950 mm |
55.1" × 33.5" × 77.8" / 1400 × 850 × 1950 mm |
67" × 33.5" × 77.8" / 1700 × 850 × 1950 mm |
78.7" × 33.5" × 77.8" / 2000 × 850 × 1950 mm |
| Net Weight |
463 lbs / 210 kg |
529 lbs / 240 kg |
617 lbs / 280 kg |
705 lbs / 320 kg |
| Shipping Weight |
529 lbs / 240 kg |
617 lbs / 280 kg |
705 lbs / 320 kg |
816 lbs / 370 kg |
Models are also available in 230V, AC, 50Hz configurations (model suffix -CB-B or -CB-A).
Performance Specifications
| Parameter |
AS-AHA-103-CA-B |
AS-AHA-133-CA-B |
AS-AHA-163-CA-B |
AS-AHA-193-CA-A |
| Power Consumption |
220 watt |
300 watt |
400 watt |
490 watt |
| Average Downflow Velocity |
64 fpm (0.325 m/s) |
60 fpm (0.30 m/s) |
60 fpm (0.30 m/s) |
60 fpm (0.30 m/s) |
| Exhaust Air Volume with Exhaust Canopy |
353 cfm (10 m³) |
459 cfm (13 m³) |
565 cfm (16 m³) |
671 cfm (19 m³) |
| Fluorescent Intensity |
> 1,000 lux |
> 1,000 lux |
> 1,000 lux |
> 1,000 lux |
| Fluorescent Lamp |
(2) T5, 21 watt |
(2) T5, 28 watt |
(2) T5, 35 watt |
(4) T5, 21 watt |
| UV Lamp |
(1) FL 20 watt |
(1) FL 30 watt, 254 nm |
(1) FL 40 watt, 254 nm |
(2) FL 20 watt, 254 nm |
| Noise Level |
< 58 dBA |
< 63 dBA |
< 60 dBA |
< 62 dBA |
| Window Operation |
9.8" / 25 cm |
8" / 20 cm |
9.8" / 25 cm |
9.8" / 25 cm |
| Room Height |
89.4" / 227 cm |
89.4" / 227 cm |
89.4" / 227 cm |
89.4" / 227 cm |
All models feature 70% recirculated / 30% exhausted airflow, average inflow velocity of 100 fpm (0.51 m/s), one supply HEPA filter and one exhaust HEPA filter at 99.99% @ 0.3 microns (Class H14), SUS#304 construction with 6 mm tempered window glass, EC brushless DC motor, and membrane push switches.
Available Options and Accessories
| Option |
Description |
3 ft. Model |
4 ft. Model |
5 ft. Model |
6 ft. Model |
| Exhaust Collar |
For connecting to building exhaust or remote blower |
HBE-103-AA-B |
HBE-133-AA-B |
HBE-163-AA-B |
HBE-193-AA- |
