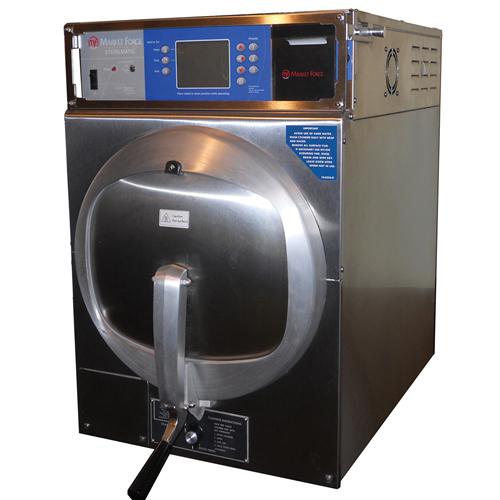

Digital Sterilmatic Sterilizer Autoclave
The Sterilmatic is a dependable automatic steam pressure sterilizer ideally suited for laboratories, veterinary clinics, processing plants and more. Available in domestic (STM-ED) and export (STM-EDX) models with programmable time, temperature and venting.
Models
- STM-ED (Domestic sterilizer with programmable time, temperature and venting)
- STM-EDX (Export model sterilizer with programmable time, temperature and venting)
Intended for commercial use only. Not for household use.
Standard Features
- LCD Display Touch Screen
- Temperature in °F or °C and Pressure in PSI or kPa
- Sterilizing Temperatures from 225-250°F (107-121°C)
- Choose from FAST or SLOW Exhaust
- Built-In USB port and RS232 serial port for printer
- Programable Controller to store multiple Temp/Time/Vent Settings
- Maintains Set Temperature with Built-In Microprocessor
- Electric Steam Trap
- Removable Pan Supports
- Manual fill
Operation
The sterilizing cycle is fully automatic with the time, temperature and venting controlled by the microprocessor based digital controller. The sterilizing temperature can be set anywhere in a range from 225°F (107°C) and 250°F (121°C).
The onboard data logger records and stores the time, temperature, and pressure for each sterilization cycle. The stored data can be either retrieved using a USB drive through the inbuilt USB port or printed out using an external printer. (Printer not included.)
Two exhaust speeds are also available, slow and fast, depending on sterilizing media.
Construction
Cylinder
Sterilizing cylinder is A.S.M.E. constructed and National Board Registered 3/16" (4.8mm) thick welded aluminum. Sterilizer exterior is made of polished stainless steel.
Interior dimensions of 16" (406mm) in diameter and 26" (660mm) long with a cubic content of 5,220 cubic inches (85 liters) and will have a door opening of 13-1/2" (343mm) wide and 11" (279mm) high.
Sterilizing compartment pan capacity:
- (3) 12" x 20" x 2-1/2" (305mm x 508mm x 64mm) or
- (2) 12" x 20" x 4" (305mm x 508mm x 102mm) or
- (1) 12" x 20" x 6" (305mm x 508mm x 152mm)
Door
The sterilizer door is self-sealing type which cannot be opened until steam pressure is completely exhausted. Door is 12 gauge stainless steel, removable for cleaning without tools. Door gasket is one-piece molded, replaceable without tools or cement.
Electrical Characteristics
| Model |
kW |
Hz |
1 Phase 208V |
1 Phase 220V |
1 Phase 240V |
3 Phase 208V |
3 Phase 240V |
3 Phase 220/380V |
3 Phase 240/415V |
| STM-ED |
9.3 |
60 |
45A |
- |
- |
26A |
- |
- |
- |
| STM-ED |
12.4 |
60 |
- |
- |
52A |
- |
30A |
- |
- |
| STM-EDX |
10.4 |
50 |
- |
48A |
- |
- |
- |
16A |
- |
| STM-EDX |
12.4 |
50 |
- |
- |
52A |
- |
- |
- |
18A |
Unit must be grounded. Main supply voltage fluctuations are not to exceed ± 10% nominal supply voltage.
Service Connections
- Drain - 1/2" (13mm) N.P.T. of 3/8" (10mm) OD copper
- Steam Exhaust Connection - 5/8" (16mm)
- Heat of Rejection (Heat Loss Into the Room) 6,000 BTU'S
Water Supply and Drain Specifications
Good quality water feed is the responsibility of the owner. Water quality must be within the following general guidelines:
| TDS: |
40-125 ppm |
| Hardness: |
35-100 ppm |
| pH: |
7.0 - 8.5 |
| Silica: |
<13 ppm |
| Chlorides: |
<25 ppm |
| Chlorine: |
<0.2 ppm |
| Chloramine: |
<0.2 ppm |
The best defense against poor water quality is a water treatment system designed to meet your water quality conditions. Appliance to be installed with backflow protection according to federal, state or local codes.
Important: Exhaust line must be vented to the outside to eliminate the exhaust steam and the accompanying noise from entering the room. Use 1/2" (13mm) copper tubing or suitable alternate. The overall height and length of the line should not rise more then 4' (1.2 meters) above the unit and exceed 15' (4.5 meters) with a minimum of bends. The line should slope downward after leaving the sterilizer in order to ensure condensate drainage.
Important: Failure to comply with this outline will affect the sterilization process.
When an exhaust condenser is supplied; the following services must be provided: 1/2" (13mm) cold water: 1" (25mm) waste: 115V electrical line.
Clearance from combustible and non-combustible construction should be a minimum of 4" in the back and 2" on the sides.
Shipping Weight
All Models - 150 lbs (68 kg)
Options and Accessories at Additional Cost
Sterilmatic trays (stainless steel, one piece, round cornered) - Perforated trays available in the following sizes:
- 12" x 20" x 2-1/2" (holds 3 of this size)
- 12" x 20" x 4" (holds 2 of this size + one 2-1/2" tray)
- 12" x 20" x 6" (holds one of this size + one 2-1/2" tray)
Sterilmatic wire basket (recommended for dressings) - Available in the following sizes:
- 12" x 20" x 2-1/2"
- 12" x 20" x 4"
Additional Options:
- Sterilmatic tubular leg stainless steel stand with shelf
- Second shelf for tubular leg stainless steel stand
- Exhaust condenser (for condensing exhaust steam when unit cannot be vented to outside)
