  2. Conradson Carbon Residue Tester for Petroleum

Conradson Carbon Residue Tester for Petroleum

Made in United States
Ships from United States
https://www.labequip.com/web/image/product.template/34816/image_1920?unique=2cae3cc

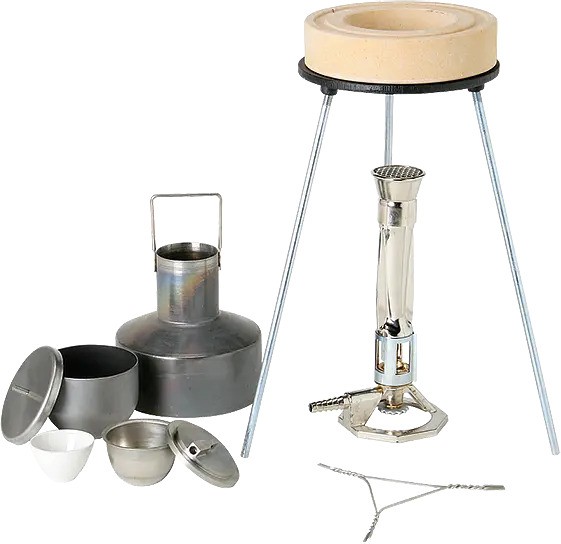

Tests petroleum products to determine the amount of carbon residue left after evaporation and pyrolysis of an oil and to indicate relative coke-forming propensities. Includes burner, tripod, refractory block, nickel chrome triangle, nickel crucible and cover, Skidmore crucible, porcelain crucible and monel hood and bridge. Component parts available separately.

The H-2495 Conradson Carbon Residue Apparatus is used to perform ASTM Standard Tests: D189 and D2416.

$ 730.00 730.0 USD $ 730.00

$ 1.00

Not Available For Sale

This combination does not exist.

Contact Us
Petroleum Testing

Terms and Conditions


Stock Number N2329
Model H-2495
Manufacturer Humboldt Manufacturing
Standard Test Methods
Product Brochure
Warranty 1 YEAR MANUFACTURER'S WARRANTY

COMES COMPLETE WITH:
H-5550 Meeker-style Burner
H-2416OX Tripod,
H-2505 Refractory Block Insulator Ring
H-24020 Nickel-Chrome Wire Triangle
H-2496 Carbon Residue Apparatus Hood
H-2498 Nickel Crucible and Cover,
H-2497 Skidmore Crucible and Cover
H-2494 Porcelain Crucible

OPTIONAL ACCESSORIES AT ADDITIONAL COST:
Porcelain crucible H-2494
Skidmore crucible and cover H-2497
Carbon residue apparatus hood H-2496
Nickle crucible with cover H-2498
Refractory block insulator ring H-2505

Elc N/A

Tag Open-Cup Flash Tester, Electric

For determination of flash points of liquids having a flash point up to 230°F (110°C) and cutback asphalts with flash points of less than 200°F (93°C).

Models Available

  • H-1990: Tag Open-Cup Flash Tester, Electric
  • H-1990.4F: Tag Open-Cup Flash Tester, 230V 50/60Hz
  • H-1995: Tag Open-Cup Flash Tester, Gas

Included Components

  • Pyrex cup
  • Base and liquid bath with overflow
  • Pivoting ignition taper with pilot light
  • Reference bead and thermometer holder

Additional Items Required (Sold Separately)

  • H-2610.9C thermometer
  • Leveling device
  • Draft shield

Specifications

Shipping Weight 9-1/2 lbs. (4.3kg)
Standards Met ASTM D1310, D3143; AASHTO T79

Replacement Parts

Description Model
Replacement Pyrex cup H-1990.1
Leveling device H-1990.2
Draft shield H-1990.3
Thermometer, range: 20 to 230°F H-2600.9F
Thermometer, range: -5 to 110°C H-2610.9C

Cleveland Flash and Fire Point Tester

The Cleveland Flash and Fire Point Tester uses natural gas for operation. Thermometer and cup platform positions are adjustable up and down on support rod.

Model

H-2100

Specifications

Fuel Type Natural Gas
Shipping Weight 17 lbs. (7.7kg)
Standards Met ASTM D92, D117; AASHTO T48

Replacement Parts

Description Model
Cast Iron, tripod base with Steel Support Rod H-21335
Support rod H-21370
Burner H-5550
Test burner H-2112
Flash-Point Platform H-2095P
Thermometer clamp H-2113
Cup platform H-2111
Flash cup H-2060
Thermometer H-2600.11F

Flash Cup

Model H-2060

Used with Flash Point Testers, H-2085, H-2095 and H-2100.

Conradson Carbon Residue Apparatus

Tests petroleum products to determine the amount of carbon residue left after evaporation and pyrolysis of an oil and to indicate relative coke-forming propensities.

Model

H-2495

Included Components

  • Burner
  • Tripod
  • Refractory block
  • Nickel chrome triangle
  • Nickel crucible and cover
  • Skidmore crucible
  • Porcelain crucible
  • Monel hood and bridge

Component parts available separately.

Specifications

Shipping Weight 7 lbs. (3.2kg)
Standards Met ASTM D189, D2416

Replacement Parts

Description Model
Porcelain crucible H-2494
Skidmore crucible and cover H-2497
Carbon residue apparatus hood H-2496
Nickel crucible with cover H-2498
Refractory block insulator ring H-2505
