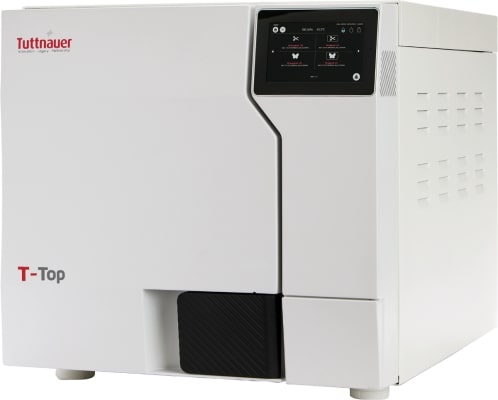

T-Top 21L Tabletop Medical Class B Autoclave
T-Top is a 21 liter tabletop autoclave developed specifically for medical and dental clinics of small to medium practices. Designed with simplicity and economy in mind, this tabletop autoclave covers the fundamental needs for general clinic sterilization with the aim of increasing the productivity of your practice.
T-Top offers universal capacity in an affordable and reliable solution for managing your daily practice sterilization process workload. The perfect balance between performance, ergonomics, technology and usability, resulting in a strong and efficient autoclave which perfectly meets the requirements of all standard practices.
Key Features
- User-friendly advanced technology with Wi-Fi connectivity and intuitive color touch screens
- Plug and play design - no dedicated installation connections needed, simply a power source
- Multicolor user-friendly touch screen with intuitive icons
- Compact and ergonomic design
- Easy to operate, maintain and use
- Internal memory - storing up to 500 cycles
- 2 USB Ports
- Wi-Fi connection and T-Connect software
- Click and go feature - just select the required program and press start
Traceability and Connectivity
- Advanced technology that provides real-time data intelligence
- Monitor devices remotely and download device data
- Remotely access cycle history, get notifications and alerts
- Technicians and service centers can remotely analyze autoclaves, diagnose and resolve problems
- Paperless documentation
- Advanced documentation and traceability options, including barcode
- Personalized username and password
- Sophisticated data analysis capabilities with RPCR software
- Optional printer for printouts and saving hard copies
T-Connect Cloud Based IoT Solution
T-Top devices feature the exclusive and technologically advanced T-Connect, a cloud based IoT solution for your sterilization center. The software provides clinics with data intelligence in real-time, accessible from anywhere, anytime, in a secure way.
Connect autoclaves, washers and more with Wi-Fi or the T-Connect gateway, and use the advanced T-Connect software to improve workflow efficiency and results. Benefit from paperless documentation, device diagnostics, monitoring and troubleshooting.
T-Connect Benefits:
- Complete device visibility at a click
- Remote support from service provider
- Shorter device downtime
- Connectivity by PC, tablet and smartphone
- Remotely access and download cycle history, get notifications and alerts
- Technicians and service centers can remotely analyze autoclaves, diagnose and resolve problems
- Suggestions on how to resolve the problem (video/instructions)
- Automatic notification to replenish consumables, remote diagnostics
- Data is safe
- Easy to use
- Wired connection for non Wi-Fi enabled devices using T-Connect gateway
Safety and Regulation
- Meets strictest international standards
- Programming and customization functions
- Specially designed user interface to speed up and optimize daily workload
- Time saver setting to set tests and sterilization cycles to start at any time
Technical Specifications
| Specification |
Value |
| Chamber size |
249 (Ø) x 450 (D) mm |
| Volume |
21L |
| Usable chamber space |
75% (~17L) |
| Overall dimensions |
585 (D) x 462 (W) x 460 (H) mm |
| Max # of trays |
5 |
| Tray dimensions |
375 (D) x 185 (W) x 15 (H) mm |
| Weight |
45 kg |
| Connections |
2 USB ports, Wi-Fi |
| Water filling |
Manual |
Sterilization Cycle Programs
| Program Name |
Sterilization Time |
Load Type |
Type of Use |
| Unwrapped 134°C |
4 min |
Solid / porous load |
For immediate use |
| Wrapped 134°C |
4 min |
Solid / porous load |
For storage |
| Unwrapped 121°C |
20 min |
Solid / porous load |
For immediate use |
| Wrapped 121°C |
20 min |
Solid / porous load |
For storage |
| Prion 134°C |
18 min |
Solid / porous load |
For storage |
Test Cycles
- Bowie and Dick/Helix/Vacuum test
- Chemical indicator in a product challenge device
- Periodic testing as referred to in ISO 17665-1
Standards and Regulations
Meets the following international standards:
| Standard/Regulation |
Description |
| CE MDR |
Certificate number 3903015CE01 valid until 01-03-2028 |
| Electromagnetic compatibility |
IEC 61326-1 |
| Electrical safety |
IEC 61010-1, 61010-2-040 |
| Verification & validation functional tests |
EN 13060 |
| Software validation |
EN 62304, FDA guidance |
| Quality Management System |
ISO 9001:2015, ISO 13485:2016 |
| Pressure Vessel |
PED: 2014/68/EU |
Available Sterilization and Disinfection Consumables
Chemical Indicators:
- WTL198-0053 - Indicator tape for steam
- WTL198-0087 - Flat rolls for steam sterilization
- WTL198-0055 - Indicator for steam
- WTL198-0113 - Pouches for steam sterilization
- WTL198-0068 - Indicator for steam
- WTL 198-0062 (18 min) - Indicators for steam
- WTL 198-0063 (3.5 min) - Indicators for steam
Biological Indicators:
- WTL198-0056 - Steam biological indicator
- PLZ198-0005 - Incubator
- WTL198-0058 - Steam biological indicator
- WTL198-0072 - Steam biological indicator
- WTL198-0067 - Steam biological indicator
- WTL198-0057 - Fluorescence incubator
Fluorescence Super and Ultra Rapid readout and conventional 24-hour readout options available.
Complementary Products
- Water Distiller: Small enough to fit on a counter; smart enough to distill water for sterilization
- Sealing Machine: To ensure effective, quality and long-lasting sterilization until the instruments are reused
- Ultrasonic Cleaner: This quiet yet highly effective cleaner uses soundwaves to rid instruments of hard deposits
- Tiva 2 Washer Disinfector: Provides a flexible turnkey solution for washing, disinfecting and drying diverse medical instruments for a complete decontamination cycle
- Tiva 8 Washer Disinfector: Designed to simplify your work by eliminating manual washing and reducing your manpower
- T-System Clean: Tablets composed of chemicals that specifically designed for cleansing and removal of water deposits, oxides and other sediments in the piping and the chamber of steam sterilizers
