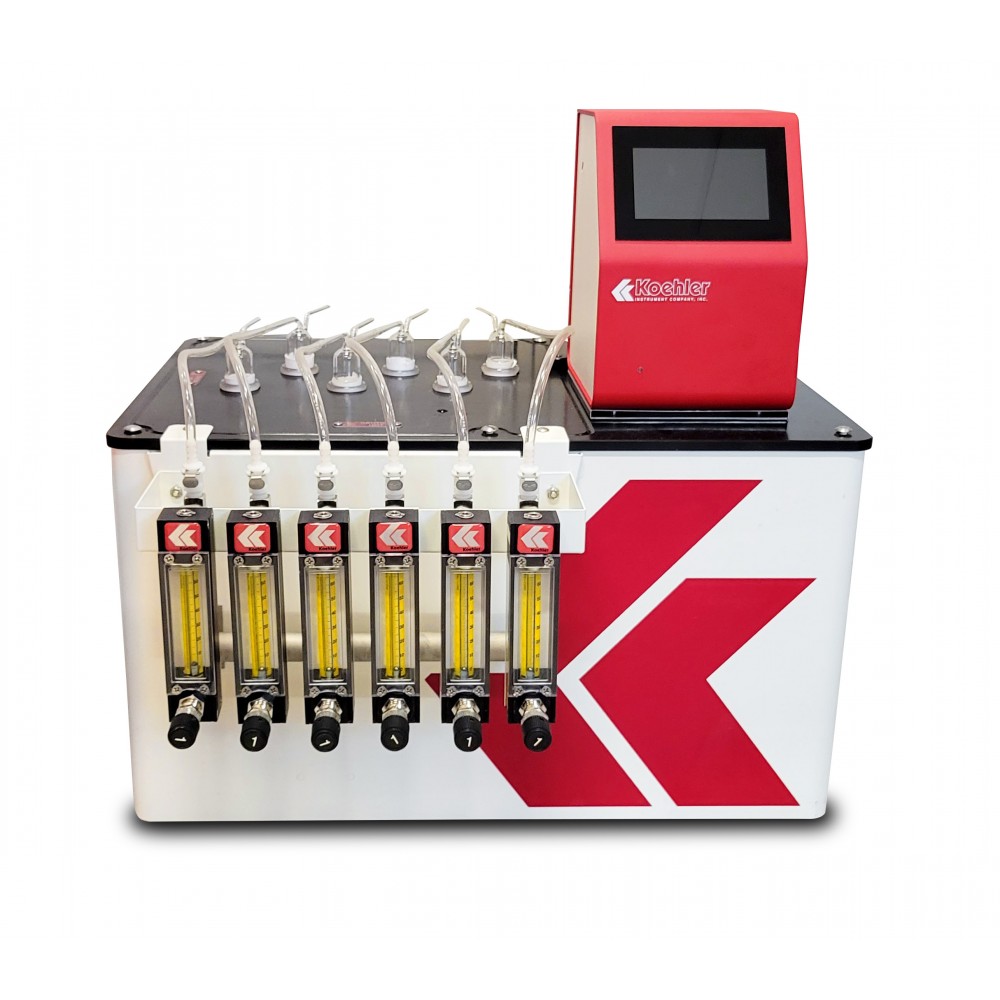

Petroleum Oxidation Stability Tester

Made in United States
Ships from United States
https://www.labequip.com/web/image/product.template/34738/image_1920?unique=2cae3cc

Determines oxidation stability of mineral transformer oils by measuring the amount of sludge and acid formed under prescribed accelerated aging conditions

Capacity for 6 samples
Digital temperature control with digital display and over-temperature cut-off

Constant temperature oil bath for testing oxidation stability of mineral insulating oils. Immerses six oil receptacles at the required depth per ASTM specifications at 110°C ± 0.5°C, and controls oxygen flow to each sample at the rate of 1L/h ± 0.1L/h through six independent flowmeters mounted on a common manifold. Insulated double-wall stainless steel bath has microprocessor temperature control with °C/°F switchable digital setpoint and display. Operator and equipment are protected by an overtemperature control circuit which automatically interrupts power to the unit when bath temperature exceeds a programmed cut-off point. Order bath thermometer drying tower and catalyst separately.

SPECIFICATIONS:
Conforms to the specifications of: ASTM D2440
Testing Capacity: Six (6) samples
Maximum Temperature: 230°F (110°C)
Temperature Control Stability: ±0.09°F (± 0.05°C)
Heater: 1000W
Bath Medium: 7.2 gal (27.2L) white technical oil

$ 12,120.00 12120.0 USD $ 12,120.00

$ 1.00

Not Available For Sale

This combination does not exist.

Contact Us
Petroleum Testing

Terms and Conditions


Stock Number N2285
Model K64100 / K64190
Manufacturer Koehler Instrument
Standard Test Methods
Product Brochure
Warranty 1 YEAR MANUFACTURER'S WARRANTY

OPTIONAL ACCESSORIES AVAIABLE AT ADDITIONAL COST: - K12130 Copper Catalyst Coils - Sealed in a glass jar with a nitrogen atmosphere. Pack of 24 (12 sets)
- 332-005-010 Drying Tower 250mL with ground glass stopper and side tubes
- 332-005-011 Glass Filter Crucible
- 250-000-95C ASTM 95C Thermometer - Range: 100 to 130°C
- 355-001-001 White Technical Oil - 1 gal container
- 355-001-003 White Technical Oil - 5 gal container

Elc NO
Volts Specify 115 or 230
Hertz 50/60

Oxidation Stability of Mineral Insulating Oils

Test Method

Determines oxidation stability of mineral transformer oils by measuring the amount of sludge and acid formed under prescribed accelerated aging conditions.

Oxidation Stability Bath

Constant temperature oil bath for testing oxidation stability of mineral insulating oils. Immerses six oil receptacles at the required depth per ASTM specifications at 110°C ± 0.5°C, and controls oxygen flow to each sample at the rate of 1L/h ± 0.1L/h through six independent flowmeters mounted on a common manifold. Insulated double-wall stainless steel bath has microprocessor temperature control with °C/°F switchable digital setpoint and display. Operator and equipment are protected by an overtemperature control circuit which automatically interrupts power to the unit when bath temperature exceeds a programmed cut-off point.

Features

  • Conforms to ASTM D2440 specifications
  • Digitally controlled temperature control with overtemperature cut-off
  • Six-sample testing capacity

Specifications

Parameter Value
Conforms to the specifications of ASTM D2440
Testing Capacity Six (6) samples
Maximum Temperature 230°F (110°C)
Temperature Control Stability ±0.09°F (± 0.05°C)
Heater 1000W
Bath Medium 7.2 gal (27.2L) white technical oil
Electrical Requirements 115V 60Hz, Single Phase, 10A
220-240V 50/60Hz, Single Phase, 5A
Dimensions lxwxh, in.(cm.) 22x21.3x21.5 (55.9x54.1x54.6)

Ordering Information

Catalog No. Description
K64100 Oxidation Stability Precision Bath, 115V 60Hz
K64190 Oxidation Stability Precision Bath, 220-240V 50/60Hz

Accessories

Catalog No. Description
K12130 Copper Catalyst Coils
332-005-011 Glass Filter Crucible
250-000-95C ASTM 95C Thermometer
355-001-001 White Technical Oil, 1 gal container
355-001-003 White Technical Oil, 5 gal container
