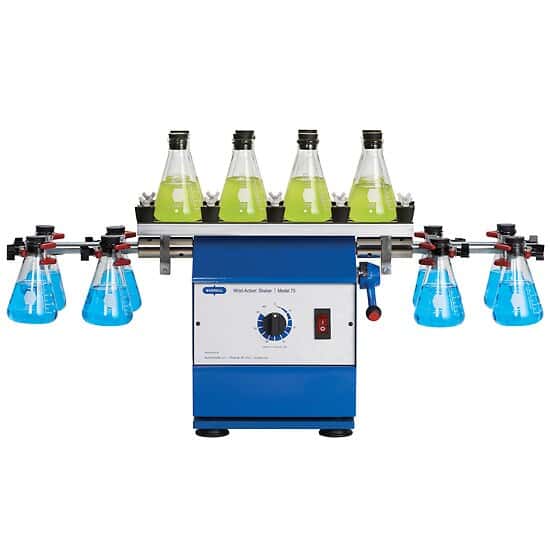

Wrist-Action Shaker

Made in United States

Ships from United States

***THIS IS FOR A 2 CLAMP MODEL (075-775-04-19) WHICH HOLDS 4 FLASKS***

The Burrell Wrist Action Shaker duplicates the swirling action of hand mixing. The adjustment arm controls the amplitude and agitation of shaking from 0 to 15 degrees arc. Shaker operates at 385 oscillations per minute (±10%). The Shaker has a built in timer to operate from 1 to 60 minutes or can be set at continuous operation.
Custom clamps and accessories are available supporting a variety of flasks, funnels, bottles, and specimen jars to meet the most demanding laboratory requirements.
Rugged construction, with timer, rated for continuous use
Shaking speed action is variable, simulating a snap-wrist motion for a swirling effect, but the oscillations are constant at 380 to 390 per minute
Degree of agitation, gentle to violent, is controlled by an adjustable lever with dial graduated from 1 to 10
Power unit has constant-speed motor and built-in timer, range to 60 minutes in 1-minute intervals
All are CSA approved
Side sleeves have interchangeable side arm shafts 19 mm diameter and clamps. Erlenmeyer flasks from 125 to 1,000 mL capacity can be shaken at one time without need for balancing. Full torque of the 1/8 HP (93 W) motor is always applied to the oscillating mechanism regardless of speed setting. Side arm shafts take 2-place clamps with slip-on fittings which provide capacity of 4 to 16 flasks, suitable bottles, test tubes, etc., with minimum diameter of 10 mm. Platform for attachment to top takes 6 to 10 Erlenmeyer flasks up to 5,000 mL , also sputum bottles, etc. Platform clamps of rubber slide in parallel grooves.

PLEASE REQUEST PRICING ON THE SET UP YOU WANT BELOW:

MODEL # CLAMPS # VESSELS HELD
AA 2 4
BB 4 8
CC 6 12
DD 8 16
FF 12 24

$ 4,385.00 4385.0 USD $ 4,385.00

$ 1.00

This combination does not exist.

Add to Inquiry List

General Testing

Terms and Conditions

Stock Number	N2281
Model	75-AA (075-775-04-19)
Manufacturer	Burrell
Product Brochure	n2281.pdf
Warranty	2 YEAR MANUFACTURER'S WARRANTY

COMES COMPLETE WITH:
enough clamps to accommodate its full capacity of vessels

OPTIONAL ACCESSORIES AVAIABLE AT ADDITIONAL COST:
Top Platform
Top Platform Clamps
Finger SUREGRIP Clamp
Beverage Bottle Clamp, 4 Place
Beverage Bottle Clamp Adapter
Multi SUREGRIP Clamp, 4 Place
Multi SUREGRIP Clamp, 8 Place
500ml SUREGRIP Volumetric Clamp
1000ml SUREGRIP Volumetric Clamp
Custom Bottle Clamps
Programmable Digital Timer
Can Clamp, 1 Place
Can Clamp Top Adapter
Can Clamp, 4 Place
Side arm shafts
Wishbone Clamp

Elc	CSA
Outside	17.5 x 17.5 x 12 in.H
Volts	Specify 115 or 230
Hertz	50/60

Wrist-Action® Laboratory Shaker Models 75, 85, 95

The Wrist-Action® Laboratory Shaker line offers professional-grade agitation solutions for laboratory applications. Available in three models, these shakers simulate the back and forth action of the human wrist to provide gentle to aggressive agitation. Each model features precise control systems and can be configured with various clamp positions to accommodate different vessel requirements.

Available Models

Model 75 - Standard Wrist Action® Shaker

The Model 75 is designed to operate at 385 oscillations per minute ± 10%. The adjusting lever achieves an action from a gentle swirl to aggressive agitation by increasing the angle of movement from 1 degree to 15 degrees. Though the actual oscillation speed does not vary, the distance through which the vessels move with each oscillation increases with the change in lever arm setting from 1–15.

385 oscillations per minute ± 10%
Adjustable angle of movement: 1 to 15 degrees
Built-in timer: continuous or 0 to 60 minutes
Recommended maximum load: 10 lbs
Available in 115 V/60 cycle and 220 V/50 cycle
220 V shakers are CE approved and comply with UL/CSA 61010-1 requirements, EN 61010-1 safety requirements, and EN 61326-1: 2006 electrical equipment for measurement, control and laboratory use EMC requirements

Model 85 - Simethicone Testing Shaker

The Model 85 has been modified to meet the requirements for Simethicone testing as described in the current edition of the U.S. Pharmacopoeia. The testing employs a radius of 13.3 ± 0.4 cm (measured from center of shaft to center of bottle), and shakes through an arc of 10 degrees (lever arm set at "~5") at a frequency of 300 ± 10% strokes per minute.

300 oscillations per minute ± 10%
Radius of 13.3 ± 0.4 cm (center of shaft to center of bottle)
Arc of 10 degrees
Built-in timer: continuous or 0 to 60 minutes
Recommended maximum load: 10 lbs
Available in 115 V/60 cycle and 220 V/50 cycle
Meets U.S. Pharmacopoeia standards for Simethicone Foaming Solution Test

Model 95 - Variable Speed Wrist Action® Shaker

The Model 95 Variable Speed Wrist Action® Shaker is designed to operate from 0 to 450 oscillations per minute. The angle of shaking is adjustable from 0–15 degrees of arc. Oscillations can be changed by rotating the variable speed control knob from 0 to 450 oscillations per minute.

Variable speed: 0 to 450 oscillations per minute
Adjustable angle: 0 to 15 degrees of arc
Built-in timer: continuous or 0 to 60 minutes
Maximum recommended load: 10 lbs
Can operate from 80/240 volts and at 50/60 cycle

Control Features

Timer Control

All models feature a timer located in the center of the control panel that allows for continuous or preset timed operations. The timer can be set for continuous shaking or from 0 minutes to 60 minutes.

On/Off Switch with Overload Protection

All models include a red On/Off rocker switch that also serves as an overload protection device. Should the shaker malfunction, the unit will shut off automatically.

Lever Arm Control

The lever arm controls the amplitude of agitation. Units include a molded rubber locking tool (brake) to prevent creeping of the lever arm.

Model 75 Configurations

Catalog #	Model	Number of Clamp Positions	Voltage	Cycle
075 775 00 19	OO	0	115	60
075 775 00 36	OO	0	220	50
075 775 04 19	AA	4	115	60
075 775 04 36	AA	4	220	50
075 775 08 19	BB	8	115	60
075 775 08 36	BB	8	220	50
075 775 12 19	CC	12	115	60
075 775 12 36	CC	12	220	50
075 775 16 19	DD	16	115	60
075 775 16 36	DD	16	220	50
075 775 20 19	EE	20	115	60
075 775 20 36	EE	20	220	50
075 775 24 19	FF	24	115	60
075 775 24 36	FF	24	220	50
075 765 08 19	T	0	115	60
075 765 08 36	T	0	220	50
075 765 12 19	AT	2	115	60
075 765 12 36	AT	2	220	50
075 765 16 19	BT	4	115	60
075 765 16 36	BT	4	220	50
075 765 20 19	CT	6	115	60
075 765 20 36	CT	6	220	50
075 765 24 19	DT	8	115	60
075 765 24 36	DT	8	220	50

Model 85 Configurations

Catalog #	Model	Number of Clamp Positions	Voltage	Cycle
075 785 00 19	OO	0	115	60
075 785 00 36	OO	0	220	50
075 785 04 19	AA	4	115	60
075 785 04 36	AA	4	220	50
075 775 08 19	BB	8	115	60
075 775 08 36	BB	8	220	50

Model 95 Configurations

Catalog #	Model	Number of Clamp Positions	Voltage	Cycle
075 795 00 19	OO	0	115	60
075 795 00 36	OO	0	220	50
075 795 04 19	AA	4	115	60
075 795 04 36	AA	4	220	50
075 795 08 19	BB	8	115	60
075 795 08 36	BB	8	220	50
075 795 12 19	CC	12	115	60
075 795 12 36	CC	12	220	50
075 795 16 19	DD	16	115	60
075 795 16 36	DD	16	220	50
075 795 20 19	EE	20	115	60
075 795 20 36	EE	20	220	50
075 795 24 19	FF	24	115	60
075 795 24 36	FF	24	220	50
075 795 50 19	T	0	115	60
075 795 50 36	T	0	220	50
075 795 54 19	AT	2	115	60
075 795 54 36	AT	2	220	50
075 795 58 19	BT	4	115	60
075 795 58 36	BT	4	220	50
075 795 62 19	CT	6	115	60
075 795 62 36	CT	6	220	50
075 795 66 19	DT	8	115	60
075 795 66 36	DT	8	220	50

Included Items

Basic shaking unit
Pair of side-arm shafts
Clamps (in accordance with order)
Allen wrench for attachment of side-arms
Molded stopper used as a lever arm brake
Power cord

Available Accessories

Finger SUREGRIP™ Clamps (Item #075-777-00-00)

Features a pair of three-prong, vinyl-sleeved grippers that handle almost any size or shape flask, bottle, or container up to 250ml. Positioning along the shaft is fully adjustable to accommodate a variety of vessel sizes and shapes.

Basic Shafts (Item #075-778-02-00)

Sold in pairs and used for shaker models AA, BB, CC, DD, EE, and FF. Can accommodate from 4 vessels up to 24 vessels. For shaker models EE and FF, pillar blocks are also recommended for extra support.
