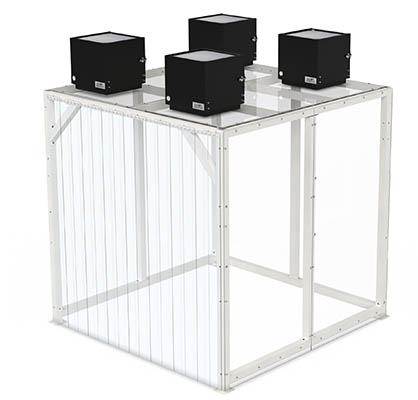

Walk In Fume Hood

Quick Ship Walk-in Hoods provide an off-the-shelf economical solution for fume control of large equipment or to create a mini “dirty room”. Unlike the industry standard lead time of 4-6 weeks, these walk-in hoods are ready to ship in 5 business days.

Due to the in-stock availability, Quick Ship Walk-in Enclosures offer less options but still accommodate popular customer selections. FOR OTHER SIZES, PLEASE CONTACT YOUR SALES REP.

Quick Ship Walk-in Hoods create an enclosed 8’ x 8’ x 8’ negative-pressure area around oversized equipment to isolate the application from the rest of the room.
These systems use attached filtration systems (option of 1-4) to remove most airborne contaminants or attach ductwork and blower (not included) to the unit’s exhaust collars (option of 1-4) for exhausting contaminants externally.
Your Labequip application specialist can help you determine the required CFM and blowers or exhaust collars ideal for your application.
Quick Ship Walk-in Hoods offer an easy-to-setup fume control solution for a variety of industrial and laboratory applications. Many production plants utilize large machinery that emits fumes and particulate causing respiratory concerns for nearby employees and overall shop safety. Similarly, laboratories work with large equipment that produce chemical fumes and perform tasks that cannot be easily contained in a standard benchtop fume hood.
Quick Ship Walk-in Hoods can help these facilities easily contain most fumes and particulate providing improved respiratory safety for the operator and nearby employees.
Quick Ship Walk-in Hoods are constructed of a powder-coated heavy-duty steel frame and offer a few options to best suit your application’s needs.

Options include:
• Ductless or Ducted:
— Ductless: option of 1 - 4 air cleaners
— Ducted: option of 1 - 4 exhaust collars
Dimensions: 8’ wide x 8’ deep x 8’ tall
Frame Material: 3” x 3” powder-coated steel structural tubing
Wall Material: Hard Walls (1/4” clear twinwall polycarbonate) OR clear anti-static vinyl curtains
Air Cleaner: Quantity Options Choice of 1, 2, 3, or 4 air cleaner(s)
Airflow Options: Depends on air cleaner model - up to 350CFM/700CFM/900CFM per unit
Main Filter Options:
- HEPA (up to 99.97% efficient on particles down to 0.3 microns)
- ASHRAE (up to 95% efficient on particles down to 0.5 microns)
- Activated Carbon
- Specialty-blended filter media (i.e. acid gas, mercury, aldehyde, and
ammonia)

Fully Custom Walk-in Hoods are also available as well as Walkin Clean Rooms. Please contact your Labequip sales rep for more information.
